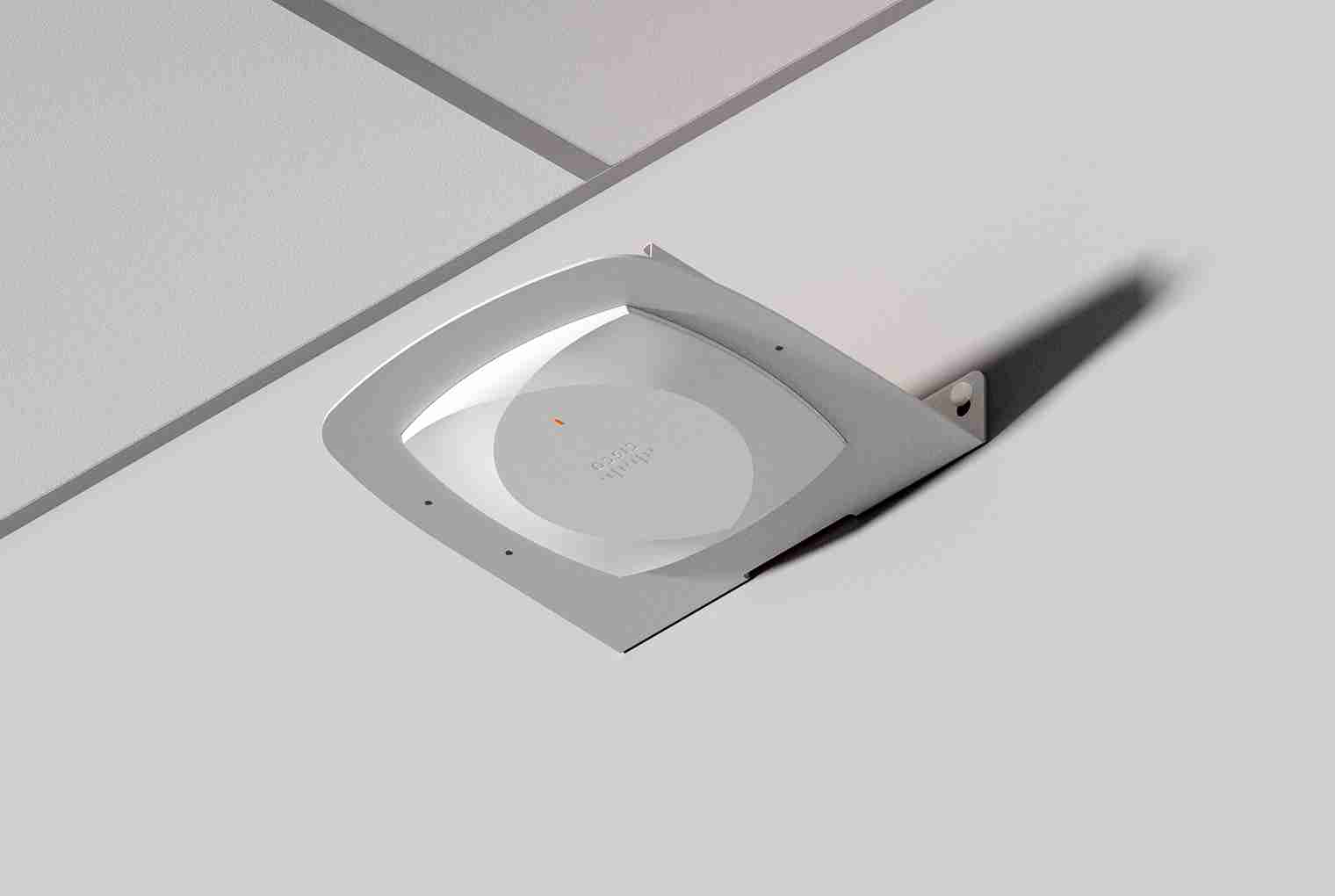

Oberon H-Plane Right-Angle Surface Mounts 1006
Explore Sizes & Options
| Add to Cart Add | ||||
|---|---|---|---|---|
1006-ARAP505 | Aruba | Aruba AP-505 | $95.00 | |
1006-ARAP735 | Aruba | Aruba AP-735 | $105.00 | |
1006-COAP9136 | Cisco | 9136i | $105.00 | |
1006-ARAP655 | Aruba | Aruba AP-655 | $105.00 | |
1006-CW9166 | Cisco | CW9164i, CW9166i | $105.00 | |
1006-CCOAP3800 | Cisco | 3800i | $105.00 | |
1006-COAP9115 | Cisco | 9115i | $40.00 | |
1006-CW9162 | Cisco | CW9162i | $105.00 | |
1006-JNAP45 | Juniper | Juniper AP45 | $105.00 | |
1006-CW9172 | Cisco | Cisco CW9172I | $105.00 | |
1006-ARAP555 | Aruba | Aruba AP-555 | $105.00 | |
1006-JNAP47 | Juniper | Juniper AP47 | $105.00 | |
1006-ARAP515 | Aruba | Aruba AP-515 | $95.00 | |
1006-ARAP535 | Aruba | Aruba AP-535 | $95.00 | |
1006-COAP9130 | Cisco | 9130i | $95.00 | |
1006-CW9176 | Cisco | Cisco CW9176I | $105.00 | |
1006-EXAP5020 | Extreme | Extreme AP5020 | $115.00 | |
1006-UBI | Ubiquiti | Ubiquiti UAP-U6-PRO, Ubiquiti UAP-U6-LR, Ubiquiti UAP-U6-ENTERPRISE, Ubiquiti UAP-U7-PRO | $60.00 | |
1006-ARAP615 | Aruba | Aruba AP-615 | $105.00 | |
1006-CW9178 | Cisco | Cisco CW9178I | $105.00 |
Product Description
Many Wi-Fi and Small Cell AP manufacturers recommend that their APs be mounted in a horizontal orientation for optimal wireless coverage. In locations where the APs are to mounted on the wall, Oberon® H-Plane™ Right-Angle Surface Mounts 1006 permit the AP to be mounted in the preferred horizontal orientation. With the 1006 series, the AP is partially recessed into the right-angle bracket, exposing only the antenna face of the AP, providing for the ideal combination of aesthetics and wireless coverage. Available for leading AP makes and models.
Key Features and Benefits
- Conveniently and aesthetically install APs from leading vendors on walls
- Enables APs to be mounted in preferred horizontal orientation
- AP is partially recessed into bracket, providing aesthetic appearance
- Can be mounted directly over telecommunications outlet
- AP installs without lose hardware
Technical Specifications
- Design: Right-angle mounting bracket for securing APs on walls. Designed to mount the AP in the preferred horizontal orientation. Designs available for leading AP makes and models (see Styles table)
- AP is partially recessed into bracket, providing aesthetic appearance
- AP can be secured using manufacturer's locking features
- Construction: 10 Ga. white powder-coated aluminum
- Size: See Styles Table
- Made in the USA
Product Includes:
- (1) Right-Angle Bracket
- (1) AP mounting plate
- (2) hollow tip wall anchors
- (2) white plastic bolt head covers
- (1) Installation instructions
Product Information
Key Benefits of the 1006 Right‑Angle Surface Mount
The Oberon® 1006 series delivers a dedicated solution for mounting wireless access points in a horizontal orientation. This right‑angle surface mount combines a clean aesthetic with optimal RF performance, ensuring reliable coverage across dense environments. By using the 1006 surface mounts, installers achieve a professional look while preserving antenna alignment. Constructed from 10 ga white powder‑coated aluminum, the bracket offers durability and corrosion resistance suitable for demanding data‑center conditions. The design partially recesses the access point, exposing only the antenna face for an unobtrusive appearance. This right‑angle mount reduces visual clutter and simplifies cable management. Installation is straightforward: the bracket secures directly to a wall or over a telecommunications outlet, eliminating the need for additional hardware. The horizontal mounting position improves signal propagation compared with traditional vertical installs. Included hardware--wall anchors, bolt‑head covers, and clear instructions--facilitates rapid deployment. The 1006 H‑Mounts are compatible with leading vendors such as Aruba, Cisco, Juniper and Ubiquiti, providing a universal mounting platform for diverse Wi‑Fi ecosystems. Each model aligns with the manufacturer's locking features, ensuring a secure fit without sacrificing access point functionality. This flexibility supports multi‑vendor environments common in enterprise and hyperscale facilities. All 1006 brackets are made in the United States and backed by Chatsworth Products' global support network. Customers benefit from rapid customization options and access to comprehensive documentation through CPI's digital tools. Choosing the Oberon® 1006 right‑angle surface mount streamlines projects and enhances long‑term reliability.
