Oberon Hi-Point Open-Ceiling and Surface Mounts 1312
Explore Sizes & Options
| Add to Cart Add | ||||||||
|---|---|---|---|---|---|---|---|---|

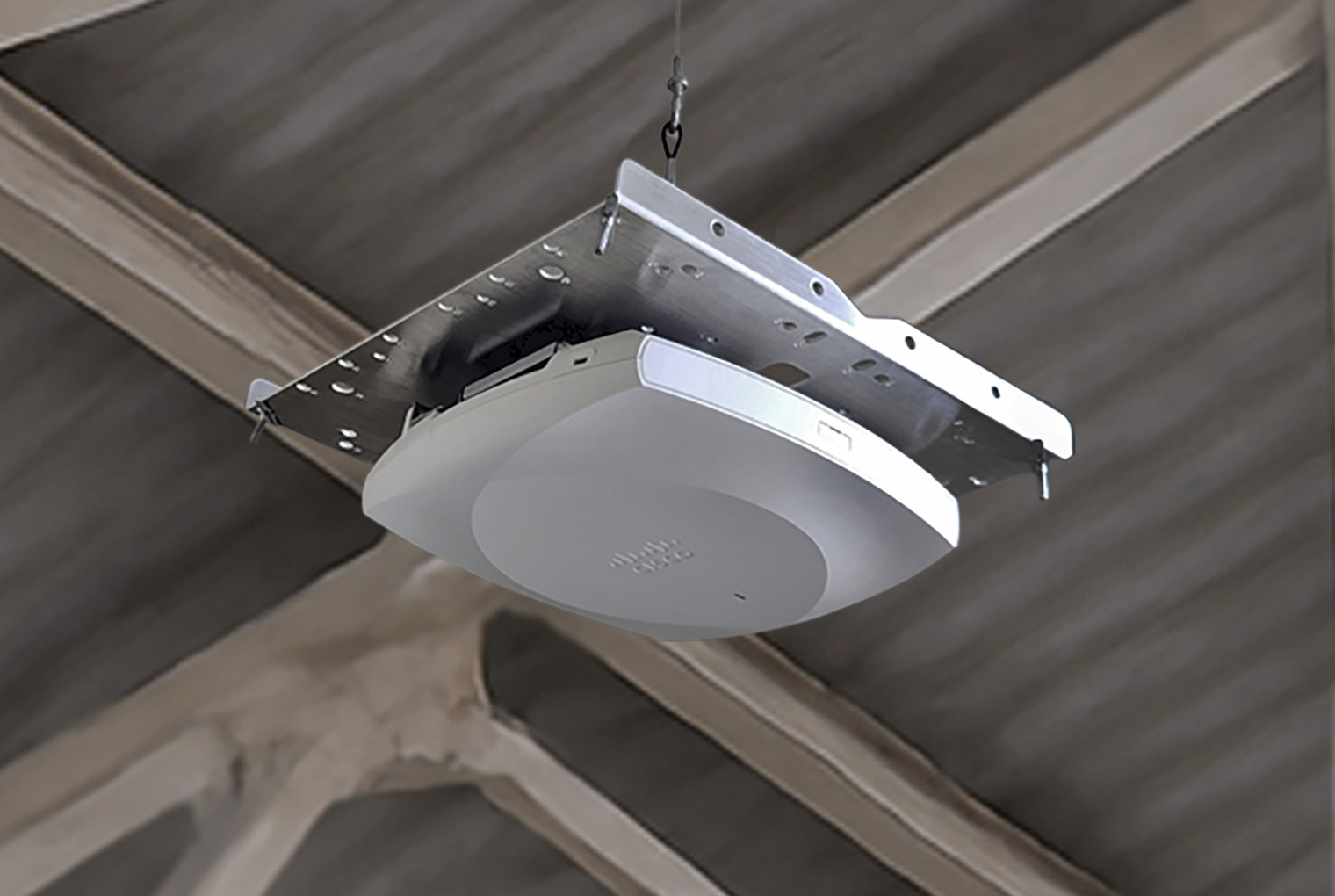

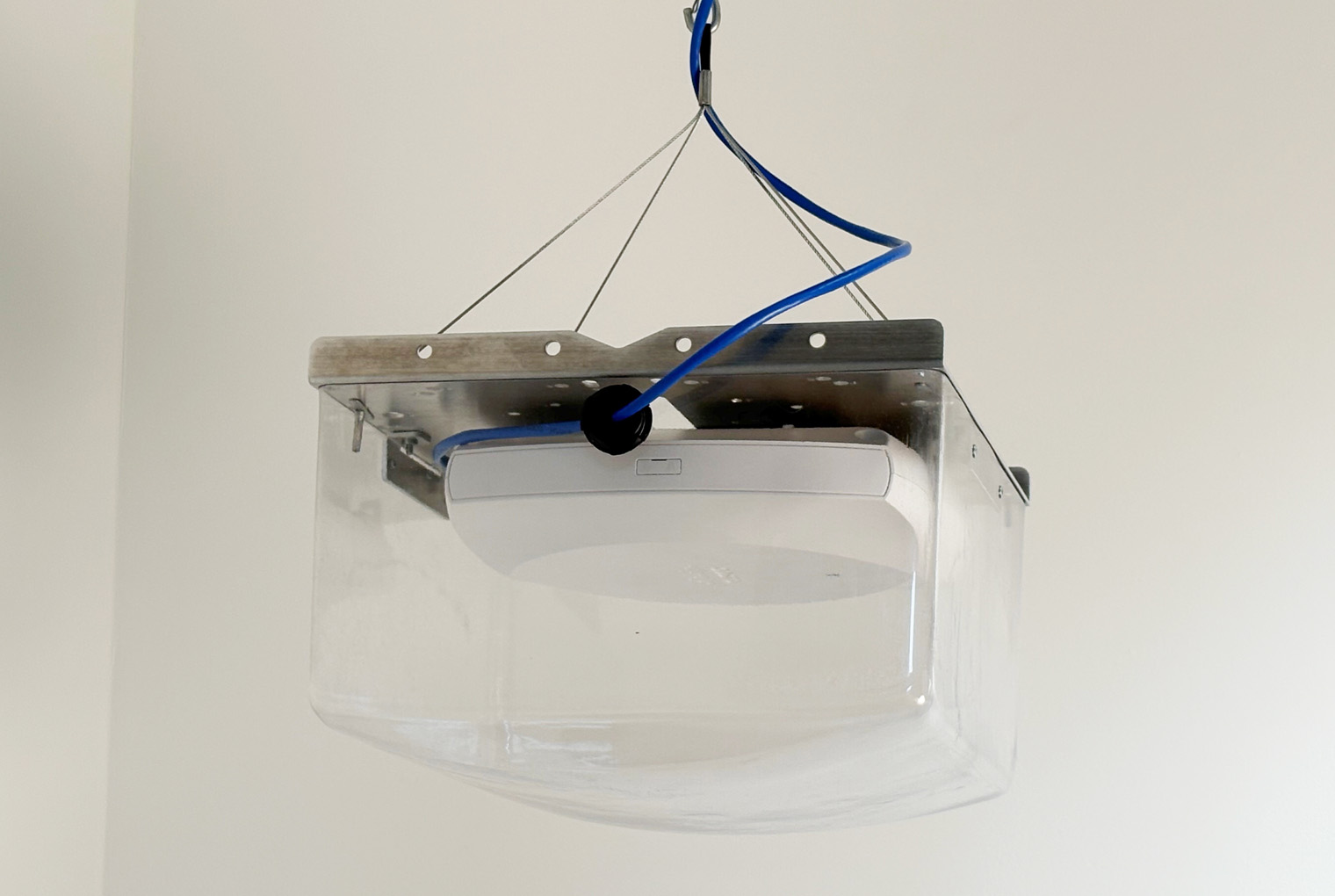

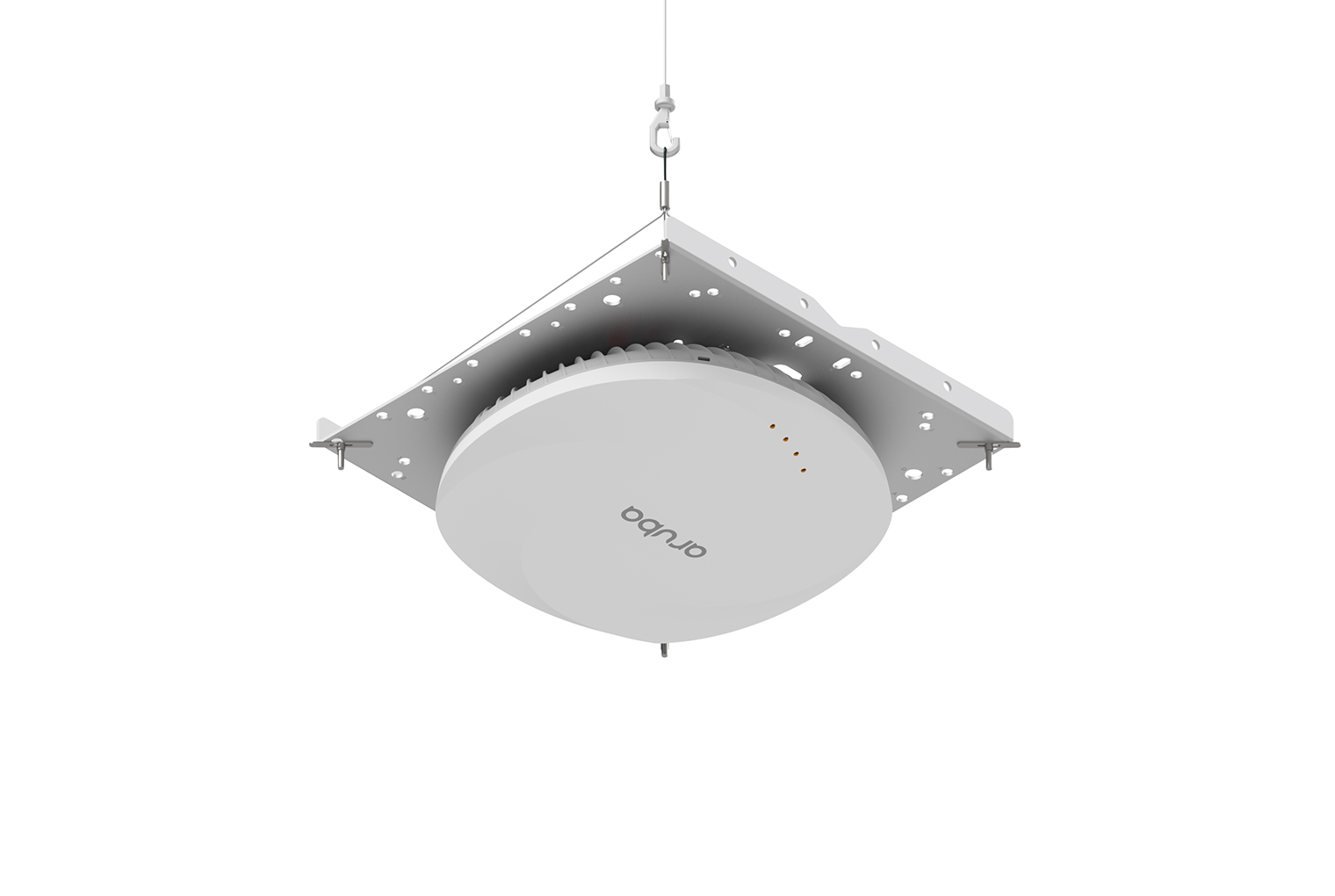

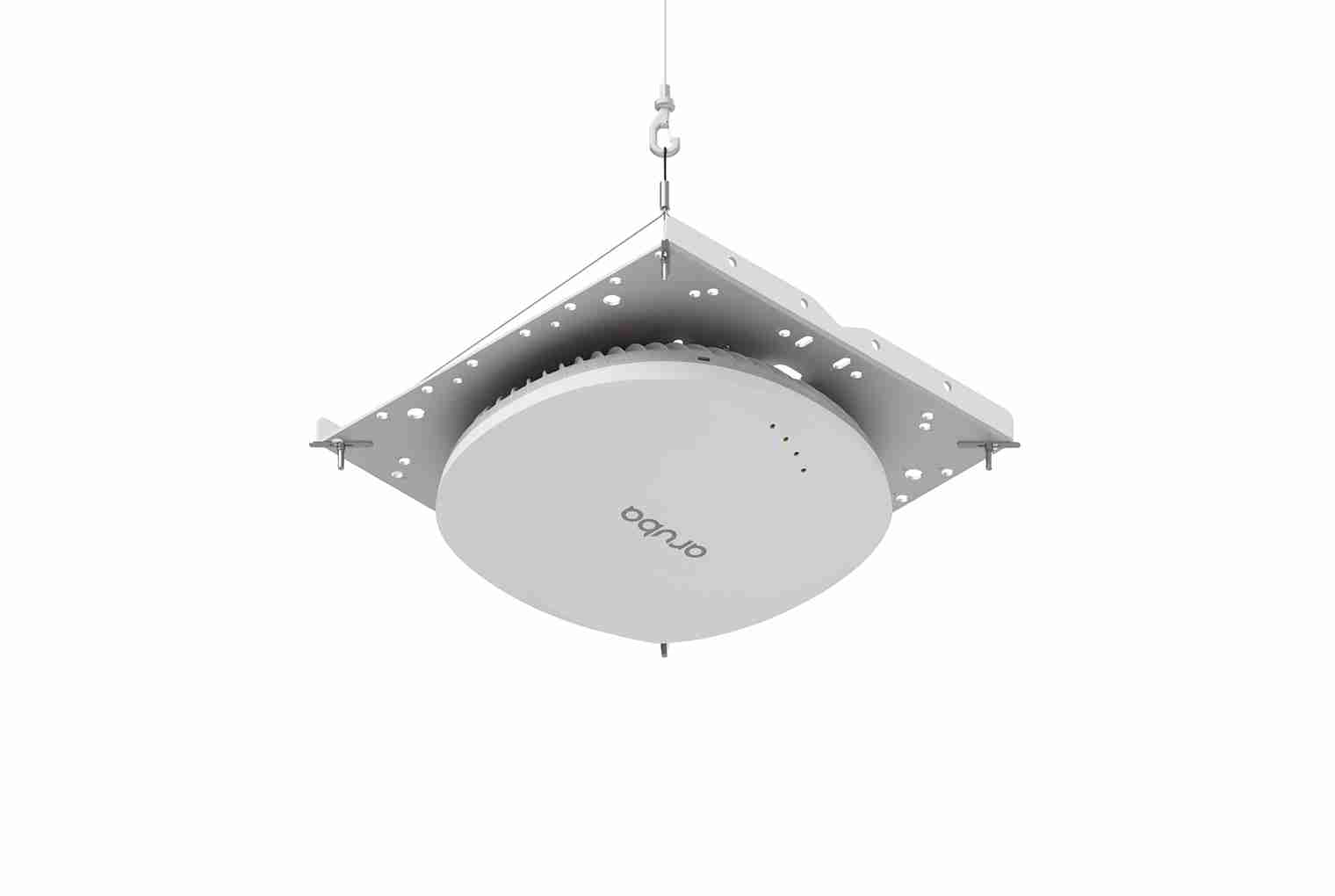

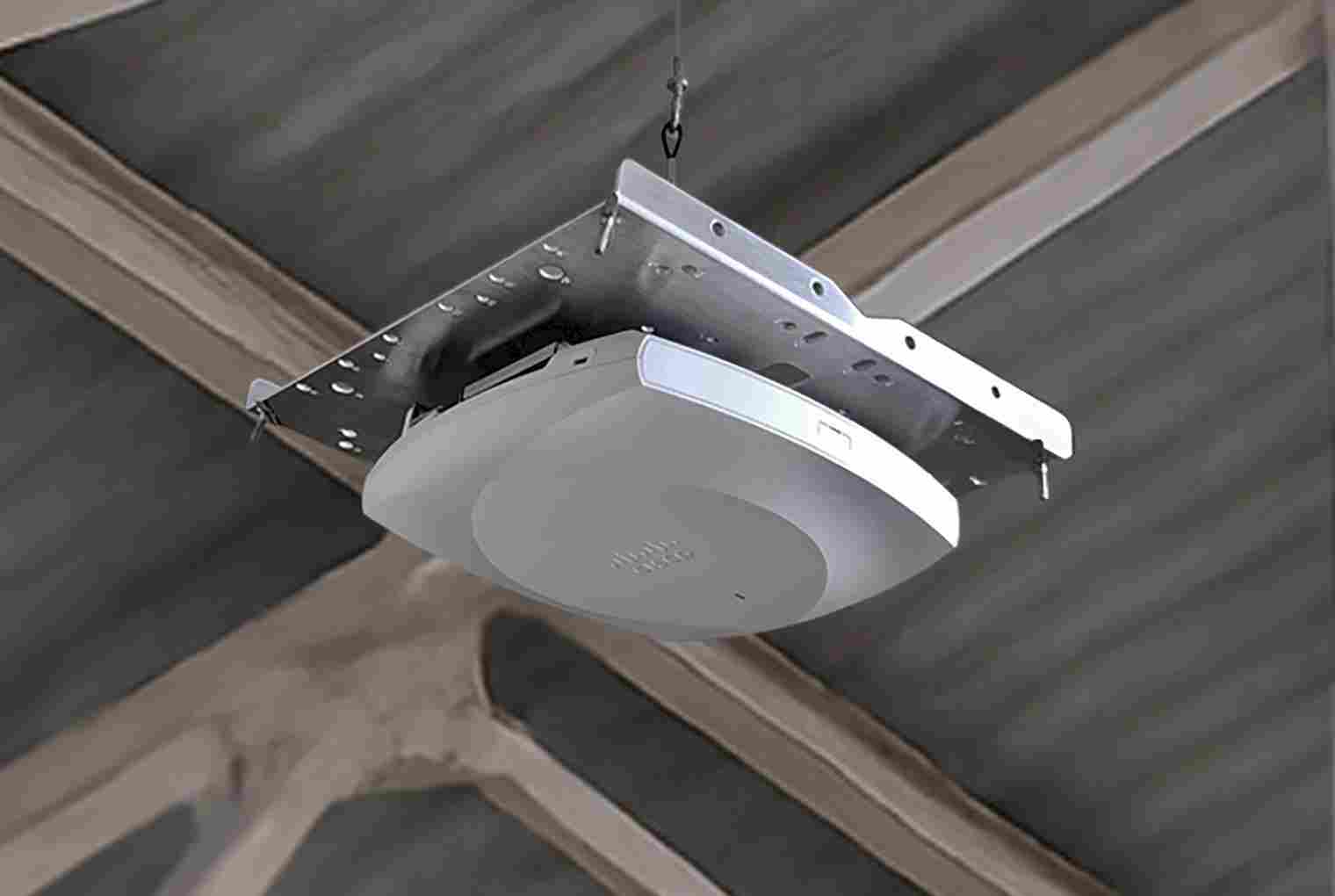

1312-00-QCH | Open Ceiling Hanging Wire | Open Ceiling | 0.9" (23 mm) | 11.5" (292 mm) | 11.6" (295 mm) | Clear | $155.00 | |
1312-00 | Open Ceiling Hanging Wire | Open Ceiling | 0.9" (23 mm) | 11.5" (292 mm) | 11.6" (295 mm) | Clear | $85.00 | |
1312-AM2 | Not Applicable | Not Applicable | 0.9" (23 mm) | 23.2" (589 mm) | 12.4" (315 mm) | Clear | $108.00 | |
1312-AM1 | Not Applicable | Not Applicable | 0.9" (23 mm) | 11.5" (292 mm) | 18.6" (472 mm) | Clear | $105.00 | |
1312-AM3 | Not Applicable | Not Applicable | 0.9" (23 mm) | 11.5" (292 mm) | 27.4" (696 mm) | Clear | $190.00 | |

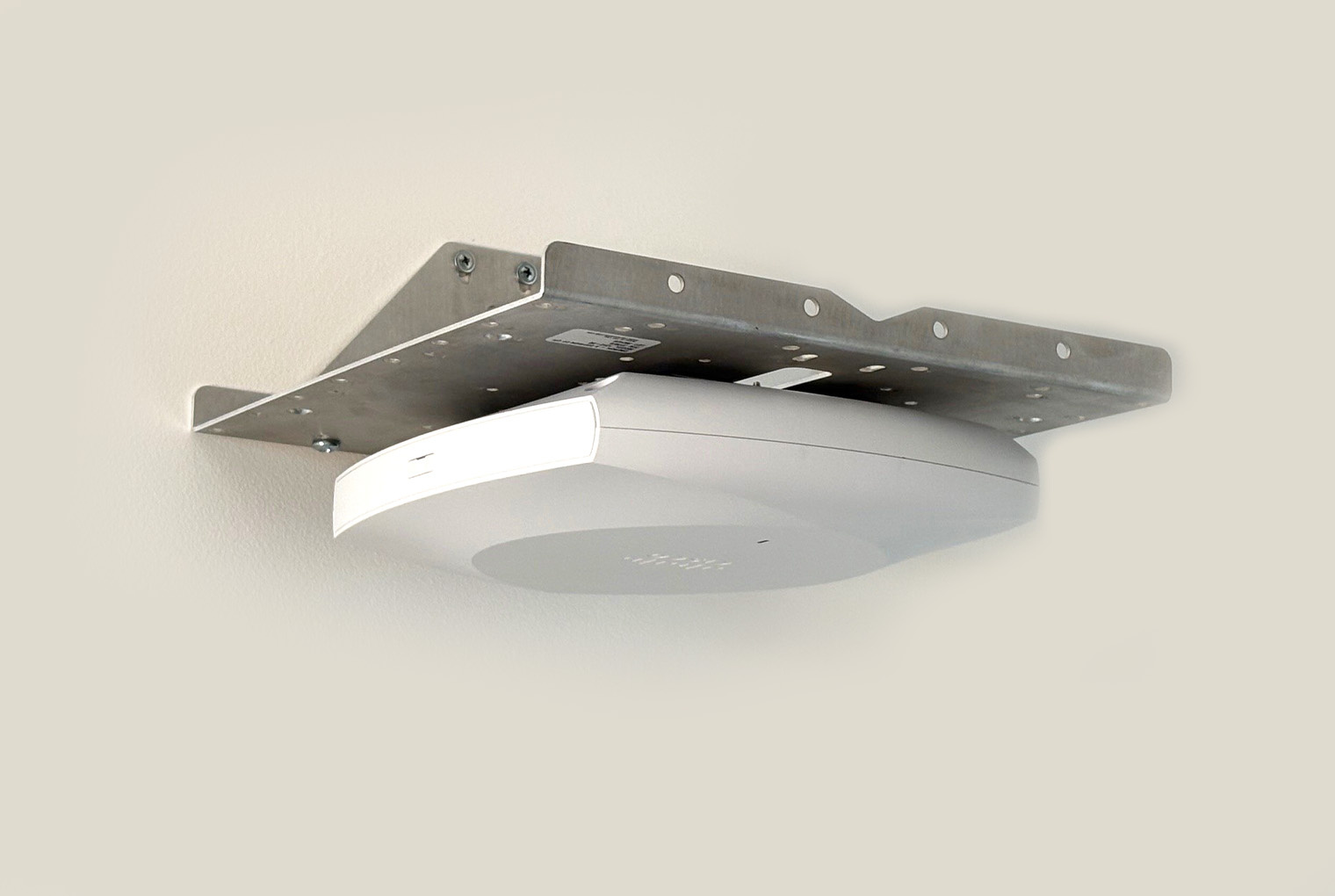

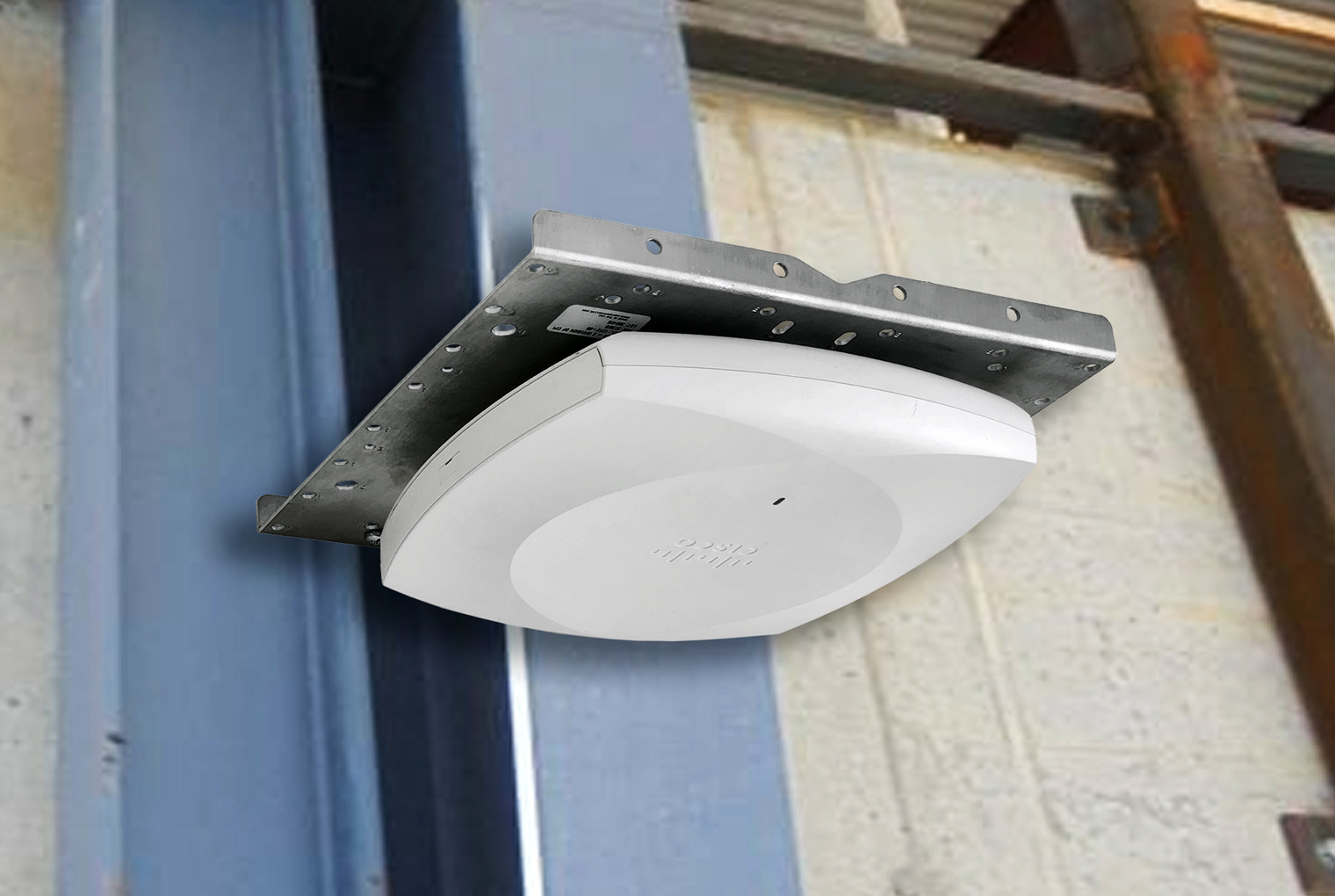

1312-RAB | Wall Surface Mount | Right Angle Mount | 0.9" (23 mm) | 11.5" (292 mm) | 11.6" (295 mm) | Clear | $111.00 |
Product Description
Oberon® Oberon Hi-Point Open-Ceiling and Surface Mounts 1312 series mounting frames are designed to simplify and optimize the installation of APs, connected antennas, and associated accessories. These modular frames are designed for easy configuration, quick installation, consistent implementations and maintenance free operation, in warehouses, manufacturing facilities and other areas with large open ceilings. Designed for APs and antennas from all leading vendors. See installation accessories here
Key Features and Benefits
- Conveniently install APs, antennas, and associated cabling in warehouses, industrial facilities, sports venues or any facility with open ceiling
- Enables AP and antennas from leading vendors to be mounted in any preferred orientation
- Save installation labor time and cost
- See installation accessories here
Technical Specifications
Design: Modular frame for fast and consistent mounting of Wi-Fi Access Points (APs) and antennas in open ceilings. Facilitates installation of AP and antenna in any preferred orientation
- Rugged, corrosion resistant aluminum construction with mounting features for all leading vendor’s Wi-Fi APs and antennas
- Available in five antenna application configurations (see Configuration Guide below)
- Accessories permit mounting and protecting Hi-Point in just about any type of construction environment
- Construction: 0.90 in. thick brushed 5052 aluminum
- Size: 13 x 12 x 1.0 in. (330 x 305 x 25 mm)
Product Includes:
Hi-Point modular mounting frame
(5) UV Resistant cable ties
(4) #8 AP mounting screws
(1) 1 in. tall alphanumeric label set
(1) Specified Antenna Application Bracket
(1) Specified M-Frame mounting kit options
(1) Installation instructions
Product Information
1312x560 Mount Configuration Options for Open‑Ceiling Applications
The Hi-Point surface mounts provide a streamlined solution for attaching wireless access points and antennas in open‑ceiling or wall environments. Their modular design reduces installation time and ensures consistent placement across large facilities. Customers benefit from a clean aesthetic and reliable performance. These mounts support a wide range of vendor equipment, allowing any leading Wi‑Fi access point to be positioned in the optimal orientation. The open‑ceiling hanging wire option and the right‑angle wall surface mount give installers flexibility for diverse site layouts. The system eliminates the need for custom fabrication. Each frame is fabricated from 0.90 in. (23 mm) thick brushed 5052 aluminum, offering corrosion resistance and long‑term durability in industrial settings. The rugged construction meets the demands of warehouses, manufacturing floors, and sports venues where environmental exposure is common. The lightweight yet sturdy build simplifies handling during deployment. The 1312x560 configuration provides a compact footprint of 13 in. x 12 in. x 1.0 in. (330 mm x 305 mm x 25 mm), fitting seamlessly into tight ceiling spaces. This size option balances structural support with minimal visual impact, making it ideal for dense deployments. The clear labeling and included mounting hardware streamline the final assembly. Installation requires only standard hardware such as UV‑resistant cable ties and #8 mounting screws, all supplied with the kit. CPI's Oberon Solutions Finder and product designer tools help engineers generate exact bill‑of‑materials and plan cable routing. The result is a fast, repeatable deployment that reduces labor costs and improves network uptime.
