Oberon In-Plane Recessed Mounts 1443
Explore Sizes & Options
| Add to Cart Add | |||||
|---|---|---|---|---|---|
1443-NT | Not Applicable | Not Applicable | Not Applicable | $145.00 | |
1443-COAP9120 | AP-Specific | Cisco | Cisco C9120AXI | $245.00 | |
1443-COAP9130 | AP-Specific | Cisco | Cisco C9130AXI | $245.00 | |
1443-ARAP515 | AP-Specific | Aruba | Aruba AP-515 | $245.00 | |
1443-JNAP47 | AP-Specific | Juniper | Juniper AP47 | $250.00 | |
1443-EXAP4020 | AP-Specific | Extreme | Extreme AP4020 | $255.00 | |
1443-ARAP535 | AP-Specific | Aruba | Aruba AP-535 | $245.00 | |
1443-JNBT11 | AP-Specific | Juniper | Juniper BT11 | $250.00 | |
1443-ARSTC460 | AP-Specific | Arista | Arista C-460 | $255.00 | |
1443-ARSTC400 | AP-Specific | Arista | Arista C-400 | $255.00 | |

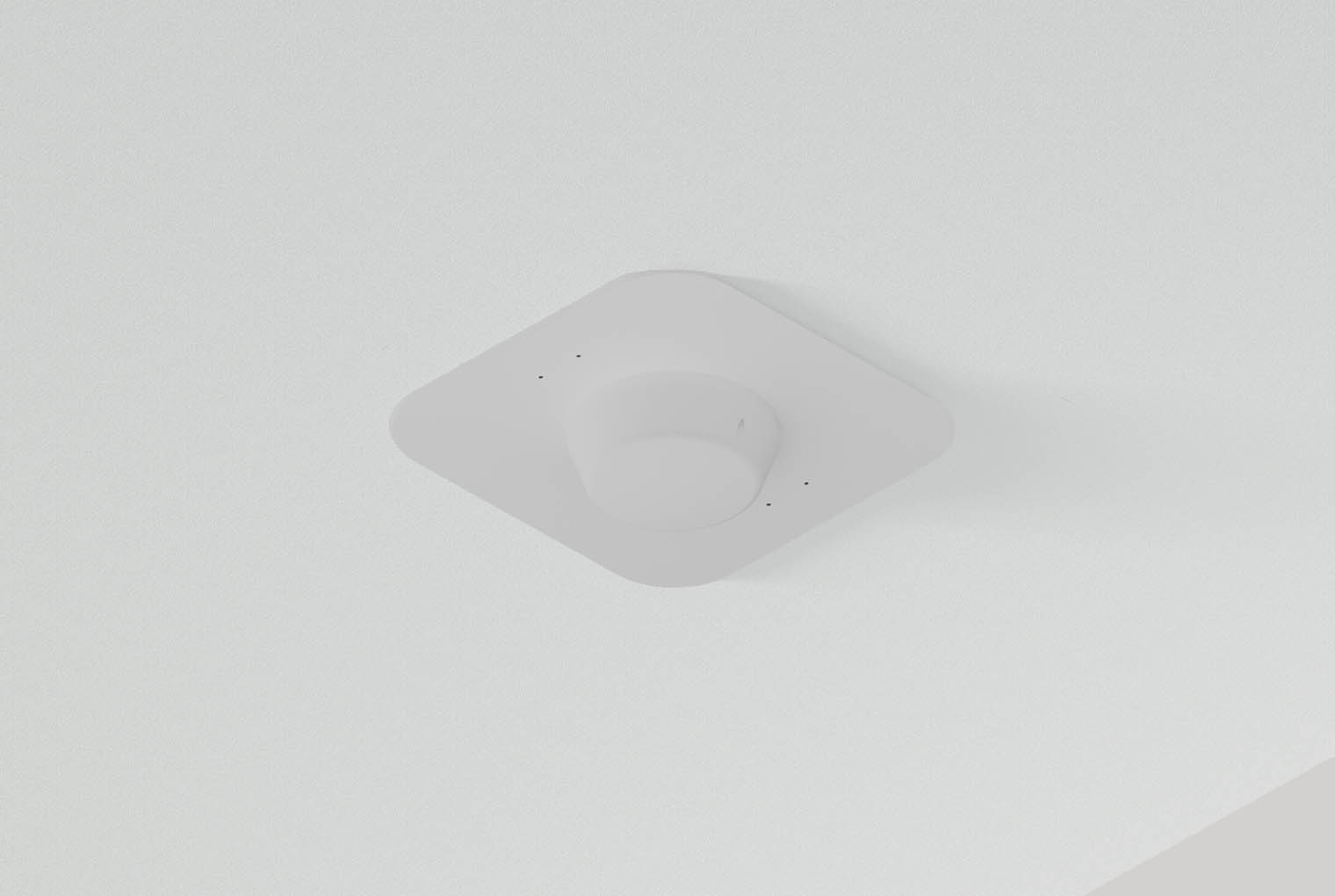

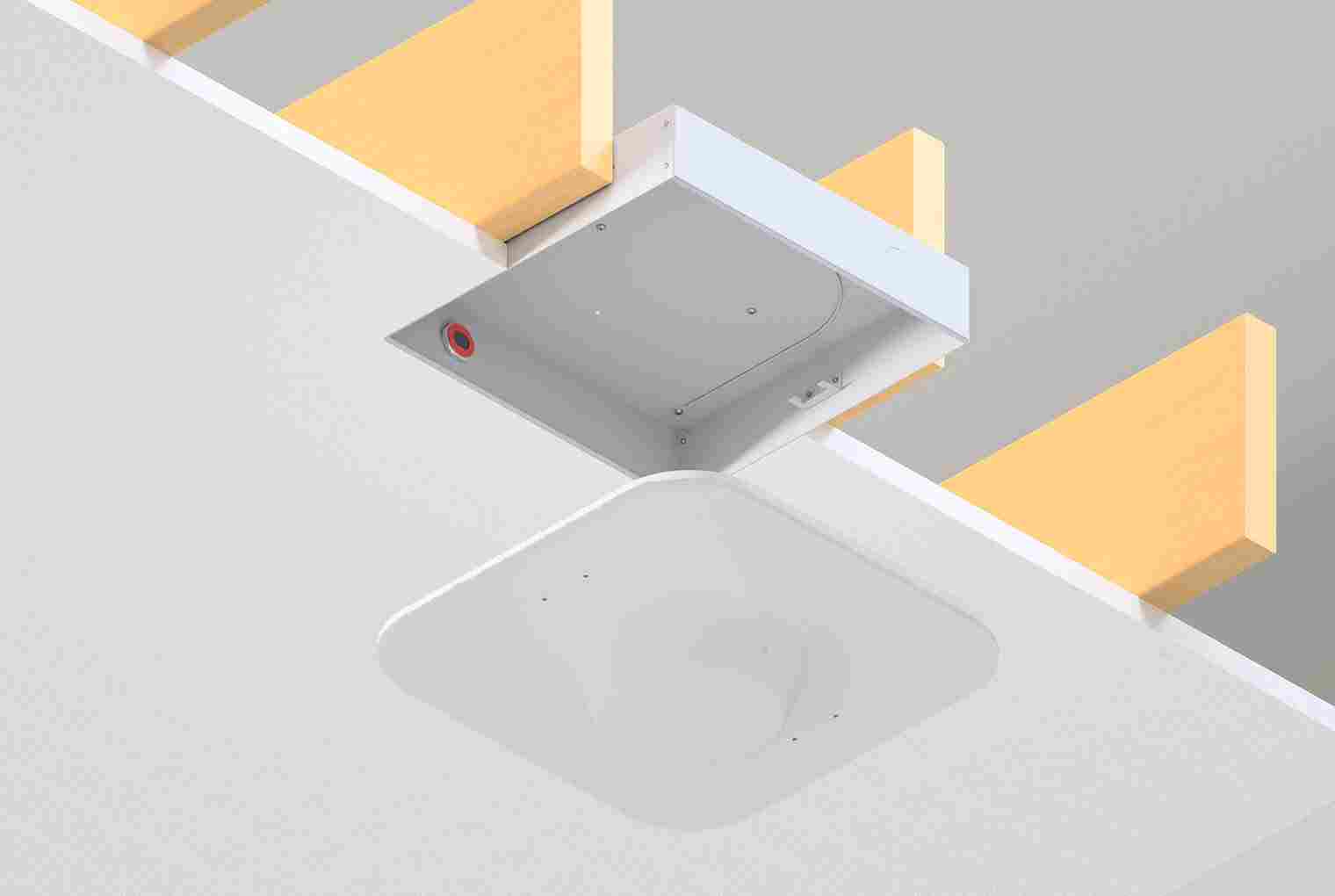

1443-ANTMNT | Antenna Mount | Various | Antenna, Various | $235.00 | |
1443-EXAP5020 | AP-Specific | Extreme | Extreme AP5020 | $255.00 | |
1443-CW9178 | AP-Specific | Cisco | Cisco CW9178I | $245.00 | |
1443-EXAP5010 | AP-Specific | Extreme | Extreme AP5010 | $255.00 | |
1443-JNAP45 | AP-Specific | Juniper | Juniper AP45 | $250.00 | |
1443-ARAP755 | AP-Specific | Aruba | Aruba AP-755 | $245.00 | |
1443-JNAP43 | AP-Specific | Juniper | Juniper AP43 | $250.00 | |
1443-ARAP725 | AP-Specific | Aruba | Aruba AP-725 | $245.00 | |
1443-CW9172 | AP-Specific | Cisco | Cisco CW9172I | $245.00 | |
1443-CW9166 | AP-Specific | Cisco | Cisco CW9164I, Cisco CW9166I | $245.00 |
Product Description

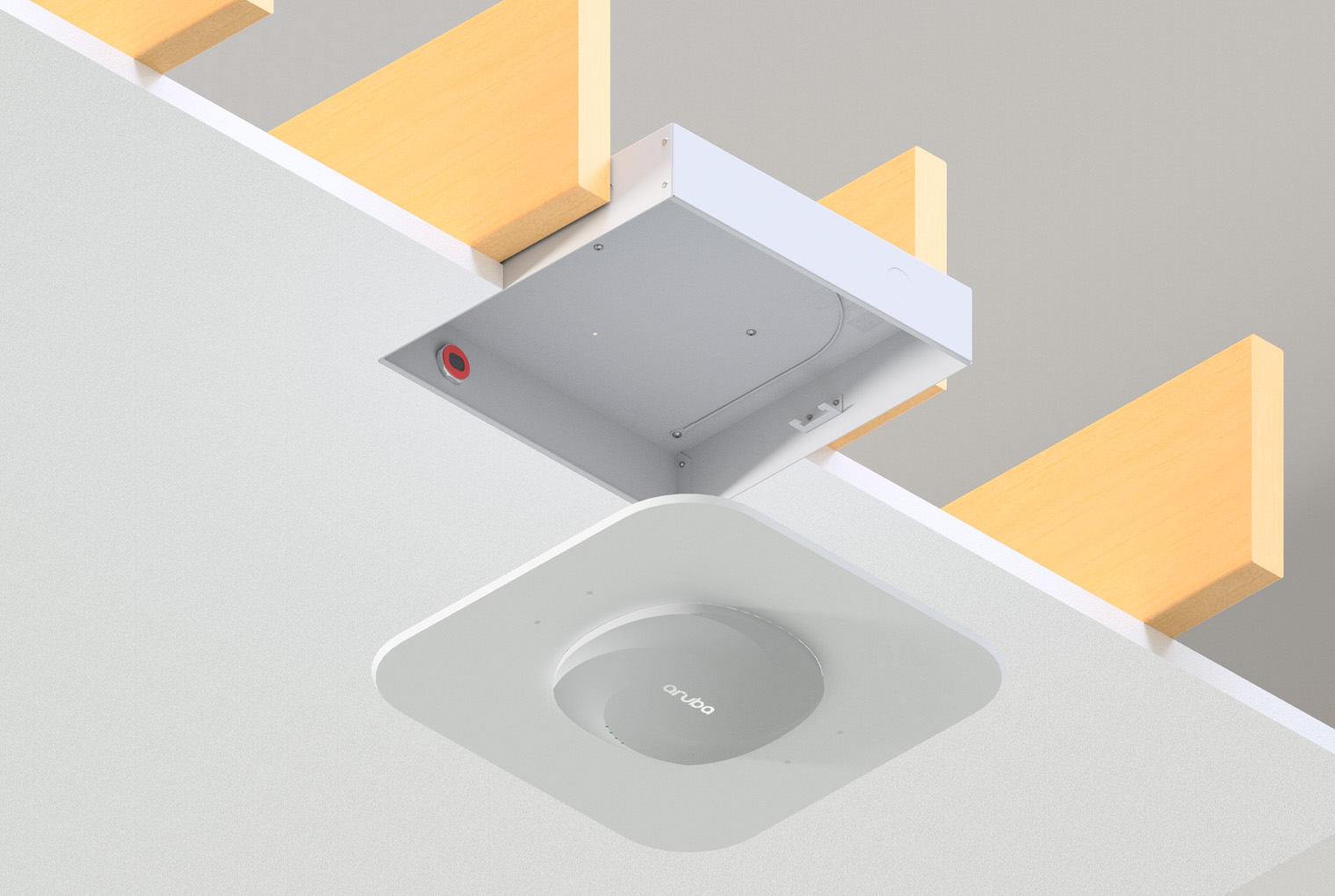

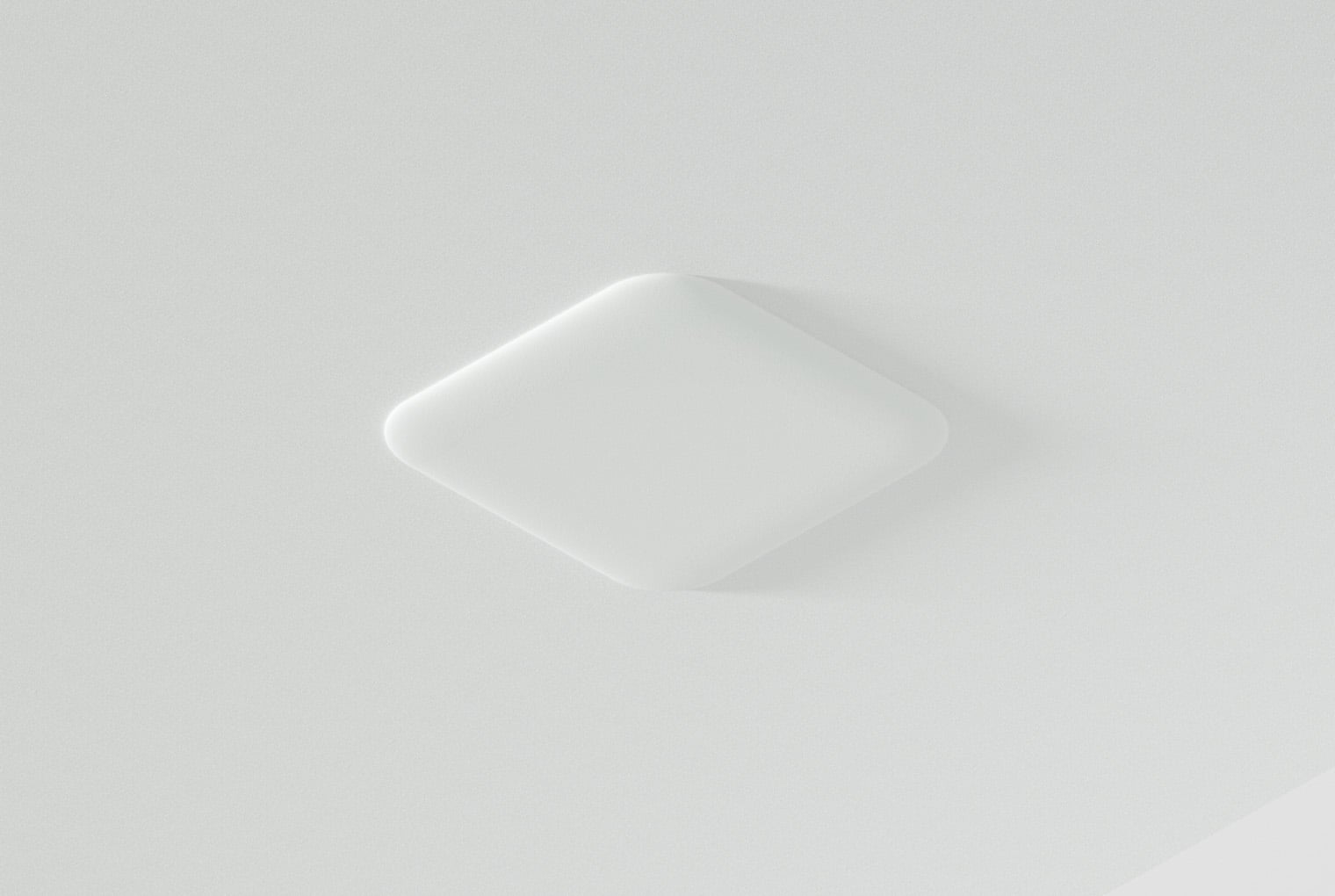

The Model 1443 In-Plane™ series offer the simplest way to mount APs and antennas from most leading vendors into new construction hard (drywall/sheetrock) ceilings up to 1.5 in. thick, for an aesthetic, professional installation. The back-box is fastened to the ceiling joists before drywall is installed, and the new ceiling is cut around the box. When construction is complete, the access point either fastens to the appropriate trim, and the trim attaches to the back-box with torsion springs, or the AP fastens within the backbox onto an included mounting bracket or T-bar bracket and the cover attaches to the back-box with torsion springs and conceals the AP. The AP is recessed into the ceiling much like a recessed light fixture with only the front face exposed for optimal wireless coverage. The AP or antenna trim is easily swapped when AP or antenna model changes.
Key Features and Benefits
- Install and conceal APs and antennas from most vendors into new construction hard ceiling environments
- AP and antennas mount flush to the ceiling, providing an aesthetic, professionally installed appearance
- Easy to install, no loose hardware
Technical Specifications
- Design: Economical, recessed hard ceiling installation kit for APs and antennas. For new construction prior to installing wall board. AP mounts in interchangeable bracket and trim, providing a professional finish. Designed for all leading vendors’ APs and antennas, as identified in specifications
- Performance: UL listed for low voltage applications, and designed to meet NEC300-22 and 300-23 for plenum installations. De-rate AP operating temperature range by 8°C when mounted inside enclosure
- Safety and Standards: UL 2416, Audio/Video, Information and Communication Technology Equipment Cabinet, Enclosure & Rack Systems; CSA C22.2 NO. 60950-1-07 + Amd. 1 Amd. 2 Information Technology Equipment — Safety. Part 1, General Requirements
- Cover attaches with torsion spring and is interchangeable with other AP-specific trims for other APs and antennas without removing back-box
- Firestop grommet for insertion into back-box, large enough for 2 Cat6A cables
- 1 in. trade size knockouts in two walls
- Adjustable box mounting brackets secure enclosure into ceiling joists
- Solid back-box fills opening behind AP, creating an effective fire, smoke and dust barrier to simplify ICRA compliance
- Construction: 16 ga. aluminum back-box, steel trim or opaque white ABS plastic cover
- Size: Back-box is 14 x 14 x 3 in. (356 x 356 x 76 mm).
- Suitable for both North American and European (metric) ceilings
- Made in the USA
Product Includes:
- (1) Backbox
- (1) Cover Trim
- (1) AP Mounting Bracket
- (1) T-bar Mounting Bracket
- (1) Dual Cable Egress Firestop Grommet
- (1) 1 in. Trade Size Conduit Connector
- (1) Adjustable Box Mounting Bracket
- Access Point Attachment Hardware
- Installation Instructions
Product Information
Design Tools
Aesthetic and Secure Wireless Access Point Installation
The Oberon In-Plane™ Recessed Mounts 1443 series deliver a streamlined solution for integrating wireless access points and antennas into hard ceilings. These Oberon wireless enclosures ensure a flush, professional appearance that blends seamlessly with modern architectural designs. By recessing equipment like a light fixture, they optimize wireless coverage while maintaining aesthetic integrity.
Installation is straightforward with adjustable mounting brackets that secure to ceiling joists during new construction. The back-box fills openings to act as a fire, smoke, and dust barrier, simplifying ICRA compliance. Oberon mounts feature torsion spring attachments for easy cover swaps, allowing quick updates when AP models change without removing the enclosure.
Compatibility spans leading vendors including Aruba, Cisco, and Extreme, with interchangeable trims for various AP and antenna models. Each Oberon enclosure includes a firestop grommet for up to two Cat6A cables, supporting efficient cable management. This flexibility makes Oberon wireless solutions ideal for diverse environments from enterprise networks to edge data centers.
Safety and performance are upheld through UL 2416 listing and design adherence to NEC 300-22 and 300-23 for plenum installations. Constructed from 16-gauge aluminum and steel or ABS plastic, these enclosures de-rate AP operating temperatures by 8 degrees Celsius when mounted inside. Oberon enclosures are made in the USA, ensuring reliable quality and support.
Overall, the Model 1443 series enhances wireless infrastructure with durable, code-compliant designs that protect investments. Oberon mounts facilitate future-ready deployments, accommodating technology upgrades with minimal effort. This approach aligns with CPI's commitment to delivering innovative, customizable solutions for evolving communication needs.
