Oberon NetPoint Bollards 3032
Explore Sizes & Options
| Add to Cart Add | |||||||
|---|---|---|---|---|---|---|---|
3032-00-LTGNT-XX | Beveled Top | Light Granite | 57" (1448 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $1,025.00 | |
3032-00-BN-XX | Beveled Top | Brown | 57" (1448 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-00-CC-XX | Beveled Top | Custom - Contact Oberon | 57" (1448 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $1,025.00 | |
3032-LH-CC-XX | Lighthouse Top | Custom - Contact Oberon | 60" (1524 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $1,025.00 | |
3032-00-LTGY-XX | Beveled Top | Light Gray | 57" (1448 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-00-BK-XX | Beveled Top | Black | 57" (1448 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-00-GY-XX | Beveled Top | Gray | 57" (1448 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-00-URBZ-XX | Beveled Top | Urban Bronze | 57" (1448 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-00-FGN-XX | Beveled Top | Forest Green | 57" (1448 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-LH-DKGNT-XX | Lighthouse Top | Dark Granite | 60" (1524 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $1,025.00 | |
3032-00-DKGNT-XX | Beveled Top | Dark Granite | 57" (1448 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $1,025.00 | |
3032-00-BL-XX | Beveled Top | Blue | 57" (1448 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-LH-FGN-XX | Lighthouse Top | Forest Green | 60" (1524 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-LH-GY-XX | Lighthouse Top | Gray | 60" (1524 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-LH-BL-XX | Lighthouse Top | Blue | 60" (1524 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-LH-BK-XX | Lighthouse Top | Black | 60" (1524 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-LH-LTGNT-XX | Lighthouse Top | Light Granite | 60" (1524 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $1,025.00 | |
3032-LH-URBZ-XX | Lighthouse Top | Urban Bronze | 60" (1524 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-LH-BN-XX | Lighthouse Top | Brown | 60" (1524 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 | |
3032-LH-LTGY-XX | Lighthouse Top | Light Gray | 60" (1524 mm) | 11.5" (292 mm) | 10.5" (266 mm) | $999.00 |
Product Description
Oberon® NetPoint™ Bollards 3032 is a cost effective way to extend wireless and Wi-Fi coverage into auditoriums, sports venues, courtyards, malls, and campus open areas permanently or temporarily. The Wireless bollard can be used to mount Wi-Fi APs and antennas in locations where mounting on buildings or light poles is aesthetically unacceptable. The bollard is designed to protect APs and antennas from weather and tampering. The polyethylene thermoplastic cylinder is virtually transparent to wireless signal. Large enough for APs, omnidirectional and directional antennas, and associated equipment from most vendors. Available in custom colors and custom heights.
NOTE: 6 GHz Access Points (e.g. Wi-Fi 6E) may only operate outdoors in the United States in the Standard Power mode (requiring AFC coordination). Low Power Indoor (LPI) Access Points are restricted to indoor only operation.
Note: Contact Oberon to specify a different height or color. This is a custom product and is non-returnable other than for Warranty related issues.
Key Features and Benefits
- NetPoint rugged Wi-Fi Bollard for indoor/outdoor temporary or permanent extension of Wi-Fi coverage
- Protect AP, antennas, cabling, and switch from weather, spilling liquids, and tampering
- Virtually transparent to wireless signal
- Large enough for most vendor’s APs, dipole or panel antennas, small network switch, media converter and PoE injector
- Available in two styles, ten colors and custom heights
Technical Specifications

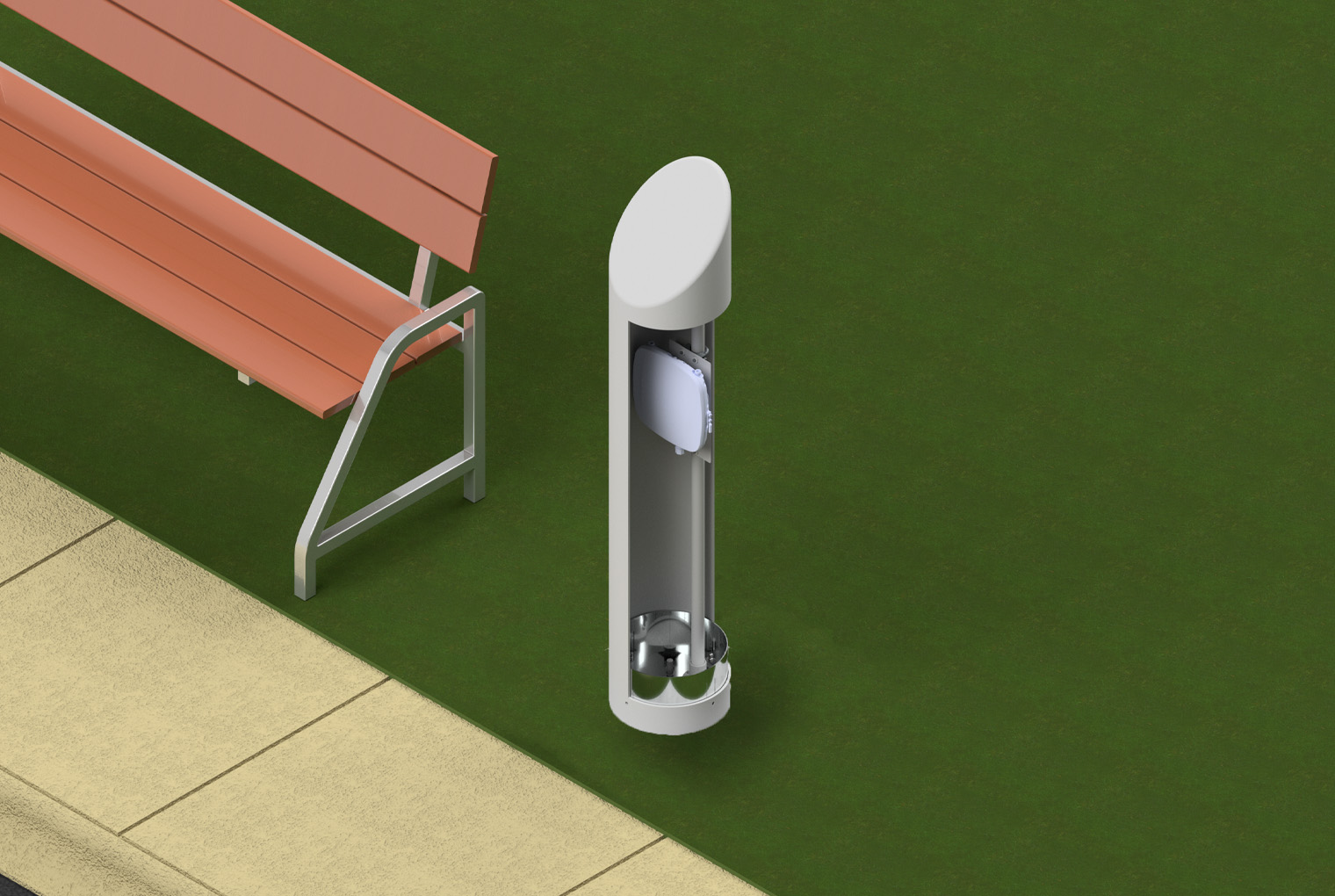

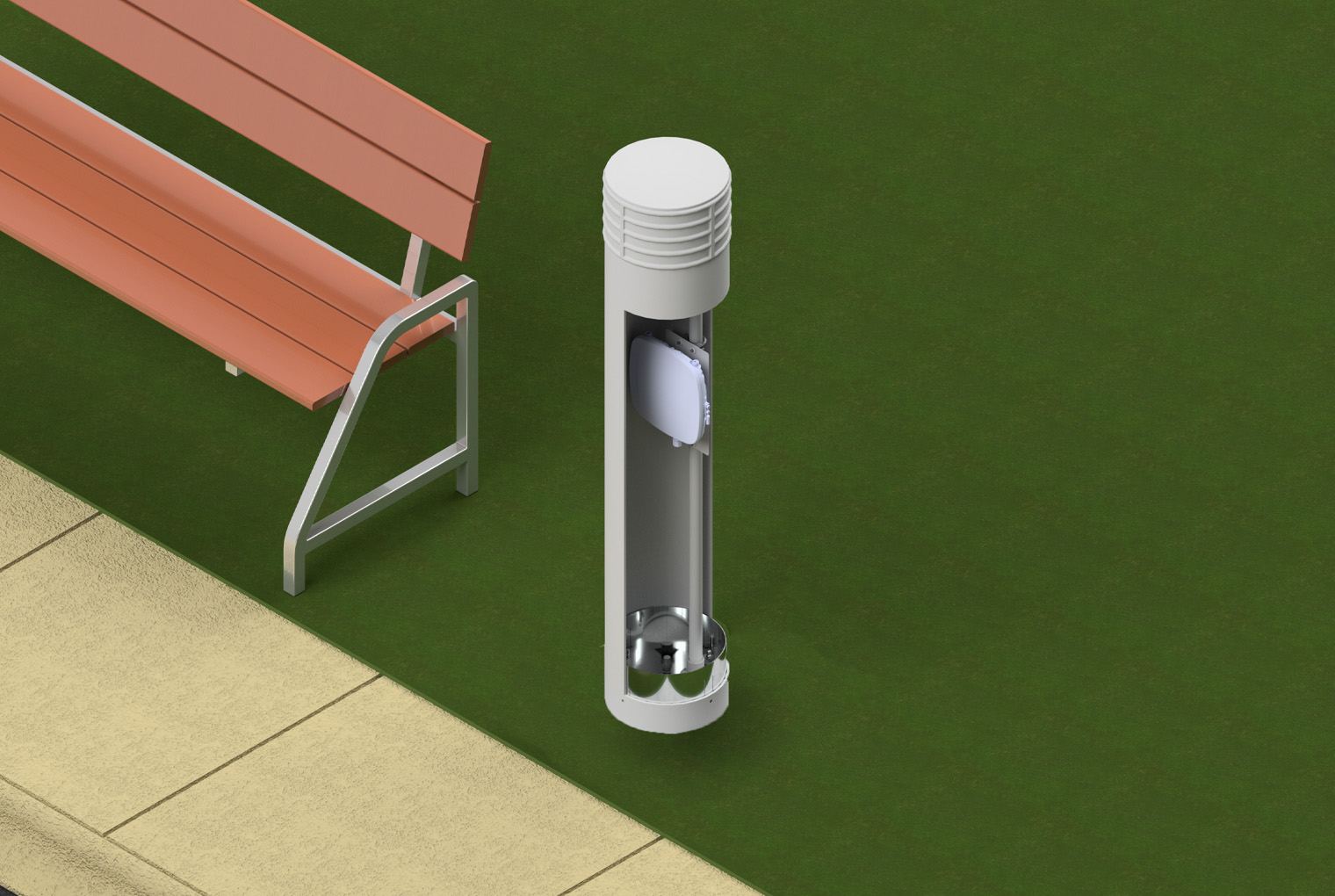

- Design: Cylindrical polyethylene plastic Wi-Fi bollard. Designed to protect APs and antennas in outdoor public spaces. Designed for permanent or temporary low voltage installations. Fiberglass interior equipment stand for mounting APs and antennas minimizes impact on wireless signals
- Performance: Designed to protect equipment from tampering, spilling liquids and weather. NEMA 3R performance for indoor/ outdoor environments. Polyethylene plastic bollard is virtually transparent to wireless signals
- Anchors to pre-installed concrete pedestal. Cabling is conducted through conduit in pedestal. Or, temporary anchorage with ground or asphalt screws (not included)
- Includes anchor base, equipment stand, hardware to fasten APs and antennas. Tamper resistant hardware
- Temperature Range for Bollard: -40°F (-40°C) to 115°F (46°C). Note that internal temperature will be higher than ambient temperature because of solar loading and equipment heat dissipation. In locations subject to significant solar loading, consider recommending lighter colored bollards (white, light grey) to minimize solar heating, and consequential impact on internal equipment operation.
- Construction: nominally 0.25 in. thick, UV and cleaning chemical resistant UL-94HB Polyethylene plastic. Zinc coated, 0.25 in. thick steel anchor base. Fiberglass equipment mounting stand

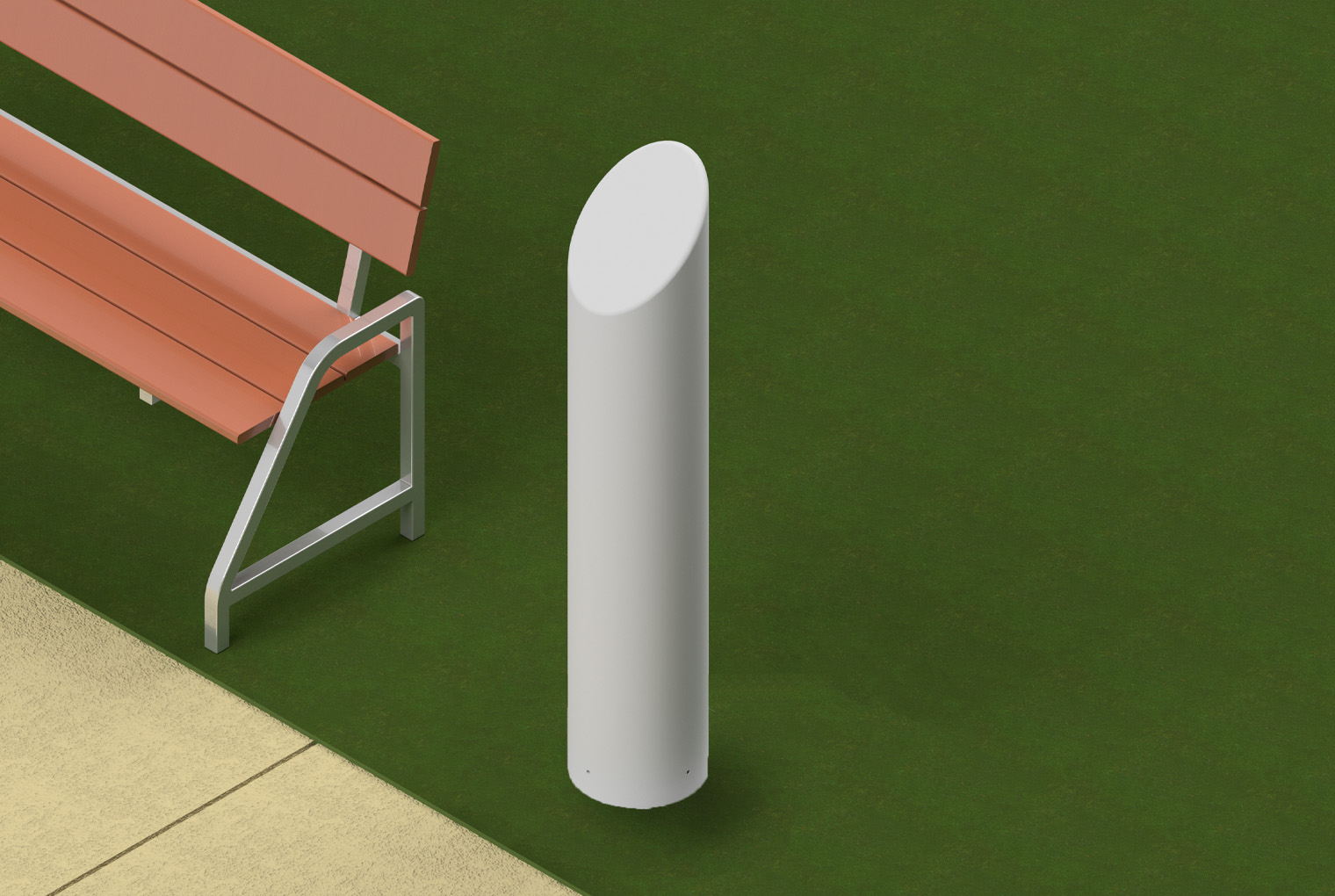

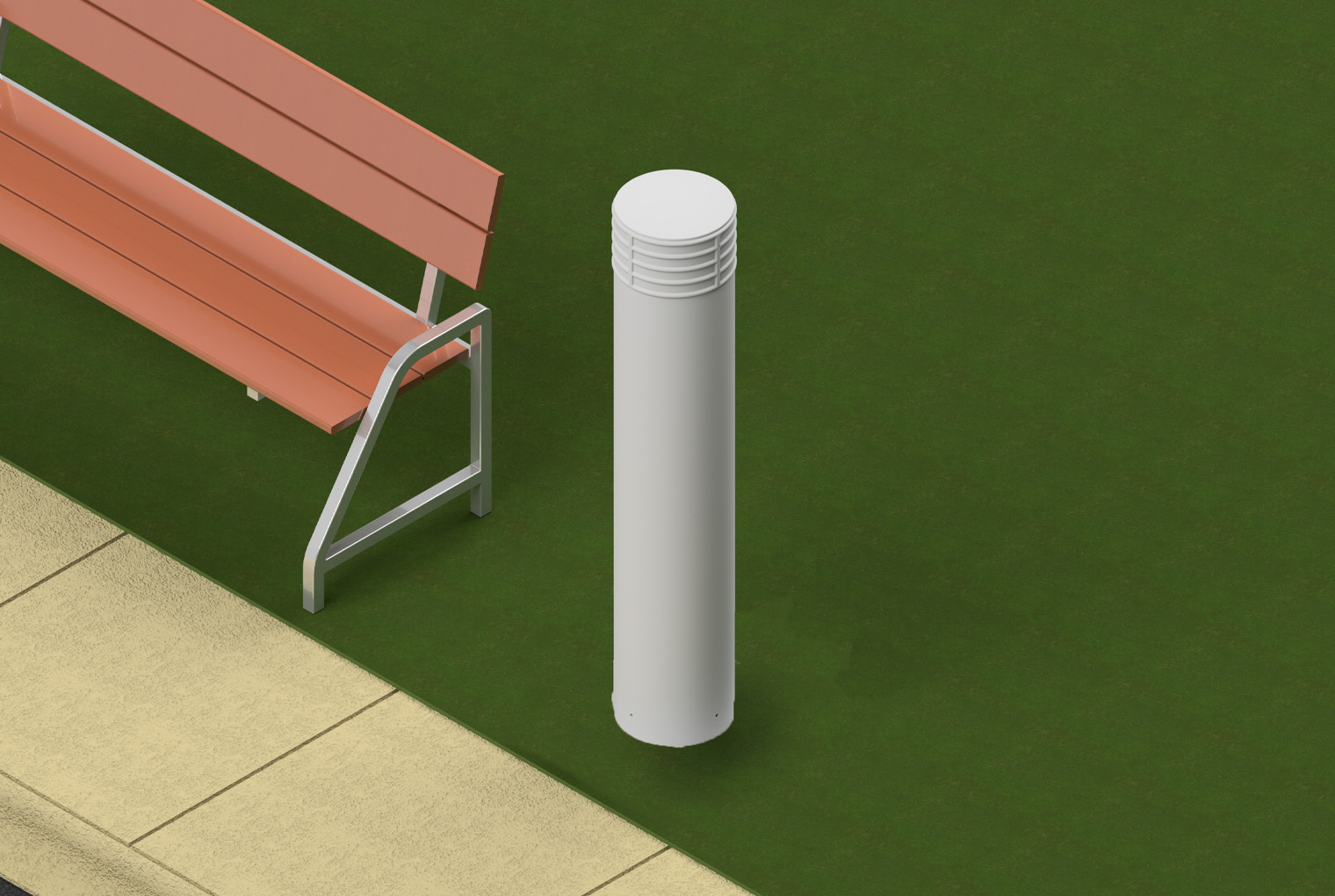

- Available in two styles: Beveled top or lighthouse top
- Available in ten standard colors
- Available in custom heights in 1" (25 mm) increments from 36" (914 mm) to standard height
- Custom colors may be available. Customer must provide color designator.
- Contact Oberon to configure a custom height or color
Product Includes:
- (1) Polyethylene Bollard
- (1) 1.25 in. Fiberglass Equipment Pole
- (1) 1.25 in. Pole Fitting
- (1) AP Mounting Plate
- (1) Right Angle Bracket
- (3) 10-32 x 7/16 in. Flat head screw
- (2) 5/16 in.-18 Thread, 1-7/16 in. ID U-Bolt
- (4) 1/4-20 x 3/4 in. Pan Head Screw
- (4) 1/4-20 x 3/4 in. Pin in Hex Tamper Resistant Screw
- (1) 5/32 in. Pin in Hex Bit
- (4) Snap-on Round Cap for 1/4 in. Screw
- (1) Wi-Fi Decal
- (1) Installation instructions
Product Information
Key Features of the Oberon® 3032 Bollard
The Oberon® 3032 NetPoint™ bollard provides a cost‑effective method to extend wireless coverage into auditoriums, courtyards, and campus open areas. Its cylindrical polyethylene construction is virtually transparent to radio signals, ensuring that the installed access point performs as if it were mounted directly on a wall. This design makes the Oberon® bollard a reliable solution for any outdoor or indoor‑outdoor deployment. External bollards like the 3032 model are engineered to protect Wi‑Fi equipment from weather, vandalism, and accidental spills. The NEMA 3R‑rated enclosure safeguards antennas and switches while maintaining signal integrity. Because the material is UV‑stable, the bollard remains clear and functional even after years of sun exposure. Lighthouse bollard style options add visual distinction without compromising performance, and a full palette of colors--including green bollards for landscape‑friendly aesthetics--allows seamless integration into any environment. Custom heights can be ordered in one‑inch increments, ensuring optimal placement for specific mounting requirements. All configurations retain the same rugged protection and signal transparency. The bollard operates reliably from ‑40 degreesF (‑40 degreesC) to 115 degreesF (46 degreesC), with internal temperatures monitored to prevent overheating under heavy solar loading. Its internal fiberglass equipment stand minimizes signal loss for both omnidirectional and directional antennas. The robust steel anchor base secures the unit to concrete pedestals or temporary ground screws for quick installations. Installation requires only standard hardware, and the included mounting plate and tamper‑resistant fasteners simplify field deployment. By extending the wireless network with an Oberon® 3032 NetPoint™ bollard, organizations reduce cable runs and improve coverage density. The result is a more resilient, high‑performance Wi‑Fi environment that supports today's demanding applications.
