10622-012

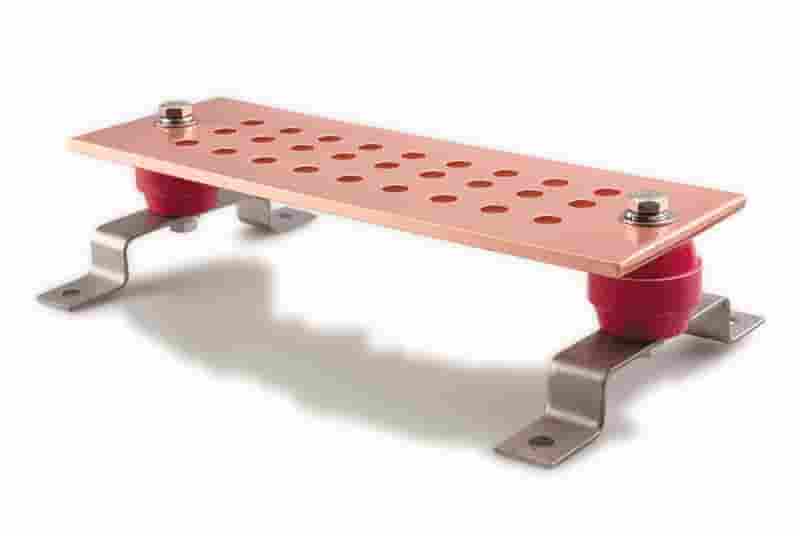

Standard Busbar; 4"H x 12"W x 0.25"D (100 mm x 300 mm x 6.4 mm)
| Height | 4" (100 mm) " |
| Depth | 0.25" (6.4 mm) |
| Certifications | Not Applicable |
| Country Of Origin | US |
| BABA Compliant | Yes |
| Type | Standard Busbar |
| Ship Width | 7 in |
| Ship Length/Depth | 33 in |
| Ship Height | 3 in |
| Shipping Weight | 5 LB |
Product Description

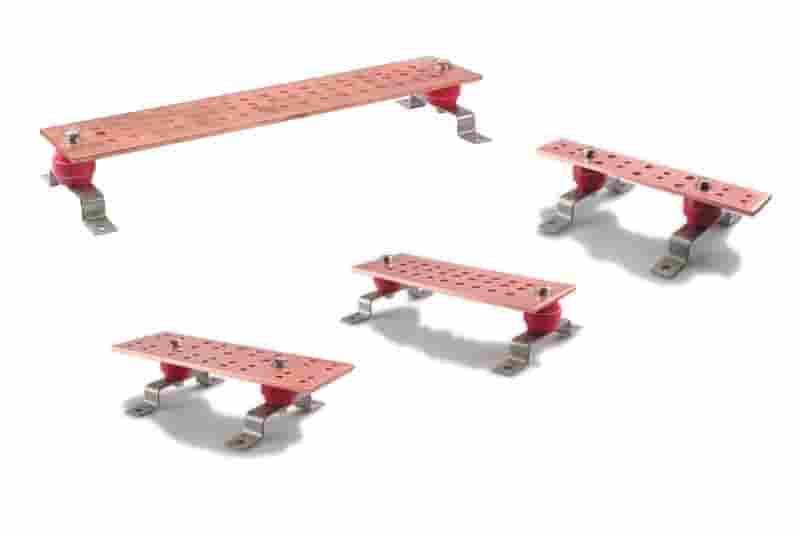

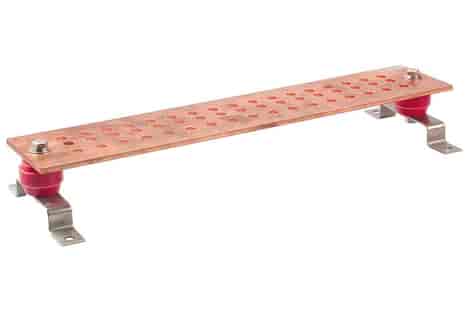

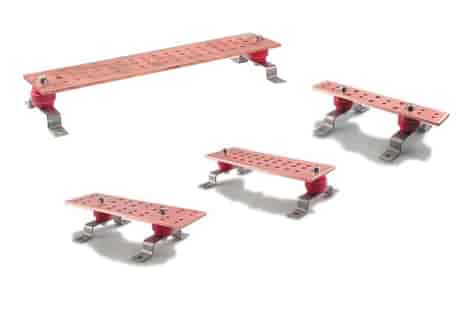

CPI Standard Busbars are insulated ground bus mounting plates specifically designed for commercial applications. The Hard-Drawn Electrolytic Tough Pitch 110 Alloy solid copper bonding bars are 1/4" (6.4 mm) thick and stand off 2.75" (70 mm) from the backboard or wall. The 10" (254 mm) Busbar accepts 1/4" (6.4 mm) single bolt lugs. The 12" (304.8 mm) and 20" (508 mm) Busbars provide connection for nine or 17 lugs respectively, accepting lugs with either 3/4", 1" or 1-3/4" (19 mm, 25.4 mm or 44.5 mm) centers. Any lug with 3/8” (9.5 mm) bolts may be used.
- Each Busbar assembly consists of:
- 1 Busbar
- 2 insulators
- 2 stand-off brackets
- 4 stainless steel bolts
- 4 lock washers
- 4 flat washers
- All Busbars ship individually and preassembled
- Other configurations available on request
- UL® Listed
Product Information
Design Tools
Key Features of the 10622‑012 Standard Busbar
The 10622‑012 standard busbar provides a reliable grounding solution for commercial data‑center enclosures. Its solid copper construction ensures low‑impedance paths for stray currents. As a UL® listed ground bus bar, it meets stringent safety requirements. Designed for simple busbar mounting, the unit includes two insulated stand‑off brackets and a dedicated busbar mounting bracket that fits 19‑inch rack panels. The brackets allow a 2.75‑inch (70 mm) clearance from the backboard, protecting adjacent equipment. Installation requires only four stainless‑steel bolts and lock washers, reducing labor time. The 1/4‑inch (6.4 mm) thick copper bar accommodates up to nine 1/4‑inch lugs on the 12‑inch model and seventeen on the 20‑inch version. Each lug can be spaced at 3/4‑inch, 1‑inch or 1‑3/4‑inch centers, offering flexibility for diverse wiring layouts. The robust bus bar bracket system maintains consistent pressure on each connection for long‑term reliability. Overall dimensions of the standard busbar are 4 in (100 mm) high, 12 in (300 mm) wide and 0.25 in (6.4 mm) deep, fitting neatly into most enclosure backplanes. The insulated stand‑offs provide a 2.75‑inch (70 mm) gap that isolates the busbar from conductive surfaces. All components ship pre‑assembled, ready for immediate integration. CPI supplies complementary design tools, including a Visio stencil and BIM files, to streamline system planning. Technical support and authorized distributors are available to assist with custom configurations or additional busbars. The 10622‑012 busbar mounting solution delivers consistent grounding performance across hyperscale, colocation and enterprise environments.
