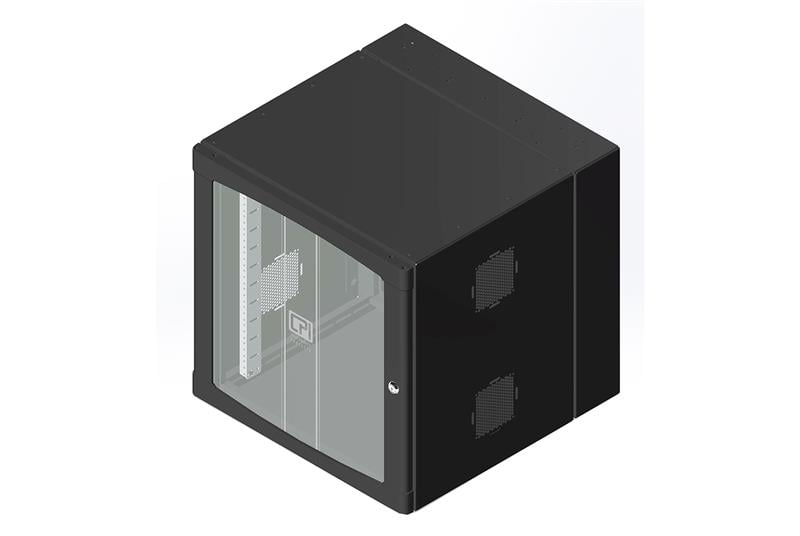

CUBE-iT Wall-Mount Cabinet
Explore Sizes & Options
| Add to Cart Add | ||||||
|---|---|---|---|---|---|---|
11890-736 | 36" (910 mm) 19U | 18" (460 mm) | Black | Solid Metal Door | $1,281.75 | |
11840-724 | 24" (610 mm) 12U | 24" (610 mm) | Black | Solid Metal Door | $1,144.67 | |
11840-E48 | 48" (1220 mm) 26U | 24" (610 mm) | Glacier White | Solid Metal Door | $1,553.83 | |
11840-E24 | 24" (610 mm) 12U | 24" (610 mm) | Glacier White | Solid Metal Door | $1,165.86 | |
11840-E36 | 36" (910 mm) 19U | 24" (610 mm) | Glacier White | Solid Metal Door | $1,316.96 | |
11840-736 | 36" (910 mm) 19U | 24" (610 mm) | Black | Solid Metal Door | $1,293.00 | |
11890-724 | 24" (610 mm) 12U | 18" (460 mm) | Black | Solid Metal Door | $1,118.73 | |
11890-E24 | 24" (610 mm) 12U | 18" (460 mm) | Glacier White | Solid Metal Door | $1,139.44 | |
11900-E36 | 36" (910 mm) 19U | 24" (610 mm) | Glacier White | Tempered Glass Door | $1,344.59 | |
11890-E36 | 36" (910 mm) 19U | 18" (460 mm) | Glacier White | Solid Metal Door | $1,305.45 | |
11890-E48 | 48" (1220 mm) 26U | 18" (460 mm) | Glacier White | Solid Metal Door | $1,533.57 | |
11890-748 | 48" (1220 mm) 26U | 18" (460 mm) | Black | Solid Metal Door | $1,505.67 | |
11840-748 | 48" (1220 mm) 26U | 24" (610 mm) | Black | Solid Metal Door | $1,525.55 | |
11900-724 | 24" (610 mm) 12U | 24" (610 mm) | Black | Tempered Glass Door | $1,184.55 | |
11900-736 | 36" (910 mm) 19U | 24" (610 mm) | Black | Tempered Glass Door | $1,320.18 | |
11901-724 | 24" (610 mm) 12U | 18" (460 mm) | Black | Tempered Glass Door | $1,165.05 | |
11901-736 | 36" (910 mm) 19U | 18" (460 mm) | Black | Tempered Glass Door | $1,310.52 | |
11996-E24 | 24" (610 mm) 12U | 30" (760 mm) | Glacier White | Solid Metal Door | $1,255.49 | |
11996-E36 | 36" (910 mm) 19U | 30" (760 mm) | Glacier White | Solid Metal Door | $1,396.31 | |
11901-748 | 48" (1220 mm) 26U | 18" (460 mm) | Black | Tempered Glass Door | $1,583.73 |
Product Description
CUBE-iT® Wall-Mount Cabinet provides a secure, easy-to-install, swing-out storage solution for information and communications technology (ICT) equipment. Attractive design, security features and range of optional fan kits make it ideal for public areas or equipment rooms with limited floor space.
Key Features and Benefits
- Three-part, swing-out design allows access and service to the front and rear of equipment
- A single lock and key (CH751) on the front door provides access to the entire cabinet
- Rear panel includes 1” (25.4 mm) and 3" (76 mm) knockouts, and can accept 3/4” (19 mm) and 2.5” (63.5 mm) conduit. The 3” (76 mm) knockouts include edge-protection grommets
- Rear panel features cable tie and attachment points for accessory rack-mount brackets
- UL® 2416 Listed, 300 lb (136 kg) load rating
- Internal latch mechanism secures the rear panel; slim-profile does not impact cabling space
- Hinge design allows the installer to remove the rear panel for easier installation on the wall
- Cabinet body includes one pair of adjustable depth 19" EIA threaded equipment mounting rails
- Cable pass-through knockout with optional brush seal makes it ideal for retrofit installations
- Optional low-decibel (31 dB), dual-fan kit provides quiet operation while cooling equipment
- Factory-prepped bonding feature provides convenience and reduces installation time
- Ships fully assembled
Product Information
Design Tools
Key Features of the CUBE-iT Swing-Out Design
The CUBE-iT® wall-mount cabinet provides a robust storage solution for information and communications technology equipment in space-constrained areas. Its three-part, swing-out design allows effortless access to both front and rear components, streamlining maintenance and upgrades. This feature is particularly beneficial for IT cabinets in offices, data rooms, or edge computing setups where floor space is limited.
Security is enhanced with a single lock and key system on the front door, securing the entire cabinet and protecting sensitive ICT gear. The rear panel includes knockouts for conduit and cable management, supporting organized installations. Additionally, an internal latch mechanism ensures the rear panel stays securely in place without interfering with cabling, making it a reliable IT enclosure.
Installation is simplified with a hinge design that permits removal of the rear panel for easier wall mounting, reducing setup time. The cabinet ships fully assembled and includes adjustable 19-inch EIA threaded rails for flexible equipment mounting. Factory-prepped bonding features further expedite deployment, ensuring a efficient process for network administrators.
For cooling needs, an optional low-decibel dual-fan kit maintains quiet operation while dissipating heat from high-density IT equipment. The cabinet's UL 2416 Listed rating and 300-pound load capacity guarantee durability and safety in diverse environments. These attributes make the CUBE-iT an ideal choice for IDF cabinets or general IT enclosures in demanding applications.
Versatile applications span from telecommunications rooms to industrial settings, where the cube it design supports everything from servers to networking hardware. Its attractive finish options, like Black or Glacier White, blend seamlessly into public or private spaces. By integrating this wall-mount cabinet, organizations can achieve a compact, secure, and scalable IT infrastructure solution.
