Universal Cable Runway
Explore Sizes & Options
| Add to Cart Add | ||||
|---|---|---|---|---|
10250-112 | 12" (304.8 mm) | Gray | $189.03 | |
10250-109 | 9" (228.6 mm) | Gray | $182.41 | |
10250-106 | 6" (152.4 mm) | Gray | $170.47 | |
10250-118 | 18" (457.2 mm) | Gray | $216.21 | |
10250-104 | 4" (101.6 mm) | Gray | $159.14 | |
10250-706 | 6" (152.4 mm) | Black | $170.47 | |
10250-115 | 15" (381 mm) | Gray | $208.75 | |
10250-137 | 36" (914.4 mm) | Gray | $389.38 | |
10250-715 | 15" (381 mm) | Black | $208.75 | |
10250-712 | 12" (304.8 mm) | Black | $189.03 | |
10250-131 | 30" (762 mm) | Gray | $362.11 | |
10250-704 | 4" (101.6 mm) | Black | $159.14 | |
10250-718 | 18" (457.2 mm) | Black | $216.21 | |
10250-724 | 24" (609.6 mm) | Black | $255.94 | |
10250-709 | 9" (228.6 mm) | Black | $182.41 | |
10250-737 | 36" (914.4 mm) | Black | $412.71 | |
10250-124 | 24" (609.6 mm) | Gray | $255.94 | |
10250-E06 | 6" (152.4 mm) | Glacier White | $187.49 | |
10250-E37 | 36" (914.4 mm) | Glacier White | $454.01 | |
10250-E12 | 12" (304.8 mm) | Glacier White | $207.93 |
Product Description
Our most popular cable runway is designed for value conscious customers. The Universal Cable Runway offers the industry standard features you’ve come to expect. With the runway supported every 5’ (1.5 m), maximum load with minimal deflection is 132 lb/ft (59.9 kg).
Key Features and Benefits

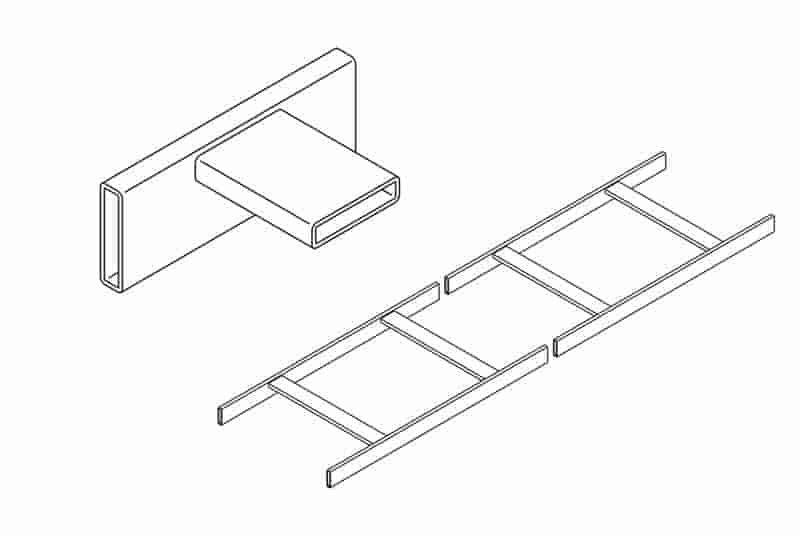

- Made of 3/8” x 1-1/2” x .065” (9.53 mm x 38 mm x 1.65 mm) wall rectangular steel tubing
- Cross members welded at 12” (300 mm) intervals
- Individually boxed to prevent scratches and damage
- Standard length is 9’-11 1/2”/119.5” (3035 mm)
- U.L. classified for suitability as an equipment grounding conductor (must remove paint from side stringers or use grounding strap)
- Installation Best Practices includes Runway Elevation Kit
Product Information
Design Tools
Key Features and Load Capacity of the Universal Cable Runway
The Universal Cable Runway provides a flexible, cost‑effective solution for organizing power and data cables in high‑density environments. Designed to integrate seamlessly with CPI's Cable Management portfolio, this cable runway delivers a clean, organized pathway that reduces clutter and improves airflow. Engineers value its UL‑listed construction for reliable grounding and long‑term durability. Each unit is fabricated from 3/8″ x 1‑1/2″ x 0.065″ (9.5 mm x 38 mm x 1.65 mm) rectangular steel tubing, with cross members welded at 12‑inch (300 mm) intervals for consistent rigidity. The components are individually boxed to prevent scratches during handling and shipping. Standard length runs 9‑ft - 11 ½‑in (2,935 mm), allowing easy adaptation to most rack and enclosure configurations. The runway is supported every 5 ft (1.5 m), delivering a maximum load of 132 lb/ft (59.9 kg) with minimal deflection, which is essential for supporting heavy cable bundles. This high load capacity ensures that the cable runway can accommodate future growth without additional reinforcement. The robust design also contributes to reduced vibration and enhanced system reliability. Installation best practices include the optional Runway Elevation Kit, which simplifies mounting at elevated positions for optimal cable routing. The universal cable tray design works with a variety of accessories, enabling quick configuration changes without specialized tools. Detailed specification sheets and CAD/BIM files are available to streamline engineering workflows. When paired with a cable ladder rack system, the Universal Cable Runway creates a comprehensive cable management architecture that supports both horizontal and vertical routing. Data center operators, hyperscale facilities, and enterprise networks benefit from the streamlined layout and improved maintenance access. CPI's global availability and rapid customization ensure that the solution aligns with project timelines and performance goals.
