BDM1A

BDM1A - Thumbnail 1
BDM1A - Thumbnail 2
BDM1A - Thumbnail 3

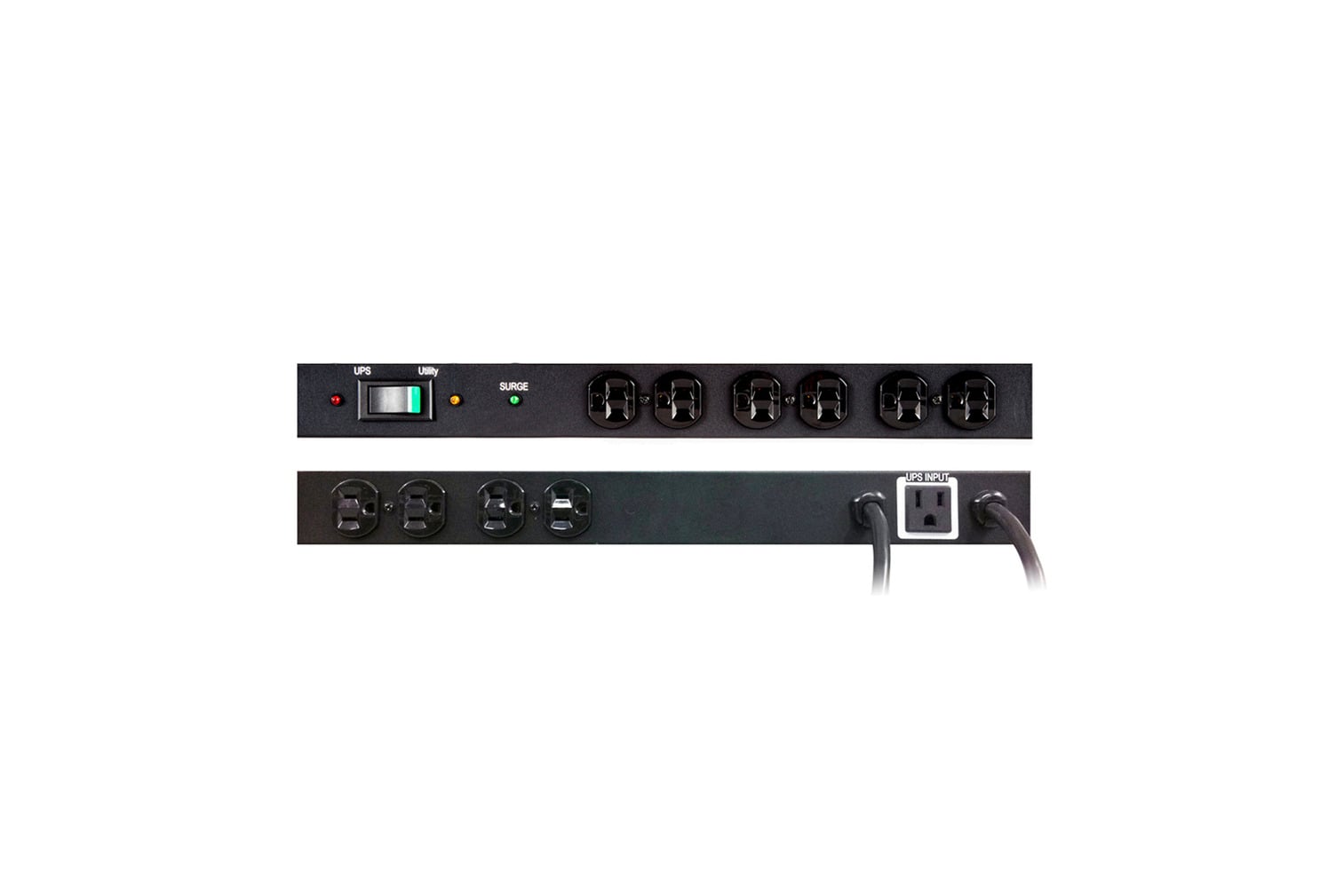

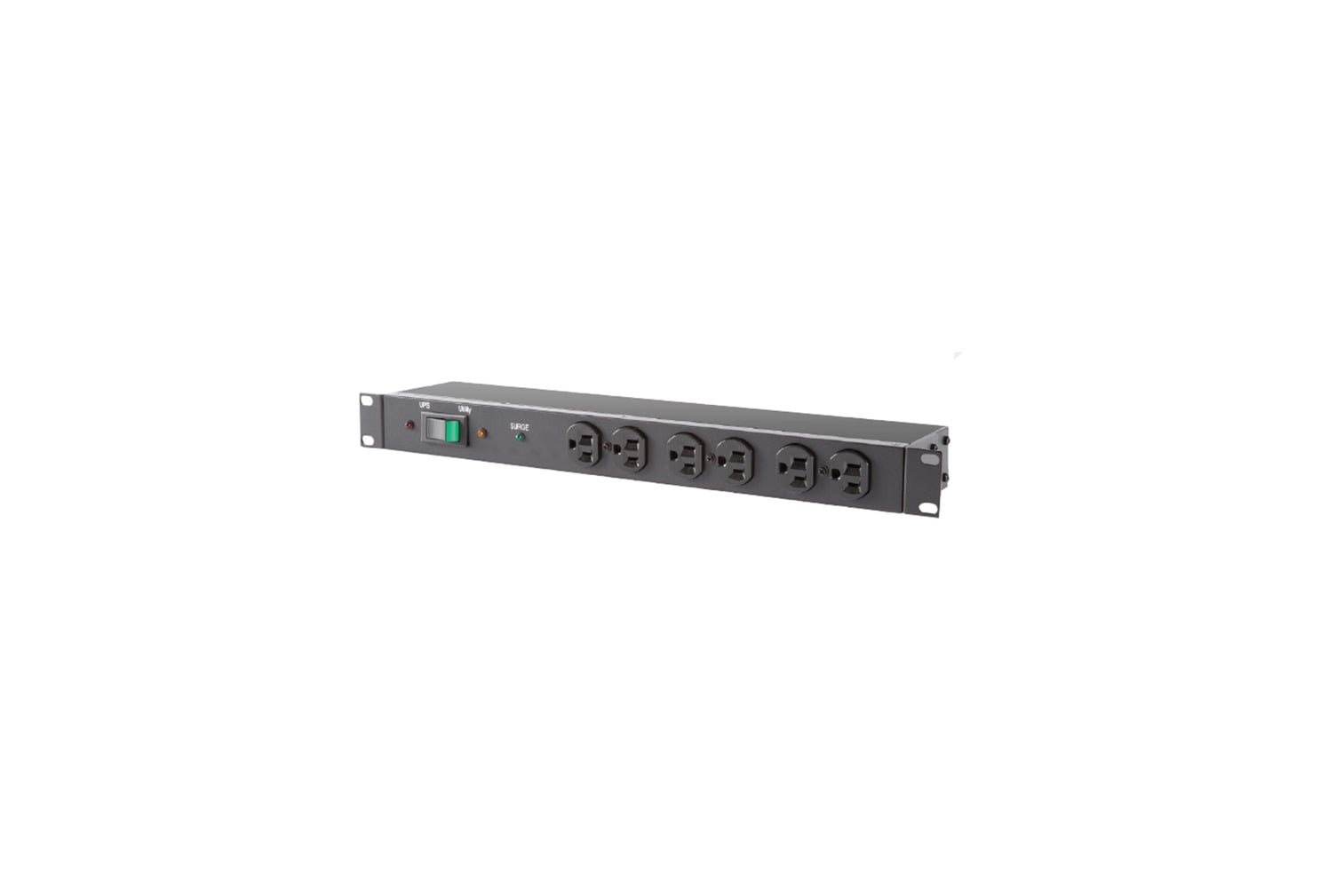

Maintenance Bypass Distribution Module; 1U; Single-Phase; 120V; 15A; 12'L (3.6 m) Input Cord with 5-15P; (6) 5-15R Outlets Front + (4) 5-15R Outlets Rear; 3 Year Warranty ; 1.75"H x 19"W x 3.5"D (45 mm x 489 mm x 89 mm); Black

MSRP $578.92
Input Plug5-15P
Nominal Input Voltage120V
Output Receptacles(6) 5-15R Outlets Front + (4) 5-15R Outlets Rear
Product Description

Manually transfer critical load from UPS power to utility power to prevent power interruption when repairing or replacing the UPS. Two styles are available. For 1kVA to 3kVA UPS, a 1U rack-mount module provide surge protection on input power and a toggle switch for easy transition between utility and UPS power. For 5kVA to 10kVA UPS, choose from several modules that attach to the rear of battery packs and provide several higher power output options.

Key Features and Benefits

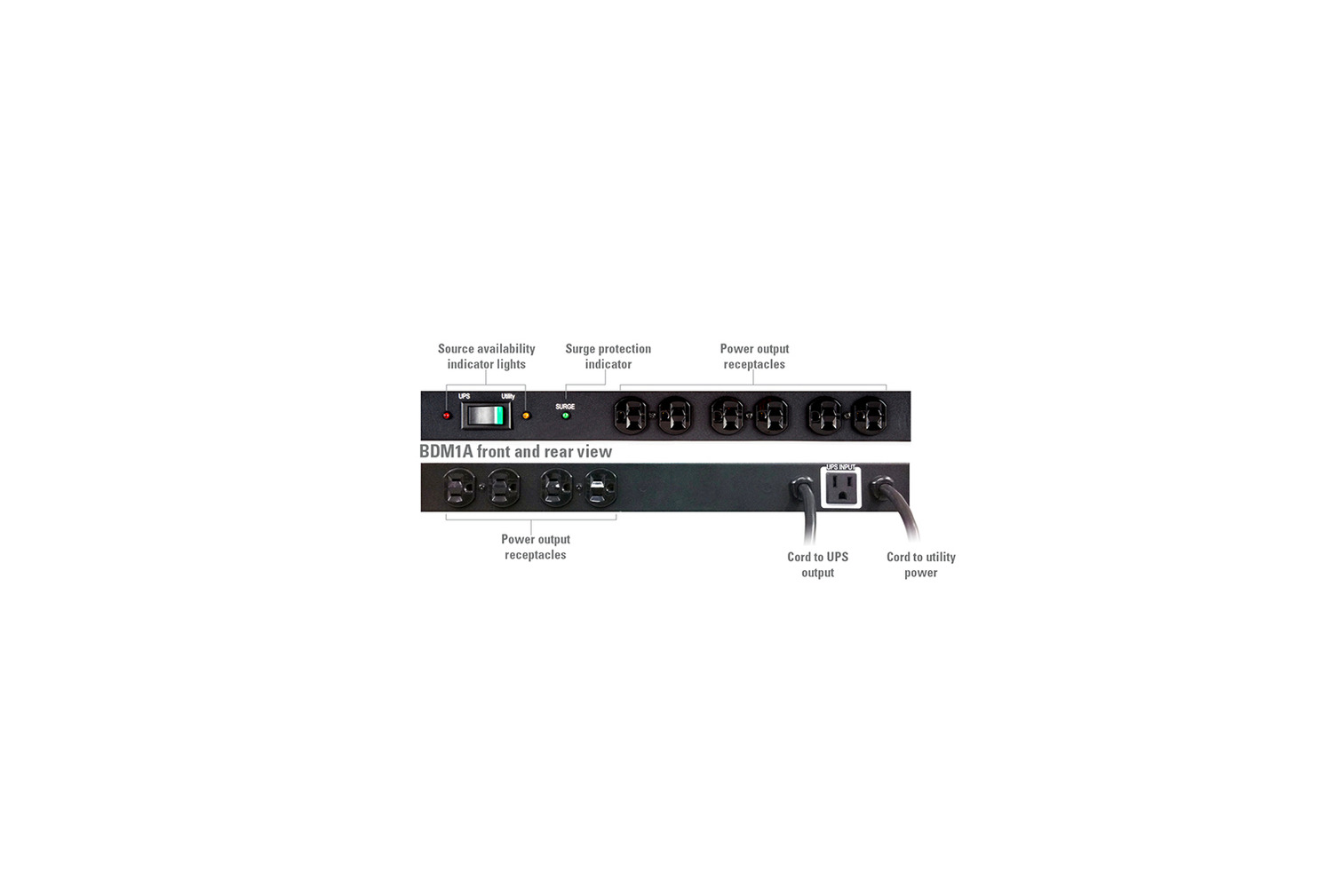

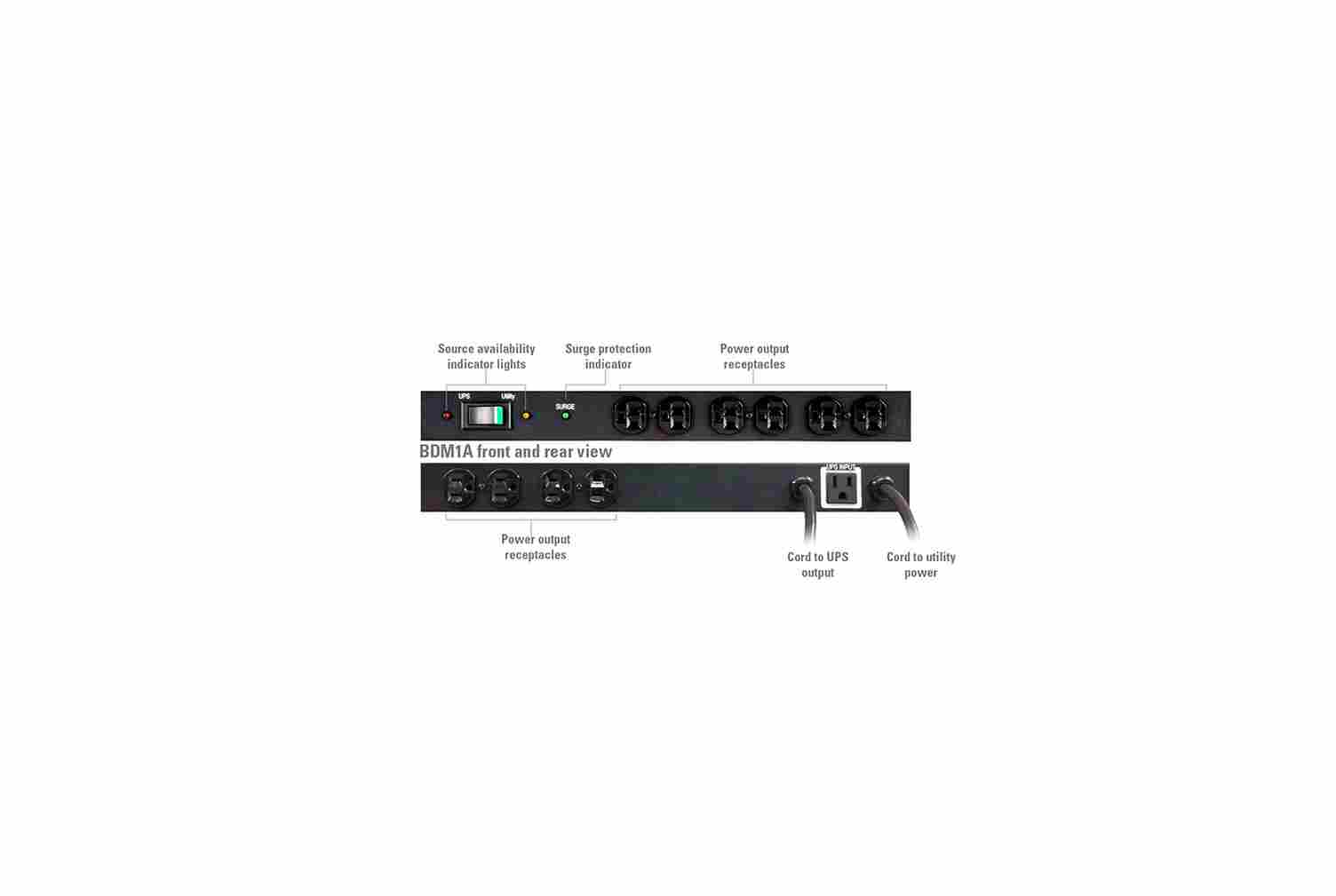

  • Power Distribution - Adds receptacles and bypass functionality with power distribution capability in one enclosure
  • Replace or service the UPS - while maintaining power to critical loads
  • Easy Installation - Both UPS and Utility power are connected with supplied cords
  • Simple to operate - LED Indicators verify availability of UPS and Utility sources prior to transfer of load
  • Surge protection on BDM1x models - loads are protected even when UPS is in bypass mode
What This Page Covers

BDM1A UPS Maintenance Bypass Distribution Module Features

The BDM1A UPS bypass thyristor module provides a reliable solution for maintaining power during UPS maintenance or repairs. This module allows manual transfer of critical loads from UPS power to utility power, preventing interruptions in operation. It features a compact 1U rack-mount design with easy installation and LED indicators for source verification.

Key features include surge protection on input power and a toggle switch for smooth transition between UPS and utility sources. The module offers multiple output receptacles front and rear for distributed power needs in data center environments. Its robust construction ensures durability and compliance with industry standards for safety and performance.

Benefits of using the BDM1A include the ability to service or replace the UPS without disrupting connected equipment, which is vital for uptime-sensitive applications. This UPS bypass module supports maintenance procedures by providing a dedicated path for utility power during UPS downtime. It also enhances system reliability with integrated surge protection even in bypass mode.

For government entities, UPS maintenance services are strengthened with the BDM1A module, offering a dependable bypass solution that meets stringent regulatory requirements. This module helps reduce the risk of power failures in critical public sector operations, such as data centers and communication hubs. Its design aligns with the needs for secure and continuous power in government facilities.

In summary, the BDM1A UPS bypass module is an essential component for any critical power infrastructure, combining distribution capabilities with maintenance bypass functionality. Chatsworth Products delivers this high-quality solution with global availability and expert support for various applications. Explore how this module can optimize your power management strategy today.
