E0-1271-E

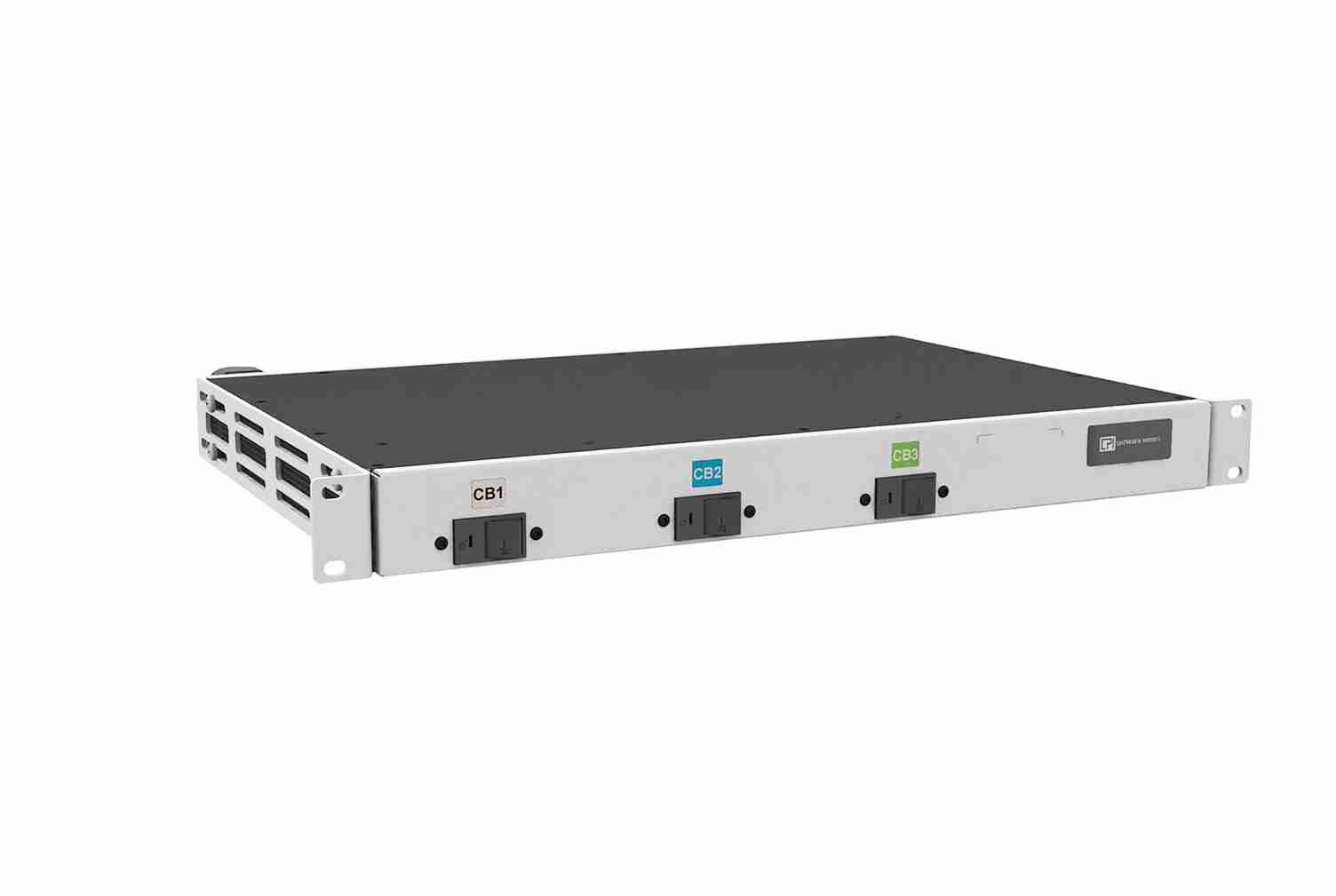

Basic eConnect PDU; Glacier White; Horizontal 1U; L6-30 Input; Locking (8) C13 + (4) C19 Outlets; 5kW; 149°F (65°C); 100% Rated Hydraulic Magnetic Breakers
| Plug | NEMA L6-30P |
| Outlets | (8) C13 Locking + (4) C19 Locking Outlets |
| Volts | 208V |
| Phase | Single-Phase |
| Input Current | 30A |
| kW Capacity | 5kW |
| Cabinet Compatibility | 1U or Higher |
| Color | Glacier White |
Product Description
Basic eConnect® PDUs provide reliable power distribution in high-density applications where no power monitoring is required.
Key Features and Benefits
- Resistance to High Temperature – Marketleading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles.
- Simplified Load Balancing – Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management.
- No Accidental Disconnections – Patented, low-profile locking outlets prevent accidental disconnections without requiring special cords.
- Easy Identification of Failover Unit – Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit.
- Latest UL Compliance – Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union.
- Cabinet Preinstallation – Complete ecosystem ships ready for IT equipment integration, and saves deployment time and reduces packaging waste.
- High Power Configurations – Configurations supporting up to 100A Input provide an optimized solution for GPU & AI based applications. 30A branch circuit breakers provide flexibility when plugging high power IT equipment.
- Quickly select and customize your solution with CPI consultation services.
- Universal Input – A single PDU design with detachable input cords supports global AC power standards, streamlining procurement, reducing inventory complexity, accelerating deployment, and ensuring reliable high-power performance across worldwide data centers.
Product Information
Key Benefits of the E0-1271-E Basic eConnect® PDU
The l630 PDU belongs to the Basic eConnect® PDU family, delivering reliable power management for dense data‑center environments. Its 5 kW capacity supports high‑performance compute and AI workloads without compromising efficiency. Designed for single‑phase 208 V input, the unit integrates seamlessly into standard 1U or larger enclosures. High‑temperature tolerance up to 149 degreesF (65 degreesC) ensures stable operation even when mounted toward hot aisles. Patented lockable C13 and C19 outlets prevent accidental disconnections while maintaining a low‑profile design. Phase‑balance options are available on three‑phase variants for optimal load distribution. The unit features UL® and IEC 62368 compliance, meeting the latest safety standards for North American and European markets. Its hydraulic magnetic breakers provide 100 % protection against over‑current events. The Glacier White finish blends with modern cabinet aesthetics. CPI's eConnect® software enables remote monitoring and control, allowing administrators to track power usage and respond to alerts instantly. Integration with CPI's Power IQ® platform further enhances energy‑efficiency analytics. The PDU's modular design simplifies installation and future upgrades. Customers benefit from CPI's global support network and rapid customization services. Technical assistance is available to tailor the PDU to specific power‑distribution requirements. The Basic eConnect® PDU line continues to set the standard for dependable, high‑density power solutions.
