E1-2125-E

E1-2125-E - Thumbnail 1
E1-2125-E - Thumbnail 2
E1-2125-E - Thumbnail 3
E1-2125-E - Thumbnail 4
E1-2125-E - Thumbnail 5

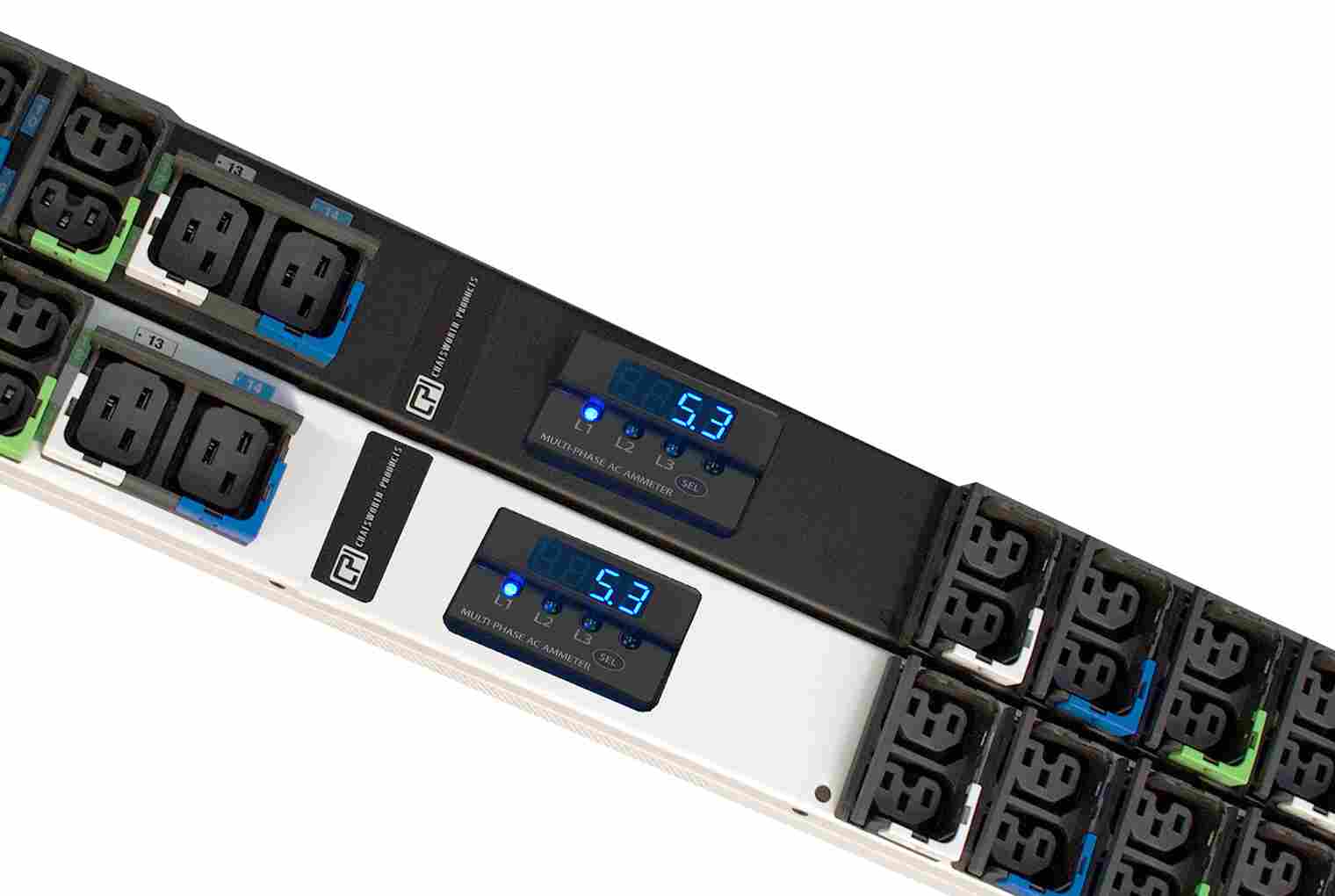

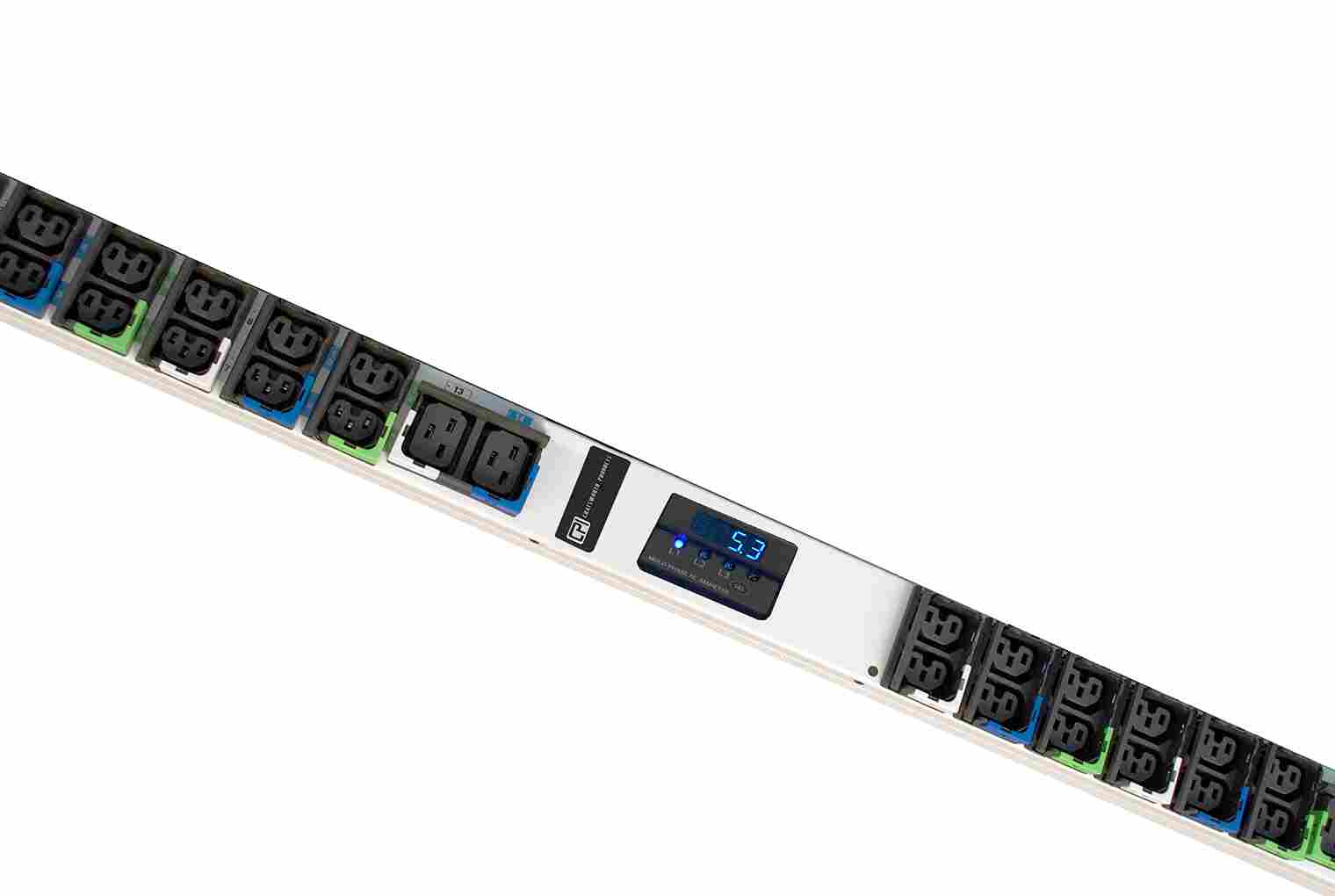

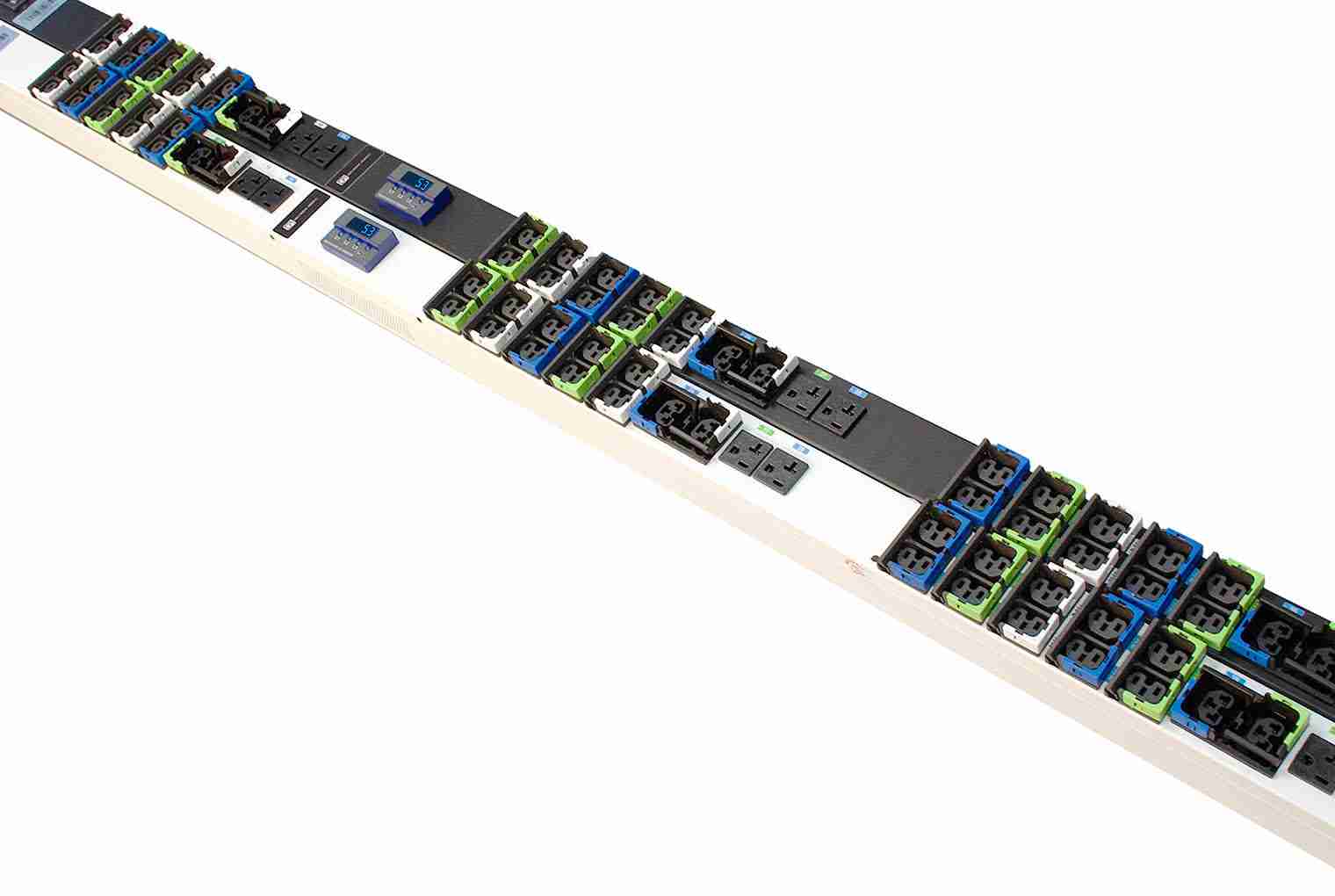

Metered eConnect PDU; White; Vertical; For 45U or Higher Cabinets; CS8365C Input; (54) C13 Outlets; 14.4kW; 149°F (65°C); Phase-Balance Locking Outlets; 100% Rated Hydraulic Magnetic Breakers; Local Meter; Tool-less Mounting

MSRP $2,313.76
PlugCS8365C
Outlets(54) C13 Locking Outlets
Volts208V
PhaseThree-Phase
Input Current50A
kW Capacity14.4kW
Cabinet Compatibility45U or Higher
ColorGlacier White
Height72" (1826 mm)
Width2.2" (56 mm)
Depth2.8" (71 mm)
Country Of OriginUS
BABA CompliantNo
TypeeConnect
Shipping Information
Product Description

Metered eConnect® PDUs feature a local display for easy reading of input current to help with initial installation and properly balanced operations.

Key Features and Benefits
  • Resistance to High Temperature – Marketleading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles.
  • Simplified Load Balancing – Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management.
  • No Accidental Disconnections – Patented, low-profile locking outlets prevent accidental disconnections without requiring special cords.
  • Easy Identification of Failover Unit – Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit.
  • Latest UL Compliance – Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union.
  • Cabinet Preinstallation – Complete ecosystem ships ready for IT equipment integration, and saves deployment time and reduces packaging waste.
  • High Power Configurations – Configurations supporting up to 100A Input provide an optimized solution for GPU & AI based applications. 30A branch circuit breakers provide flexibility when plugging high power IT equipment.
