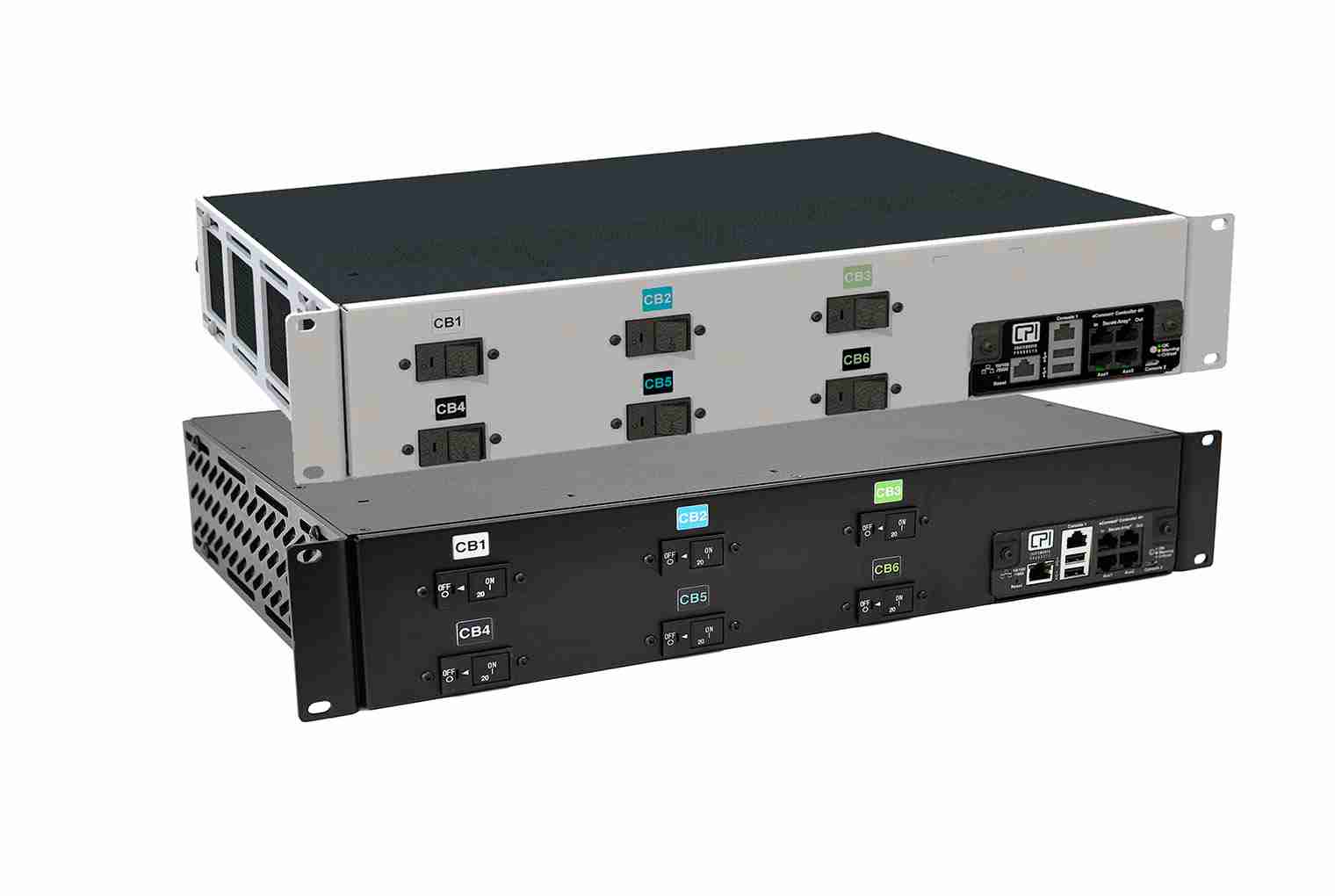

EA-3469-CE

Monitored eConnect PDU; Redundancy Pack; 1 Black/1 Glacier White; Horizontal 2U; L14-30 Input; Locking (12) C13 + (6) C19 + (4) 5-20 Outlets; 5kW; 149°F (65°C); Secure Array IP Consolidation; Field-Replaceable Controller; +/-1% Metering Accuracy; 10/100/1000MB Port; Onboard GUI; SNMPv1/v2/v3; RESTful API; CLI; LDAP or RADIUS Integration; HTTPS; Environmental Sensor and Electronic Lock Integration Ready; 100% Rated Hydraulic Magnetic Breakers

MSRP $3,836.41
PlugNEMA L14-30P
Outlets(12) C13 Locking + (6) C19 Locking + (4) 5-20 Standard Outlets
Volts120/208V
PhaseSingle-Phase
Input Current30A
kW Capacity5kW
Cabinet Compatibility2U or Higher
Color1 Black + 1 Glacier White
Product Description

Monitored eConnect® PDUs provide remote power monitoring to the input and branch circuit level, making it possible to obtain and manage power consumption at the cabinet level.

Key Features and Benefits

  • Reduced Networking Costs and Complexity – Secure Array® allows the use of a single IP address for up to 48 connected PDUs (32 when electronic locks are integrated). Second IP address for the entire array provides failover capability.
  • Resistance to High Temperature – Marketleading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles.
  • Simplified Load Balancing – Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management.
  • No Accidental Disconnections – Patented, low-profile locking outlets prevent accidental disconnections without requiring special cords
  • Easy Identification of Failover Unit – Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit.
  • Electronic Lock Integration – Patented technology seamlessly integrates PDU, environmental sensors and electronic locks into a single hardware and software solution
  • Gigabit Ethernet – Ensures compatibility with enterprise routers and switches.
  • Latest UL Compliance – Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union.
  • Cabinet Preinstallation – Complete ecosystem ships ready for IT equipment integration, and saves deployment time and reduces packaging waste.
  • High Power Configurations – Configurations supporting up to 100A Input provide an optimized solution for GPU & AI based applications. 30A branch circuit breakers provide flexibility when plugging high power IT equipment.
  • Universal Input – A single PDU design with detachable input cords supports global AC power standards, streamlining procurement, reducing inventory complexity, accelerating deployment, and ensuring reliable high-power performance across worldwide data centers.
What This Page Covers

Key Benefits of Remote Power Monitoring with EA-3469-CE

The EA-3469-CE Monitored eConnect PDU delivers a robust Power Distribution Unit solution designed for modern data‑center environments. Its built‑in monitoring capabilities enable precise measurement of inlet and branch‑circuit consumption. By pairing the unit with CPI's eConnect® platform, operators gain a single pane of glass for power intelligence. Remote power monitoring is embedded at the hardware level, allowing real‑time visibility of load trends without the need for additional sensors. The data is accessible via SNMPv1/v2/v3, RESTful API, and optional CLI, supporting integration with existing DCIM tools. This insight helps facility managers balance loads, reduce energy waste, and meet sustainability goals. Secure Array® IP consolidation reduces networking complexity by supporting up to 48 PDUs on a single IP address, with a secondary address for failover. The EA-3469-CE takes advantage of this technology to streamline cable management and improve reliability in high‑density racks. When electronic locks are added, the same Secure Array network also secures access and environmental sensors. The Monitored eConnect PDU includes an onboard graphical user interface that simplifies configuration and firmware updates. LDAP and RADIUS integration enable role‑based access control, while HTTPS ensures encrypted communication. Together, these features provide a secure, manageable foundation for AI‑driven workloads and high‑performance computing. Choosing the EA-3469-CE equips data centers with a future‑ready Power Distribution Unit that scales alongside growing power demands. Its combination of remote power monitoring, Secure Array® consolidation, and open APIs delivers both operational efficiency and peace of mind. Contact a CPI distributor today to explore deployment options.
