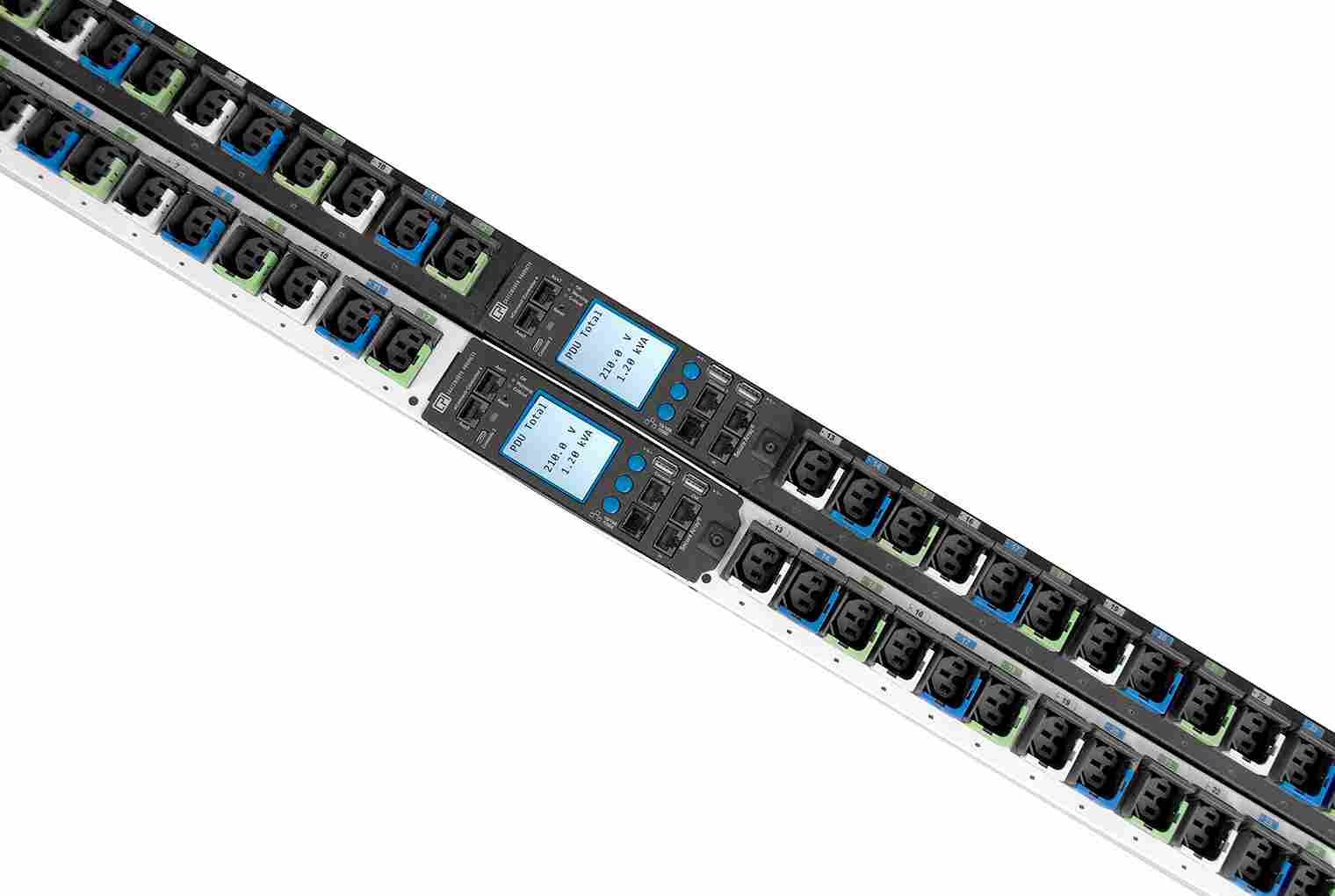

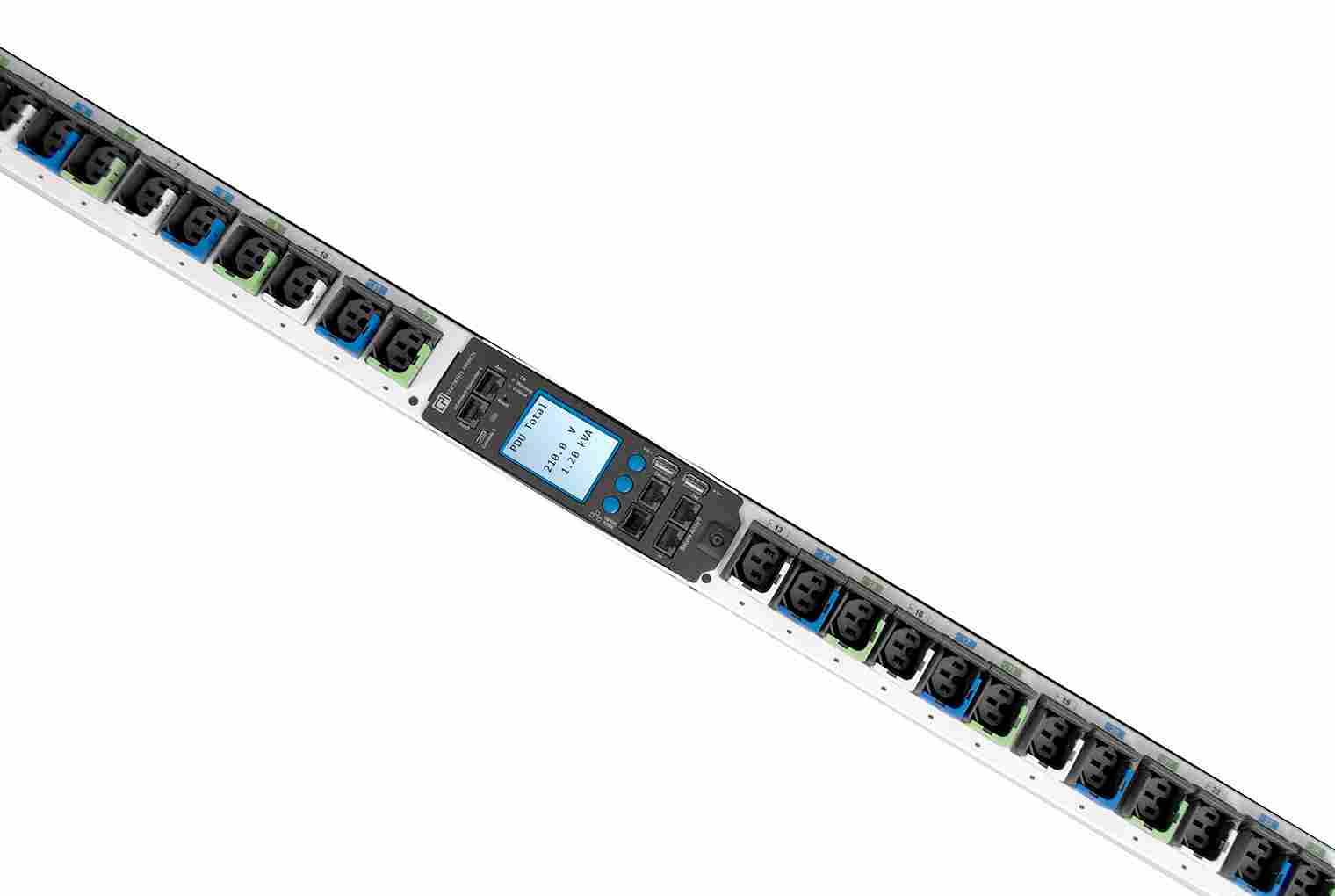

Monitored Pro eConnect PDU
Explore Sizes & Options
| Add to Cart Add | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
EA-41B1-C | IEC 60309 100A 3P+E | (24) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 45U or Higher | Black | $5,153.65 | |
EA-4150-CE | AC Terminal Block 3P4W | (24) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 45U or Higher | 1 Black + 1 Glacier White | $7,902.14 | |
EA-4049-CE | IEC 60309 60A 3P+N+E | (24) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | 1 Black + 1 Glacier White | $8,093.09 | |
EA-4049-E | IEC 60309 60A 3P+N+E | (24) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | Glacier White | $4,129.16 | |
EA-4150-E | AC Terminal Block 3P4W | (24) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 45U or Higher | Glacier White | $4,031.86 | |
EA-4150-C | AC Terminal Block 3P4W | (24) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 45U or Higher | Black | $4,031.86 | |
EA-4771-C | NEMA L15-30P | (36) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 30A | 8.6kW | 45U or Higher | Black | $3,492.07 | |
EA-4772-C | NEMA L21-30P | (36) C13 Locking + (12) C19 Locking Outlets | 120/208V | Three-Phase | 30A | 8.6kW | 45U or Higher | Black | $3,512.27 | |
EA-4049-C | IEC 60309 60A 3P+N+E | (24) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 42U or Higher | Black | $4,129.16 | |
EA-41B1-CE | IEC 60309 100A 3P+E | (24) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 45U or Higher | 1 Black + 1 Glacier White | $10,101.67 | |
EA-41B1-E | IEC 60309 100A 3P+E | (24) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 45U or Higher | Glacier White | $5,153.65 | |
EA-4765-C | IEC 60309 32A 3P+N+E | (36) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 32A | 23kW | 45U or Higher | Black | $3,921.70 | |
EA-4762-C | CS8365C | (36) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 50A | 14.4kW | 45U or Higher | Black | $4,435.78 | |
EA-47B3-C | IEC 60309 100A 3P+E | (36) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 45U or Higher | Black | $5,968.84 | |
EA-4763-C | IEC 60309 60A 3P+E | (36) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 60A | 17.2kW | 45U or Higher | Black | $4,545.94 | |
EA-4754-C | CS8365C | (48) C13 Locking Outlets | 208V | Three-Phase | 50A | 14.4kW | 45U or Higher | Black | $4,435.78 | |
EA-4753-C | NEMA L21-30P | (48) C13 Locking Outlets | 120/208V | Three-Phase | 30A | 8.6kW | 45U or Higher | Black | $3,512.27 | |
EA-4766-C | IEC 60309 60A 3P+N+E | (36) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 45U or Higher | Black | $4,450.46 | |
EA-4768-C | AC Terminal Block 3P5W | (36) C13 Locking + (12) C19 Locking Outlets | 220-240/380-415V | Three-Phase | 60A | 34.5kW | 45U or Higher | Black | $3,973.10 | |
EA-4767-C | AC Terminal Block 3P4W | (36) C13 Locking + (12) C19 Locking Outlets | 208V | Three-Phase | 100A | 28.8kW | 45U or Higher | Black | $4,847.04 |
Product Description
Monitored Pro eConnect® PDUs provide remote power monitoring down to the outlet level, making it possible to obtain power consumption for each piece of equipment.
Key Features and Benefits
- Reduced Networking Costs and Complexity – Secure Array® allows the use of a single IP address for up to 48 connected PDUs (32 when electronic locks are integrated). Second IP address for the entire array provides failover capability.
- Resistance to High Temperature – Market-leading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles.
- Simplified Load Balancing – Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management.
- No Accidental Disconnections – Patented, low-profile locking outlets prevent accidental disconnections without requiring special cords.

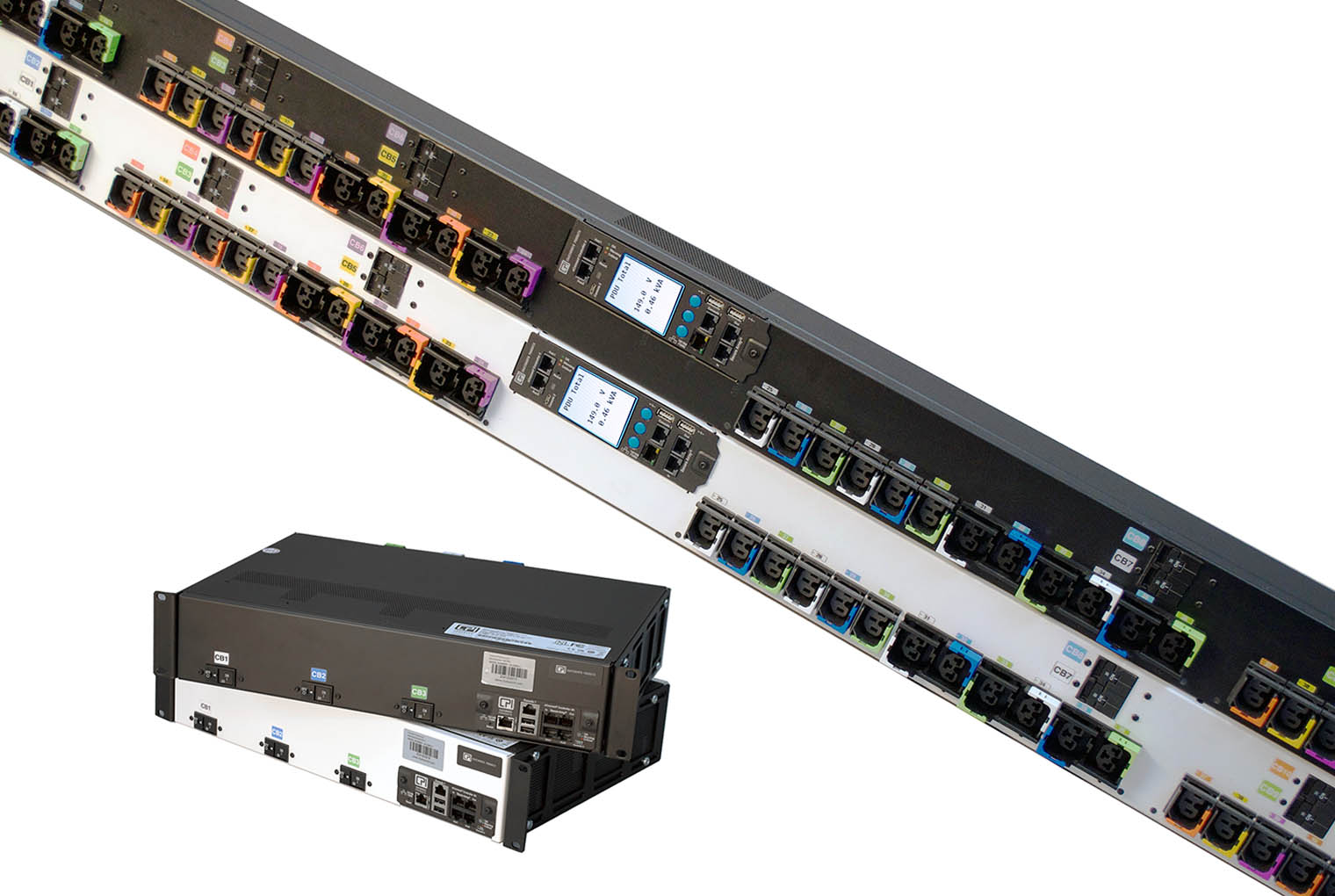

- Easy Identification of Failover Unit – Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit.
- Electronic Lock Integration – Patented technology seamlessly integrates PDU, environmental sensors and electronic locks into a single hardware and software solution.
- Gigabit Ethernet – Ensures compatibility with enterprise routers and switches.
- Latest UL Compliance – Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union.
- Cabinet Preinstallation – Complete ecosystem ships ready for IT equipment integration, and saves deployment time and reduces packaging waste.
- High Power Configurations – Configurations supporting up to 100A Input provide an optimized solution for GPU & AI based applications. 30A branch circuit breakers provide flexibility when plugging high power IT equipment.
Product Information
Key Features of Monitored PDU Power Monitoring
The Monitored PDU delivers precise, real‑time visibility into power usage for every outlet in a rack. By aggregating data at the device level, it enables data‑center operators to identify inefficiencies before they impact workloads. This level of insight is essential for modern high‑density environments. Built‑in PDU monitoring supports granular C19 monitoring, allowing users to see exact consumption of high‑current equipment. The system records voltage, current and energy metrics for each C19 circuit, facilitating accurate capacity planning. Operators can set thresholds and receive alerts to prevent overloads. Integration with eConnect® provides a single IP address for up to 48 PDUs through Secure Array® technology, simplifying network architecture. Gigabit Ethernet connectivity ensures fast data transmission and seamless compatibility with existing data‑center routers. The platform also supports remote firmware updates and centralized configuration. Designed for flexible deployment, the Monitored PDU fits a range of cabinet PDU configurations from 1U to 4U heights. It accommodates both single‑phase and three‑phase power inputs, making it suitable for diverse data‑center layouts. The rugged enclosure meets UL and IEC standards for reliable operation in harsh environments. By choosing a Monitored PDU with advanced PDU monitoring, organizations reduce operational costs and improve uptime. The solution scales with expanding infrastructure, delivering consistent performance as power demands grow. Contact a CPI sales specialist to explore customized configurations for your facility.
