14667-001

14667-001 - Thumbnail 1
14667-001 - Thumbnail 2

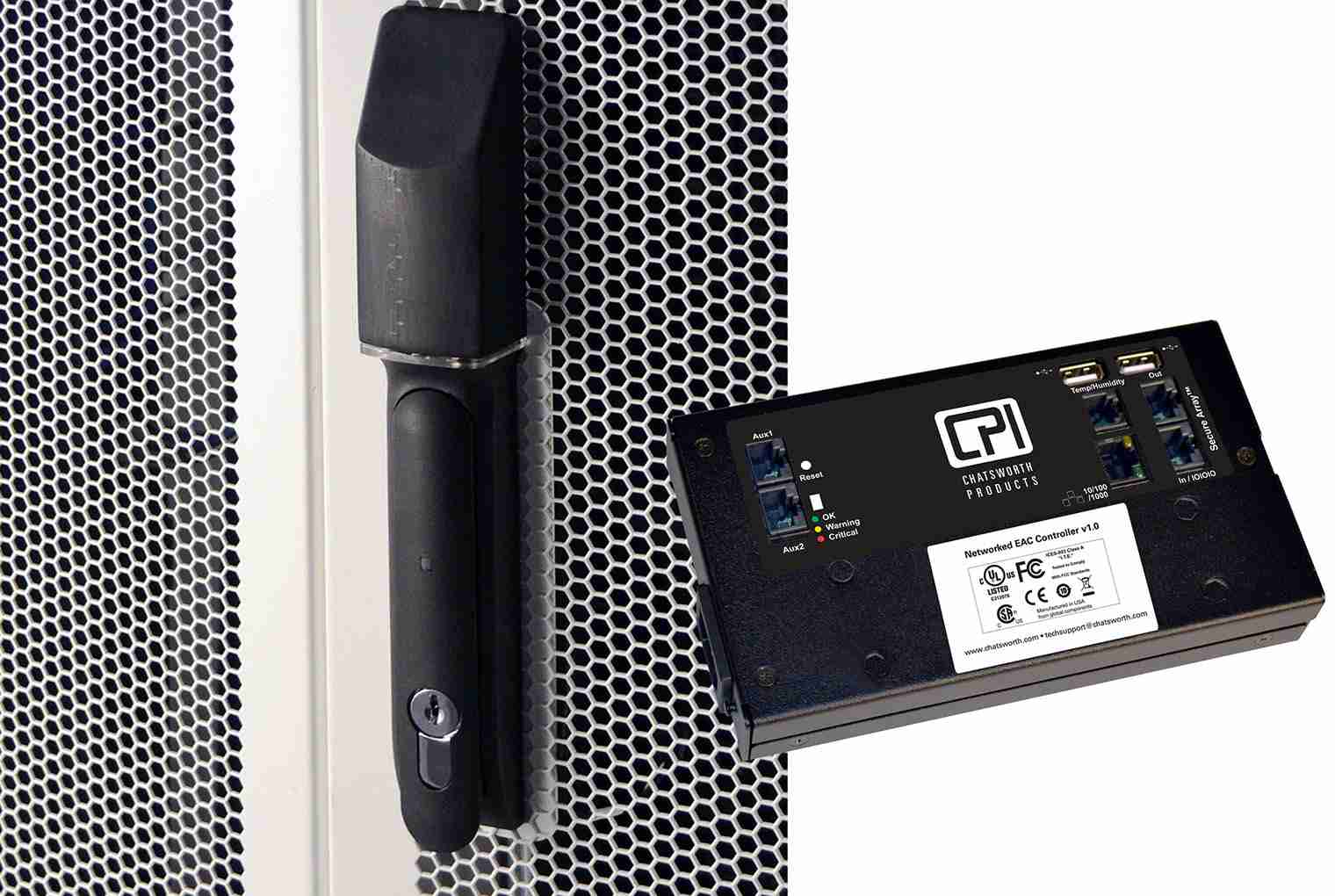

Networked RFID Electronic Lock Kit; For GlobalFrame and TeraFrame cabinet systems; Includes controller module with Gigabit Ethernet port and built-in web interface; Front and rear door locks; 3 Door switches; 2 Wiring harnesses; 2 Mechanical override keys

MSRP $2,538.13
TypeNetworked RFID Electronic Lock Kit
Height1.37" (34.9 mm)
Width7" (178 mm)
Depth4" (102 mm)
Country Of OriginUS
BABA CompliantYes
Ship Width19" (48 cm)
Ship Length/Depth18" (457 mm)
Ship Height4" (10 cm)
Shipping Weight7 LB (3.18 kg)
Product Description

The Electronic Lock Kit solution can be preinstalled in CPI Cabinets and features swinghandles with integrated dual-frequency card reader technology. Audit trail capability allows for enhanced regulatory compliance.

Key Features and Benefits
  • Integrated RFID Card Reader – Separate lock options recognize existing employee 125 kHz or 13.56 MHz RFID cards, including HID, iClass®, MIFARE® and DESFire technologies
  • Future-proof Design – Modular reader allows the use of the same swing-handle as card technologies evolve
  • Flexible Management – Multiple methods of integration: through eConnect PDUs, networked controller or building security access control system
  • Regulatory Compliance – Allows audit trail to be maintained for every access attempt within DCIM software or access control systems in order to comply with HIPAA, PCI DSS, GDPR, FISMA, Saas SOC 2®, HITECH and more
  • eConnect Integration – Eliminates the need for a separate IP address or a separate source of power for the lock. Saves significant deployment costs normally associated with wiring the locks to security panels
  • Remote Access Control – Ability to remotely open/close doors allows administrators to provide access to contractors without badges
  • Centralized Authentication – Ability to use the permissions set within RADIUS server to provide higher levels of security

  • eConnect® RFID Electronic Lock Kit
    Kit includes:
    • Integration with eConnect PDU and environmental monitoring into a single platform and web interface
    • Front and rear swinghandles
    • 3 door sensors (front and rear doors)
    • 2 wiring harnesses (for front and rear connection)
    • 2 mechanical override keys

  • Networked RFID Electronic Lock Kit
    Kit includes:

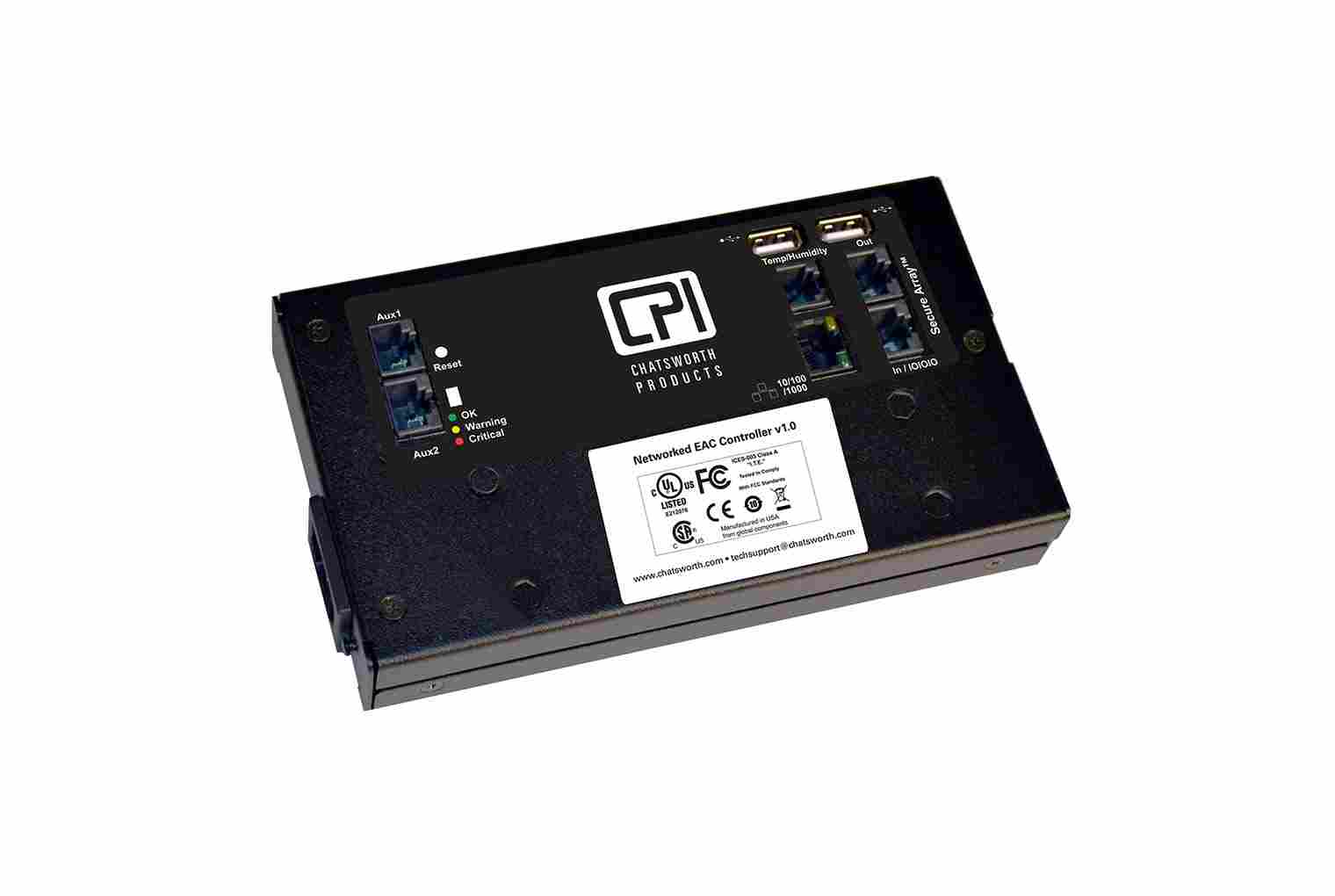

    • Controller module with Gigabit Ethernet port & built-in web interface
    • Secure Array IP Consolidation for up to 16 cabinets
    • Capability to integrate with USB Temperature and Humidity Sensor
    • Front and rear swinghandles
    • 3 door sensors (front and rear doors)
    • 2 wiring harnesses (for front and rear connection)
    • 2 mechanical override keys

  • Security System RFID Electronic Lock Kit
    Kit features:
    • Security System Integration Kit for Wiegand-based security panels
    • Supports connection of two separate channels for independent system control
    • Front and rear swinghandles
    • 3 door sensors (front and rear doors)
    • 2 wiring harnesses (for front and rear connection)
    • 2 mechanical override keys
