12394-701

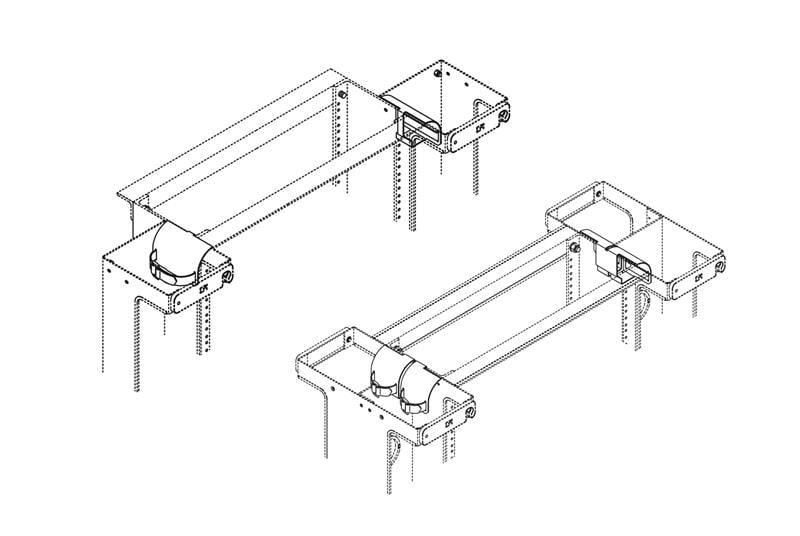

Rack Radius Drop; for Use with Double-Sided Vertical Cabling Section; Black
| Type | For Double-Sided Vertical Cable Section |
| Color | Black |
Product Description
Cable bundles are held securely in place on the Rack Radius Drop by using the included Saf-T-Grip® Center Grommet Buckle Cable Management Straps.
Key Features and Benefits
- Three styles are available:
- 3” (80 mm) or 6” (150 mm) rack channels without vertical rack cabling sections use P/N 12392-X06, 3”(80 mm) or 12392-X09, 6”(150 mm)
- Single sided vertical rack cabling managers use P/N 12393-X01
- Double sided vertical rack cabling managers use P/N 12394-X01
- Provides an organized method to transition from horizontal cable run onto the rack while maintaining bend radius; styles offered for use with or without vertical rack cabling sections
- Provides 1-1/2” (38 mm) bend radius
- Quick and easy slip-on installation onto rack channel
- Sold individually
Product Information
Key Features of the 12394 Rack Radius Drop
The 12394 Rack Radius Drop delivers reliable radius channel management for vertical cabling installations. Designed for double‑sided vertical cable sections, it maintains a consistent 1‑1/2‑inch (38 mm) bend radius. This ensures cable integrity while simplifying the transition from horizontal runs to the rack. Installation is a quick slip‑on process that fits standard 19‑inch rack channels without tools. The component aligns precisely with the rack's vertical plane, eliminating the need for additional brackets. Engineers can secure the drop in minutes, reducing deployment time. The accessory pairs with part number 12394‑X01 for double‑sided configurations and with 12393‑X01 for single‑sided setups. Its black finish blends with typical enclosure aesthetics while providing a durable surface. The design supports both 3‑inch (80 mm) and 6‑inch (150 mm) channel widths. Cable bundles are held firmly using the included Saf‑T‑Grip® Center Grommet Buckle straps, preventing movement during vibration. These straps distribute pressure evenly across the cable bundle, protecting individual fibers. The secure hold contributes to organized cable pathways and easier maintenance. By preserving proper bend radius and organizing cables, the Rack Radius Drop improves airflow within the enclosure. Better airflow reduces cooling costs and supports high‑density equipment deployments. The solution aligns with CPI's commitment to quality and performance in data‑center environments.
