1006-ARAP505

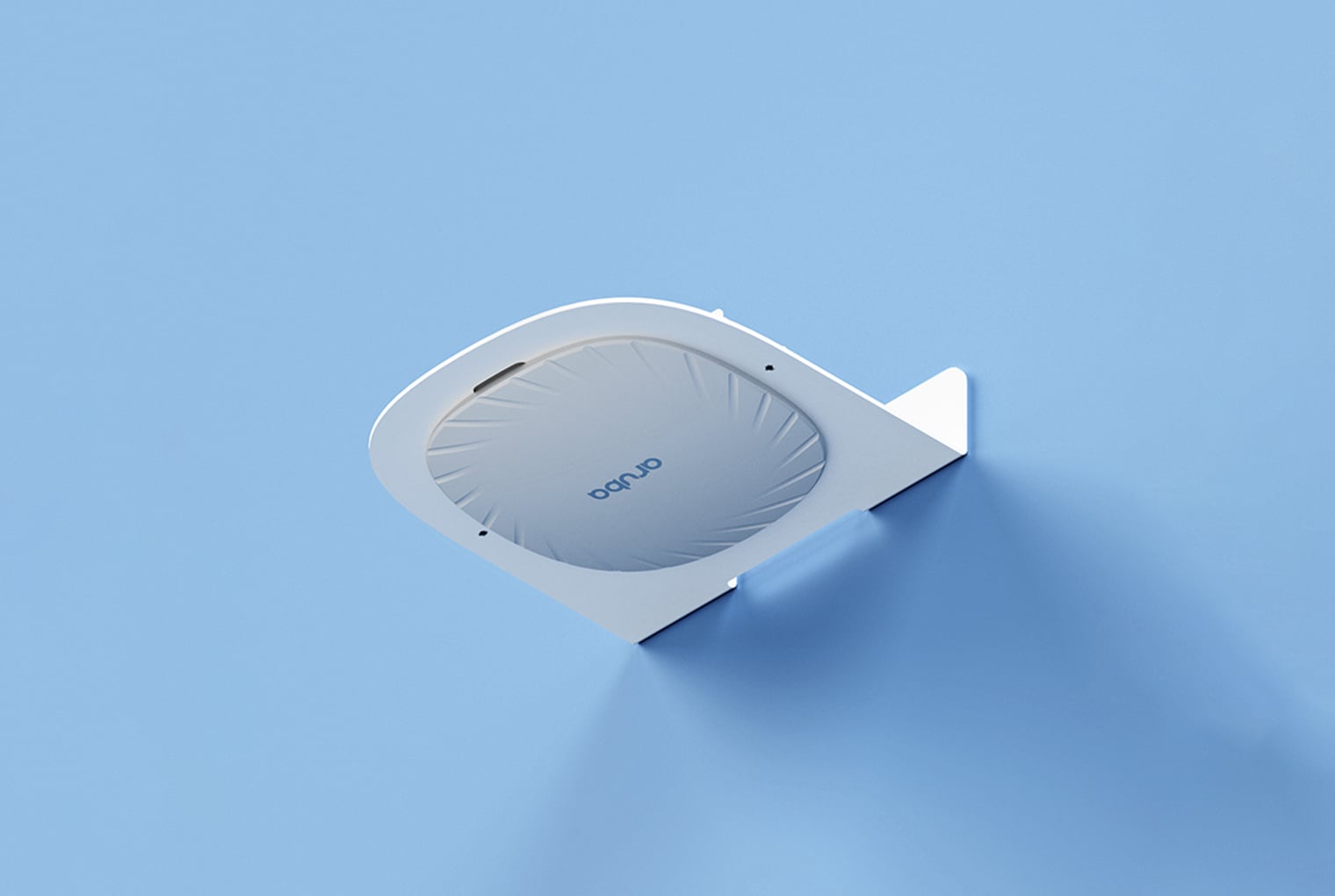

Right-Angle Wi-Fi Access Point Wall Bracket for Aruba AP-505
| Access Point Vendor | Aruba |
| Access Point Model | Aruba AP-505 |
Product Description
Many Wi-Fi and Small Cell AP manufacturers recommend that their APs be mounted in a horizontal orientation for optimal wireless coverage. In locations where the APs are to mounted on the wall, Oberon® H-Plane™ Right-Angle Surface Mounts 1006 permit the AP to be mounted in the preferred horizontal orientation. With the 1006 series, the AP is partially recessed into the right-angle bracket, exposing only the antenna face of the AP, providing for the ideal combination of aesthetics and wireless coverage. Available for leading AP makes and models.
Key Features and Benefits
- Conveniently and aesthetically install APs from leading vendors on walls
- Enables APs to be mounted in preferred horizontal orientation
- AP is partially recessed into bracket, providing aesthetic appearance
- Can be mounted directly over telecommunications outlet
- AP installs without lose hardware
Technical Specifications
- Design: Right-angle mounting bracket for securing APs on walls. Designed to mount the AP in the preferred horizontal orientation. Designs available for leading AP makes and models (see Styles table)
- AP is partially recessed into bracket, providing aesthetic appearance
- AP can be secured using manufacturer's locking features
- Construction: 10 Ga. white powder-coated aluminum
- Size: See Styles Table
- Made in the USA
Product Includes:
- (1) Right-Angle Bracket
- (1) AP mounting plate
- (2) hollow tip wall anchors
- (2) white plastic bolt head covers
- (1) Installation instructions
Access Point Vendor
- Aruba
Access Point Model
- Aruba AP-505
Product Information
Key Benefits of the Oberon® H‑Plane™ Wall Mount
The Oberon® H‑Plane™ Right‑Angle Surface Mount provides a dedicated aruba ap wall mount solution that positions the antenna face forward for maximum signal propagation. Designed for the Aruba AP‑505, this aruba wall mount enables a horizontal orientation while keeping the unit recessed for a clean appearance. Installation requires only the supplied hardware and standard wall anchors, allowing rapid deployment in data center or enterprise environments. Because the mount secures the access point directly over a telecommunications outlet, cabling remains organized and maintenance access is simplified. The bracket's 10‑ga white powder‑coated aluminum construction offers durability without compromising aesthetics, making it ideal for both new builds and retrofits. This aruba wall mount ap configuration eliminates the need for additional mounting hardware, reducing overall installation time. The right‑angle design ensures the AP's antenna is unobstructed, delivering reliable coverage in dense deployments such as hyperscale or multitenant data centers. Customers benefit from the ability to mount the device in the preferred horizontal orientation, which improves Wi‑Fi performance compared with vertical installations. The Oberon® solution aligns with CPI's commitment to quality, global availability, and rapid customization. Technical documentation, including a spec sheet and step‑by‑step installation guide, is available for download to assist engineers and installers. All components are made in the USA, reinforcing CPI's focus on high‑quality manufacturing and supply‑chain reliability. The mount integrates seamlessly with other Oberon® accessories, providing a scalable platform for future wireless upgrades. By selecting the Oberon® H‑Plane™ wall mount, organizations can achieve a professional look while maintaining optimal network performance. The design supports secure attachment using the Aruba AP‑505's built‑in locking features, ensuring the equipment remains in place even in high‑traffic areas. CPI's worldwide distributor network makes the product readily accessible for enterprises, colocation facilities, and edge deployments.
