Oberon H-Plane Right-Angle Surface Mounts 1011
Explore Sizes & Options
| Add to Cart Add | ||||||
|---|---|---|---|---|---|---|
1011-00-MT | Various | Various | No Lock | Metallic | $99.00 | |
1011-L-MT | Various | Various | Keyed Lock | Metallic | $110.00 | |
1011-00-WH | Various | Various | No Lock | White | $99.00 | |
1011-L-WH | Various | Various | Keyed Lock | White | $110.00 | |
1011-L-BK | Various | Various | Keyed Lock | Black | $110.00 | |
1011-00-BK | Various | Various | No Lock | Black | $99.00 |
Product Description

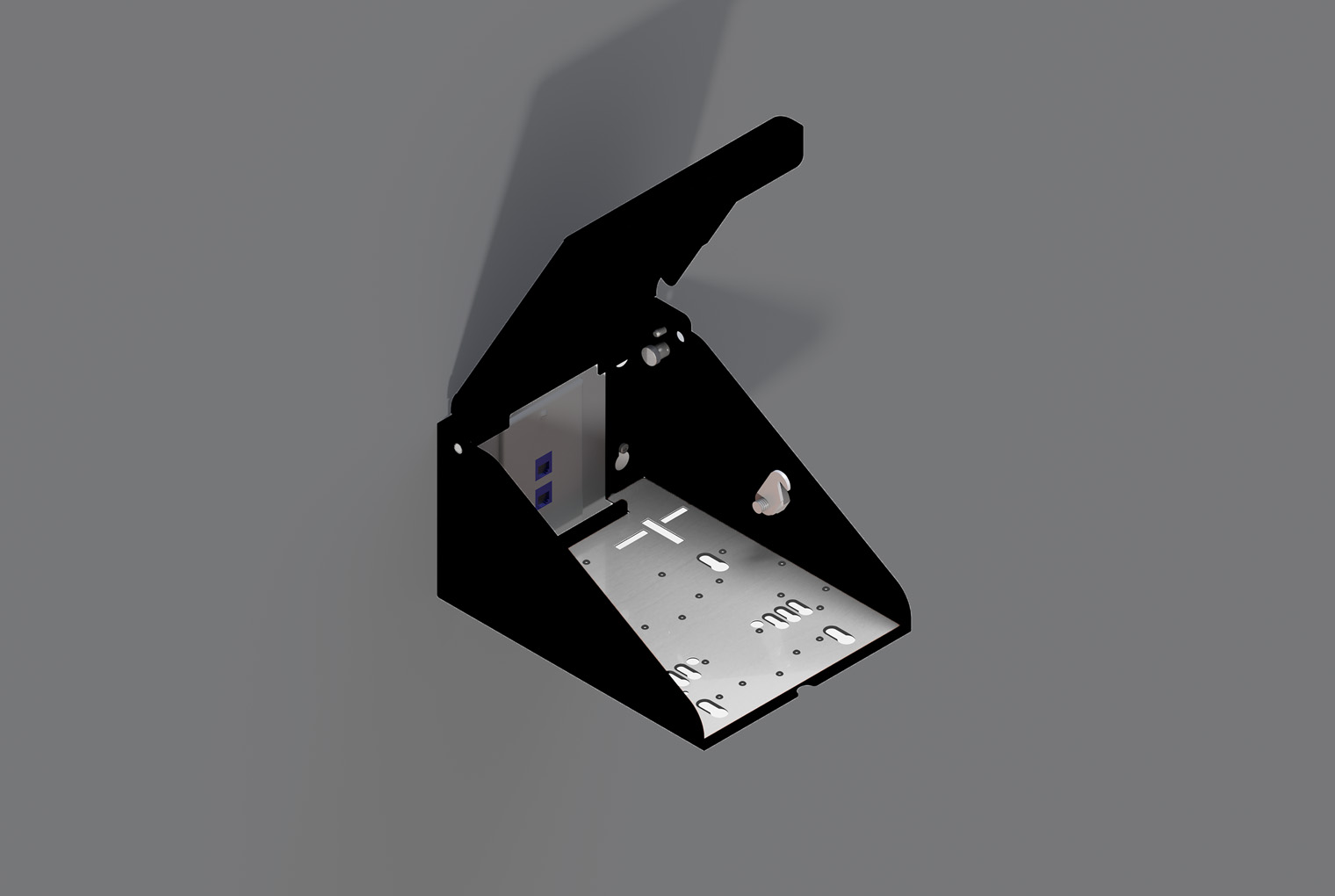

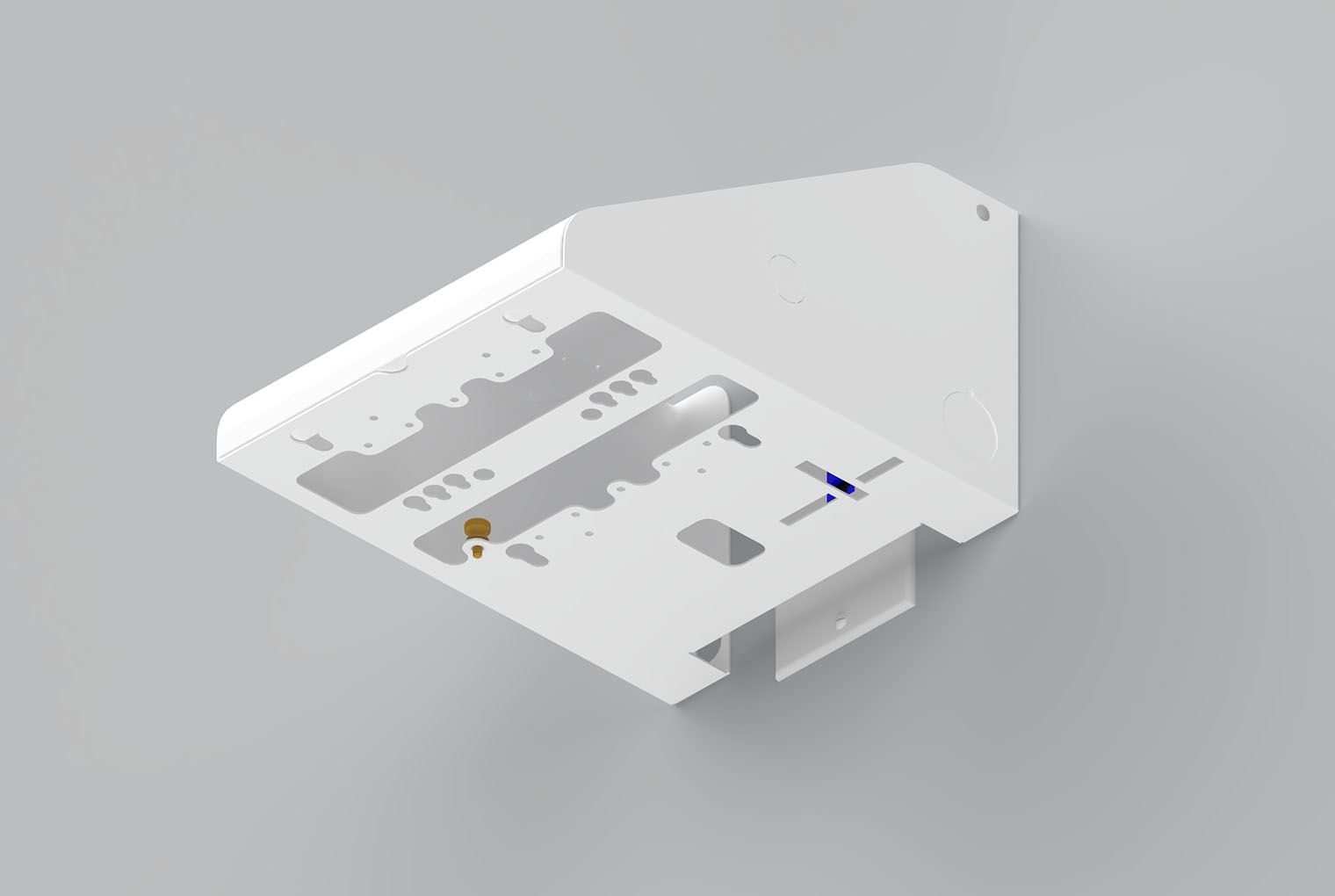

Achieve optimal wireless coverage by mounting Wi-Fi AP in preferred horizontal orientation on walls. This Oberon® H-Plane™ Right-Angle Surface Mounts 1011 has a hinged, snap-down cover and sidewalls to help conceal cabling and can be placed directly over a data outlet. 1011 includes integrated mounting features for Cisco and Aruba Networks APs and a universal T-bar for most other vendors’ APs. Attractive powder-coated paint finish. Ideal for hard lid environments such as hotels and retails spaces where the AP cannot be attached to the ceiling. 1011- is availabe with a snap-down (-00) or locking cover (-L) in a white (-WH), black (-BK) or metallic (-MT) finish. Add an accessory Access Point Cover to conceal further conceal the AP or if painting to match a specific architectural finish.
Key Features and Benefits
- Aesthetic right angle bracket, designed for mounting most vendors’ enterprise APs on the wall
- Enables AP to be mounted in the preferred horizontal orientation
- Can be mounted directly over a telecommunications outlet, concealing outlet, connectors, and cabling
- Optional locking version (-L) secures network connection and cabling
- Acess Point Cover accessory can help to conceal AP in open ceiling environments.
Technical Specifications
- Design: Wedge shaped right-angle mounting bracket for securing Wi-Fi APs on walls. Designed to mount the AP in the preferred horizontal orientation. Accommodates most vendors’ APs
- Knockouts on two sidewalls for 1 in. trades size conduit connectors
- Hinged (-00) or locking (-L) cover to conceal cabling
- Mounting features to directly attach Cisco and Aruba APs. Also includes T-bar bracket for attaching most vendors’ APs
- Construction: 20 ga. powder-coated steel
- Size: 9 x 7 x 5 in. (229 x 178 x 127 mm)
- Available in white (-WH), black (-BK) or metallic (-MT) finish
Product Includes:
- (1) Right-angle wall mount bracket with cover
- (1) T-bar bracket
- (4) #6-32 x 3/8 in. Screws
- (1) Cable tie to secure AP to mount
- (1) Mounting screw template
- (2) Keys (-L, locking versions only)
- Installation instructions
Product Information
Achieve Optimal Wi-Fi Performance with Right-Angle Wall Mounts
The Oberon® H-Plane™ Right-Angle Surface Mounts 1011 provide ideal positioning for Wi-Fi access points on walls, ensuring horizontal orientation for maximum signal coverage in environments like hotels and retail spaces. Models such as the 1011-00-WH feature a sleek, powder-coated design that blends with interior decor while concealing cabling. This mount supports optimal wireless performance by allowing APs to be placed directly over data outlets, reducing visual clutter and installation time.
Designed with a hinged snap-down cover and sidewalls, the Oberon 1011 effectively hides cables and connectors, maintaining a clean aesthetic. Integrated mounting features accommodate Cisco and Aruba access points directly, and a universal T-bar bracket fits most other vendors' APs for versatility. The right-angle design of H-Plane mounts ensures proper antenna alignment, enhancing network reliability and coverage area in hard lid environments.
Key benefits include improved Wi-Fi signal strength through horizontal mounting, secured network connections with optional locking versions like the Oberon 1011-00, and durable 20-gauge steel construction for long-term use. These mounts facilitate rapid deployment and are ideal for enterprise networks, offering flexibility in color options such as white, black, and metallic. By using the 1011 series, you can achieve professional installations that meet aesthetic and functional requirements.
Available in multiple configurations, the Oberon 1011 includes variants with keyed locks for added security or no locks for simpler setups, all supporting easy integration with various AP models. Accessory access point covers can be added to further conceal equipment or allow custom painting to match architectural finishes. Each unit comes with comprehensive hardware, including screws, a cable tie, template, and instructions, ensuring straightforward installation and reduced labor costs.
Incorporating the Oberon H-Plane Right-Angle Surface Mounts 1011 into your wireless infrastructure ensures reliable connectivity and a polished appearance, with models like the 1011-00-WH delivering consistent performance. These mounts are engineered to support high-density applications and evolving network demands, making them a smart choice for modern data centers and commercial spaces. Explore the full range of Oberon 1011 products on Chatsworth.com to optimize your deployment and enhance user engagement.
