1440-ARSTC360
Recessed Suspended Ceiling Access Point Mount, Spring-Attached Arista C-360 Access Point Trim
| Trim Style | AP-Specific |
| Access Point Vendor | Arista |
| Access Point Model | Arista C-360 |
Product Description

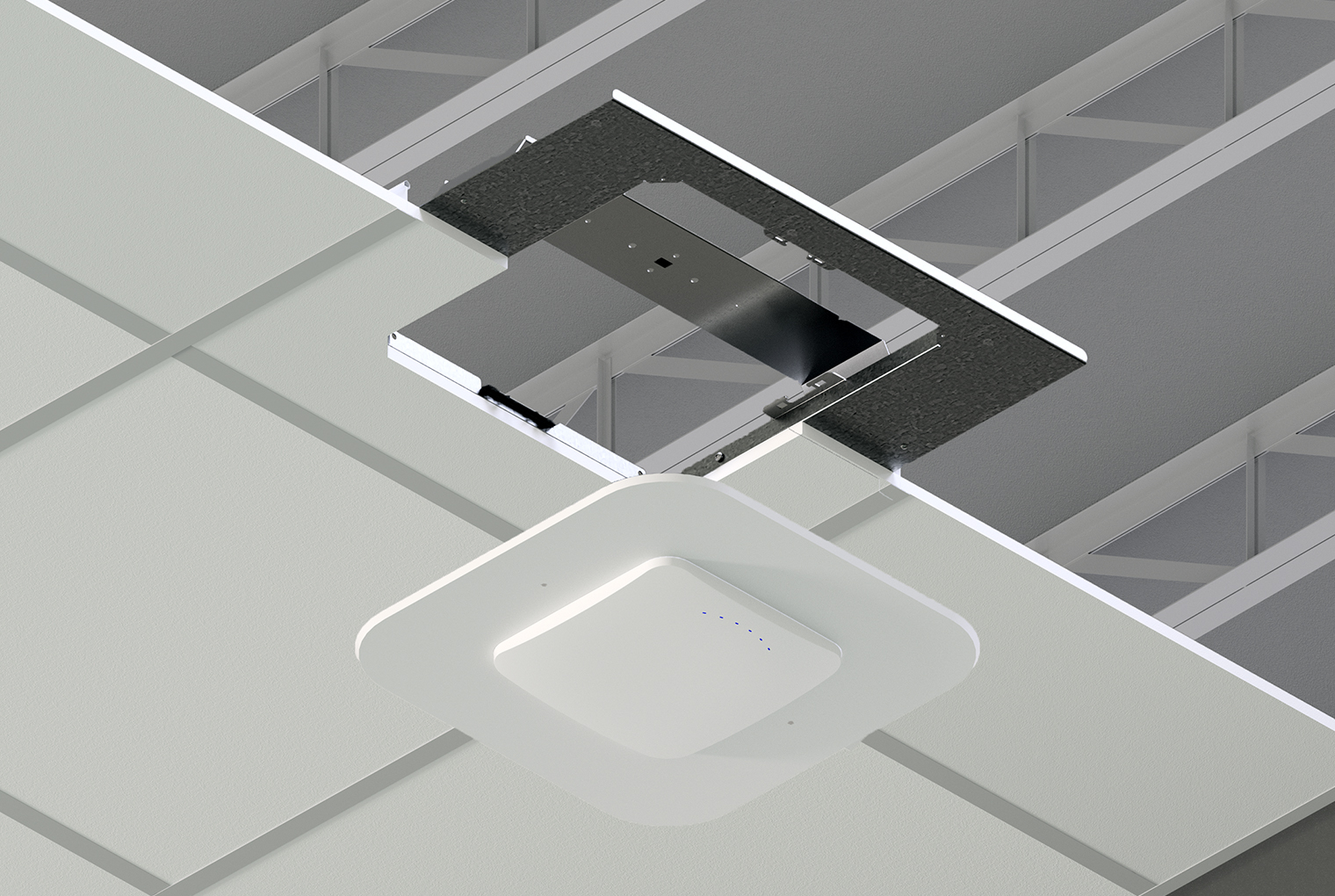

Oberon® In-Plane™ Recessed Mounts 1440 are an economical cloud/canopy/suspended ceiling mounting kit for most vendors’ access points and antennas. A cutout is made in the ceiling panel, the panel bridge is placed above the ceiling panel, and the access point is attached to the white trim. The access point and trim assembly is then drawn into the panel bridge with a torsion spring, much like a recessed lighting fixture, with only the front face exposed for optimal wireless coverage. When the AP brand or model changes, the AP trim is easily swapped for new trim.
Key Features and Benefits
- Install and conceals APs and antennas from most vendors’ in cloud or canopy ceiling panels

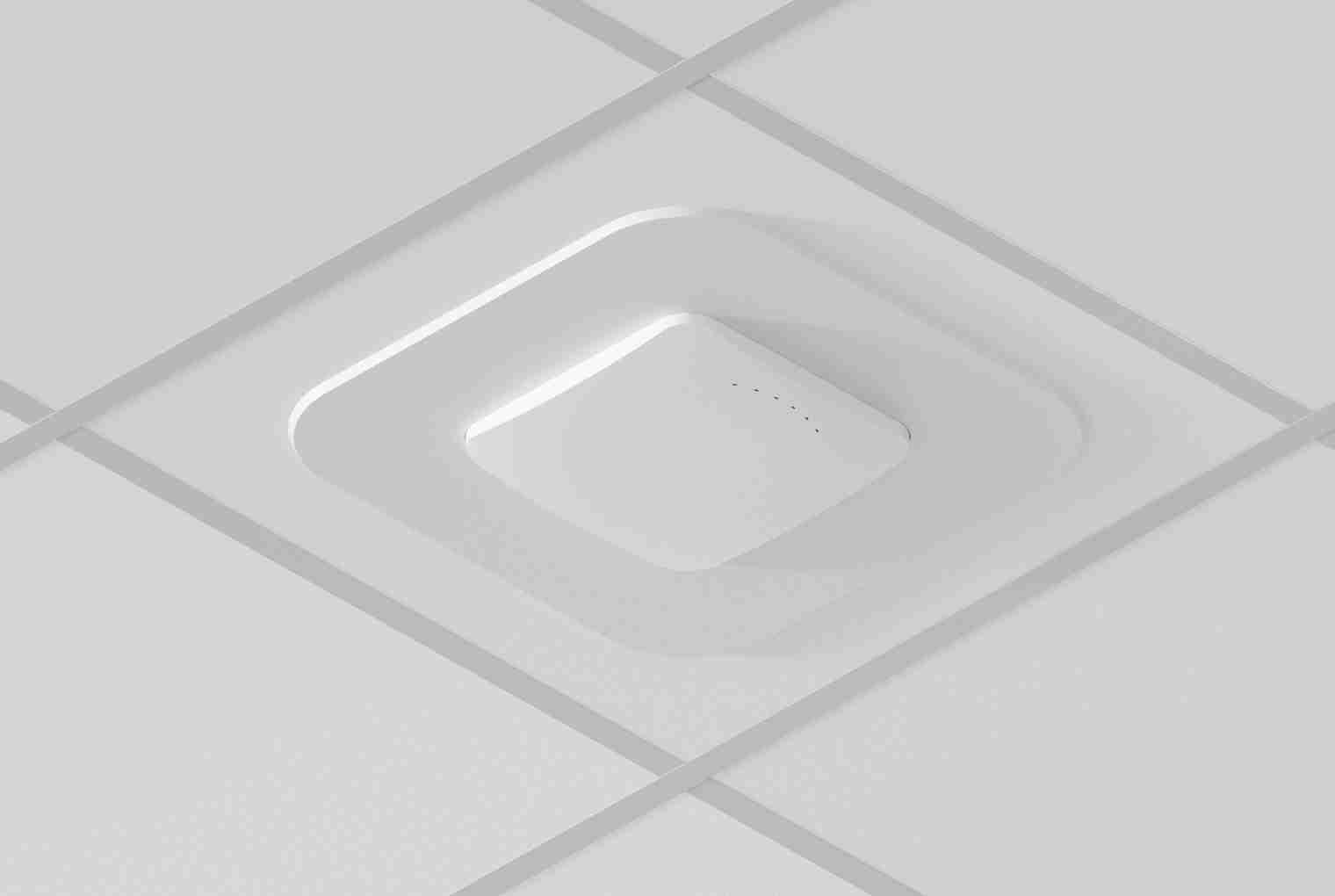

- AP mounts flush to the ceiling, providing an aesthetic, professionally installed appearance
- Use with acoustical or thin metal ceiling panels
- .036” thick galvanized steel panel bridge and adjustable hanger wire prevent ceiling panel sag or cracking
- Easy to install, no loose hardware
Technical Specifications
- Design: Recessed installation kit for installing APs and antennas in cloud, canopy or suspended ceiling panels. AP mounts in interchangeable bracket and trim, providing a professional finish. Designed for all leading vendors’ APs, as identified in Oberon’s Model 1440 configuration guide
- AP/antenna trim is interchangeable for other APs or antennas. Trim attaches with torsion springs; use with standard lay-in or tegular ceiling tiles or thin metal ceiling panels between .03" and 1" thick (0.7 to 25 mm thick)
- Model 1440-ANTMNT only: White powder coated steel antenna mounting plate has a central punch for antennas with up to 1” diameter center post mounting
- Adjustable hanger wire to support enclosure and installed equipment independent of the ceiling system
- Construction: .036” thick galvanized steel panel bridge, white powder coated steel trims
- Size: 22.87 x 18 x 3.5 in. (580 x 457 x 90 mm). ). Cover: 16.9 in. x 16.9 in. (429 mm x 429 mm)
- Suitable for both North American and European (metric) ceilings, acoustical tile or thin metal panel, .03" to 1" thick (0.7 to 25 mm).
Product Includes:
- (1) Ceiling Panel Bridge
- (1) AP specific Trim and bracket
- (4) 4’ hanger wires
- Access Point Attachment Hardware
- Installation instructions
Access Point Vendor
- Arista
Access Point Model
- Arista C-360
Product Information
Design Tools
Key Features of the Oberon® In-Plane™ Recessed Mount 1440
The Oberon® In-Plane™ recessed mounts 1440 provide a clean solution for ceiling‑mount AP deployments in high‑ceiling environments, enabling high ceiling wireless access point installation. Designed for seamless integration with Arista C‑360 and other leading vendors, the mount delivers reliable performance while preserving the aesthetics of the suspended ceiling. This product exemplifies Oberon® mounts that support high‑density wireless infrastructure. Each kit includes a .036 inch (0.9 mm) thick galvanized steel panel bridge and a white powder‑coated steel trim, offering robust support without compromising tile integrity. The dimensions of 22.87 x 18 x 3.5 in. (580 x 457 x 90 mm) ensure a compact footprint that fits standard acoustic and thin‑metal ceiling panels. The construction meets the rigorous standards expected of Oberon® products. Installation is straightforward: a cutout is made in the ceiling panel, the panel bridge is positioned, and the AP is attached to the trim, which is then drawn into place by a torsion spring. The adjustable hanger wire prevents panel sag and accommodates ceiling thicknesses from .03 inch (0.7 mm) to 1 inch (25 mm). This recessed mount eliminates loose hardware and provides a flush, professional appearance for any ceiling mount AP. The interchangeable trim design allows quick replacement when the AP model changes, reducing downtime and simplifying upgrades. While the kit ships with Arista‑specific trim, the system is compatible with all leading vendors identified in Oberon's Model 1440 configuration guide. This flexibility makes the solution ideal for diverse data‑center and enterprise deployments. CPI supplies detailed spec sheets, installation instructions, and OPM documentation to streamline the design process. Customers can leverage the CPI Product Designer and Oberon® Solutions Finder to configure accessories and ensure optimal performance. With global availability and rapid customization, Oberon® In‑Plane™ recessed mounts 1440 support future‑ready wireless networks.
