Spring-Attached Retrofit Trim for Oberon Model 1440, 1442, 1443, & 1444 Series Products, Low-Profile White Plastic Cover, 7.25" Bracket

MSRP $180.00
Trim StylePlastic Cover
Access Point Vendor Various
Access Point Model Various
Height0.56" (14 mm)
Width16.9" (430 mm)
Depth16.9" (430 mm)
CertificationsROHS
Country Of OriginUS
MaterialPVC-ABS
BABA CompliantYes
ColorWhite
Product Description

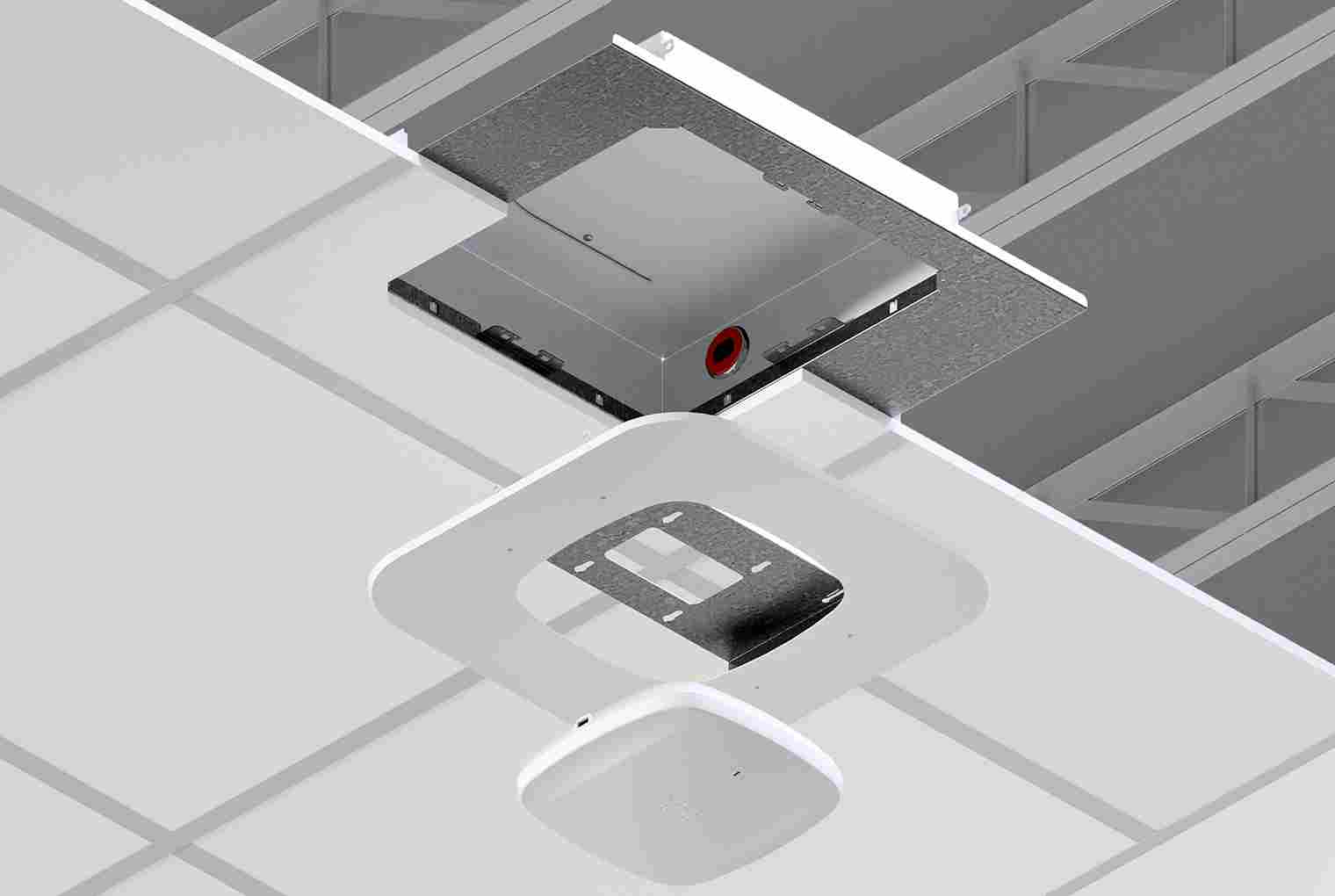

Retrofit Trims for Oberon In-Plane Mounts 1440, 1442, 1443, 1444. Use these trims to upgrade existing mounts with new APs. Trims include an AP-specific cutout and mounting bracket and torsion spring attachment. Select the trim to match the AP.

Key Features and Benefits
  • Easy upgrade to new APs
  • Select trim to match AP

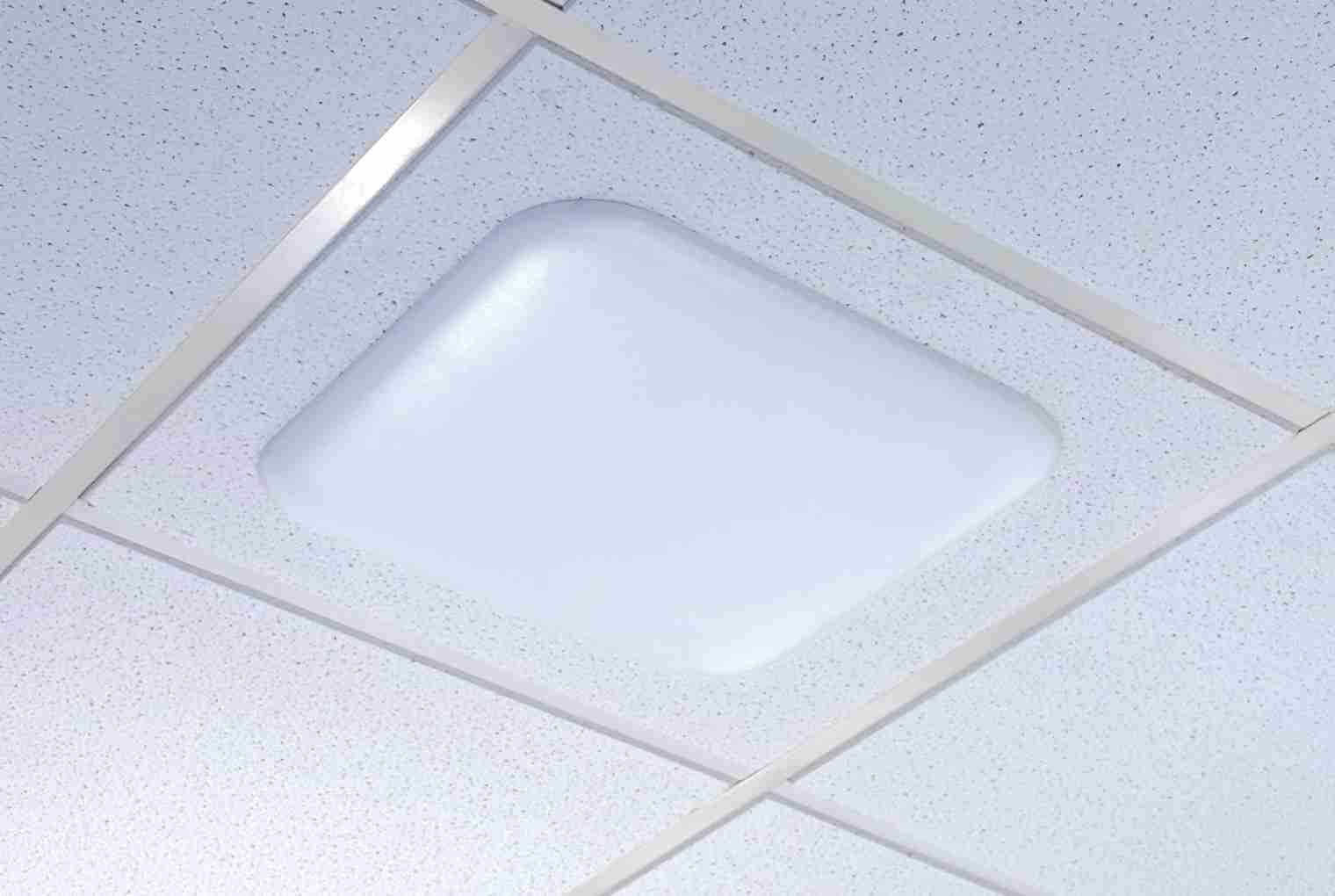

  • -FXL trim is a flush cover option, AP mounts within the enclosure, above the ceiling

Technical Specifications
  • AP-specific trims are steel, powder coated white
  • -FXL trim is white opaque UL 94-5VA ABS plastic
  • Attaches with tortion spings to Oberon In-Plane Mounts 1440, 1442, 1443 or 1444
  • Size: 16.9" x 16.9" x .56" cover (430 mm x 430 mm x 14 mm)
Product Includes:

(1) Trim with AP attachment bracket and torsion spring

OR

(1) Plastic Cover (-FXL only) and AP mounting bracket

Access Point Vendor
  • Arista
  • Aruba
  • Cisco
  • Extreme
  • Fortinet
  • Juniper
  • Meraki
  • Ruckus
  • Ubiquiti
Access Point Model
  • Arista C-200
  • Arista C-230
  • Arista C-230E
  • Arista C-250
  • Arista C-260
  • Arista C-330
  • Arista C-360
  • Arista C-460
  • Arista C-460E
  • Aruba AP-504
  • Aruba AP-505
  • Aruba AP-514
  • Aruba AP-515
  • Aruba AP-534
  • Aruba AP-535
  • Aruba AP-555
  • Aruba AP-615
  • Aruba AP-635
  • Aruba AP-655
  • Aruba AP-734
  • Aruba AP-735
  • Aruba AP-755
  • Cisco 3802i
  • Cisco C9105AXI
  • Cisco C9115AXI
  • Cisco C9115AXE
  • Cisco C9120AXI
  • Cisco C9120AXE
  • Cisco C9120AXP
  • Cisco C9130AXI
  • Cisco C9130AXE
  • Cisco C9136I
  • Cisco CW9162I
  • Cisco CW9164I
  • Cisco CW9166I
  • Cisco CW9166D1
  • Cisco CW9176I
  • Cisco CW9176D1
  • Cisco CW9178I
  • Extreme AP305C
  • Extreme AP305CX
  • Extreme AP310i
  • Extreme AP310e
  • Extreme AP410i
  • Extreme AP410e
  • Extreme AP410C
  • Extreme AP505i
  • Extreme AP510i
  • Extreme AP510e
  • Extreme AP510C
  • Extreme AP510CX
  • Extreme AP650
  • Extreme AP650X
  • Extreme AP3000
  • Extreme AP3000X
  • Extreme AP4000
  • Extreme AP5010
  • Extreme AP5020
  • Fortinet FAP-231G
  • Fortinet FAP-241K
  • Fortinet FAP-431F
  • Fortinet FAP-431G
  • Fortinet FAP-432F
  • Fortinet FAP-441K
  • Fortinet FAP-831F
  • Juniper BT11
  • Juniper AP24
  • Juniper AP32
  • Juniper AP32E
  • Juniper AP33
  • Juniper AP34
  • Juniper AP43
  • Juniper AP43E
  • Juniper AP45
  • Juniper AP45E
  • Juniper AP47
  • Juniper AP47D
  • Juniper AP47E
  • Juniper AP64
  • Meraki MR28
  • Meraki MR36
  • Meraki MR42
  • Meraki MR44
  • Meraki MR46
  • Meraki MR46E
  • Meraki MR57
  • Ruckus R350
  • Ruckus R550
  • Ruckus R650
  • Ruckus R750
  • Ruckus R850
  • Ruckus R560
  • Ruckus R760
  • Ruckus R670
  • Ruckus R770
  • Ubiquiti UAP-U6-PRO
  • Ubiquiti UAP-U6-LITE
  • Ubiquiti UAP-U6-PLUS
  • Ubiquiti UAP-U6-LR
  • Ubiquiti UAP-U6-ENTERPRISE
  • Ubiquiti UAP-U7-PRO
  • Ubiquiti UAP-U7-PRO-MAX
  • Ubiquiti UAP-E7
