Center Rail for Adjustable ServerRack
Explore Sizes & Options
| Add to Cart Add | ||||
|---|---|---|---|---|
15330-108 | 108" (2740 mm) | Gray | $463.98 | |
15330-103 | 84" (2134 mm) 45U | Gray | $409.57 | |
15330-115 | 96" (2438 mm) 51U | Gray | $425.77 | |
15330-101 | 72" (1829 mm) 38U | Gray | $382.09 | |
15330-E03 | 84" (2134 mm) 45U | Glacier White | $409.35 | |
15330-E08 | 108" (2740 mm) | Glacier White | $463.75 | |
15330-701 | 72" (1829 mm) 38U | Black | $337.25 | |
15330-703 | 84" (2134 mm) 45U | Black | $372.12 | |
15330-E01 | 72" (1829 mm) 38U | Glacier White | $370.97 | |
15330-E15 | 96" (2438 mm) 51U | Glacier White | $425.58 |
Product Description
CPI's ServerRack is available in three models: ServerFrame, Adjustable ServerRack and Adjustable Rails ServerRack. The ServerFrame features a fixed rail, while the adjustable versions provide adjustable depth mounting options.

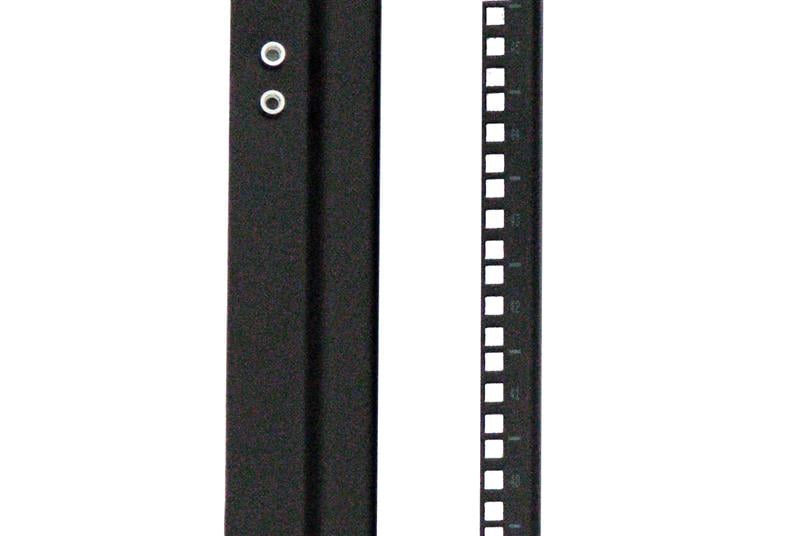

A Center Rail can be added to the Adjustable ServerRack and QuadraRack® to provide an additional pair of mounting rails for rack-mount equipment. Made of durable steel and shipped with marked and numbered rack-mount spaces to simplify equipment installation, the Center Rail consists of one pair of 19W mounting rails with square-punched mounting holes. The adjustable depth gives you the ability to attach the rails at any point along the side of the rack as well. With a 1,000 lb (453.6 kg) equipment load bearing capacity when used as an independent pair of rails, rack load remains 2,000 lb (907.2 kg) when Center Rail is used as the front or rear pair of a four-point mounting solution versatile indeed. 51U, 96 (2400 mm), black, shipping weight 26 lb (11.8 kg).
Key Features and Benefits
- Stability and strength of an enclosure in an open mounting system
- Provides easy access to equipment and cabling
- Quick assembly with one-piece top and bottom pan sets
- Easy to bay together to create multi-frame configurations
- Use with any CPI Cabling Section to manage cables
- Equipment mounting locations are marked on the mounting channels
- Square-punched mounting holes allow you to change equipment mounting hardware to meet the requirements of rack-mount server and data storage equipment
- Support large equipment on heavy-duty four-post fixed and sliding shelves
Product Information
Key Features of the Center Rail Assembly
The Center Rail for Adjustable ServerRack adds a dedicated pair of server rack vertical rails that complement existing front and rear mounting points. By serving as a rack center, it creates a symmetrical support structure that distributes equipment weight evenly across the enclosure. This configuration enhances stability for high‑density deployments. Each rail is engineered to bear up to 1,000 lb (453.6 kg) of equipment, allowing the adjustable rail rack system to support a total load of 2,000 lb (907.2 kg) when used in a four‑point arrangement. The robust steel construction meets the demanding requirements of modern data centers and hyperscale environments. The solution rail design also facilitates quick re‑positioning to accommodate changing equipment heights. The square‑punched mounting holes enable users to attach adjustable rack rails at any point along the rack depth, providing true flexibility for diverse cabinet layouts. Installation requires only basic tools, and the marked rack units simplify placement of servers, switches, and power modules. The center rail assembly can be combined with other CPI accessories to create a custom cable management pathway. Integrating the center rail with CPI's cable management solutions improves airflow and reduces clutter by keeping cables organized along the vertical rails. The design supports both 38U and 51U configurations, ensuring compatibility with a wide range of server sizes. Users benefit from the ability to mount additional accessories without sacrificing rack space. Choosing this center rail assembly reinforces CPI's commitment to delivering high‑quality, adaptable infrastructure that meets the evolving needs of enterprise and hyperscale customers. The product is backed by global availability and rapid customization, allowing organizations to scale efficiently. For detailed specifications, consult the product data sheet or contact a CPI sales specialist.
