Chatsworth Product Designer

Product Designer speeds and simplifies enclosure selection and kitting. To customize further, contact us.

CPI Product Designer creates unique enclosures quickly and easily by allowing you to select the size, features and accessories needed for a specific application. CPI Product Designer will generate bills of material, drawings, 3D models and sales documents automatically.

Once the design is finished, you will receive a confirmation email with the product’s description, part number, bill of material with pricing and related documents. A second email will notify you when the 3D models are complete, usually within 15 minutes. To order contact your or .

Modify Your Enclosure

CPI excels at customizing products. To modify your enclosure or to request additional sizes and accessories, .

Product Design Tools

Product Image

ZetaFrame® Cabinet System

A highly engineered data center cabinet solution that delivers fast built-to-order configurability, industry-leading strength and scalability, regardless of the application. ZetaFrame Cabinet is a total, turnkey solution that integrates with power, cable and thermal management accessories to support next-generation compute.

Design it now
Product Image

RMR® Fixed Wall-Mount Enclosure

The RMR® Fixed Wall-Mount Enclosure provides NEMA 12 and IP 55 protection ratings for network, communication, automation and control equipment in nonhazardous indoor locations. Cable management accessories support high-density cable bundles without invading excessive rack-mount unit (U) space

Design it now
Product Image

RMR® Floor-Mount Enclosures

RMR® Floor-Mount Enclosures provide NEMA Type 4 and 12 protection for large electronic components and controls that require sturdy mounting. Floor stands elevate the enclosure above the floor for added clearance and easier cable access.

Design it now
Product Image

RMR® Free-Standing Enclosures

RMR® Free-Standing Enclosures provide NEMA Type 4 and 12 protection for electronic components used for control system automation, remote monitoring and instrumentation, and industrial, smart city and broadband network distribution.

Design it now
Product Image

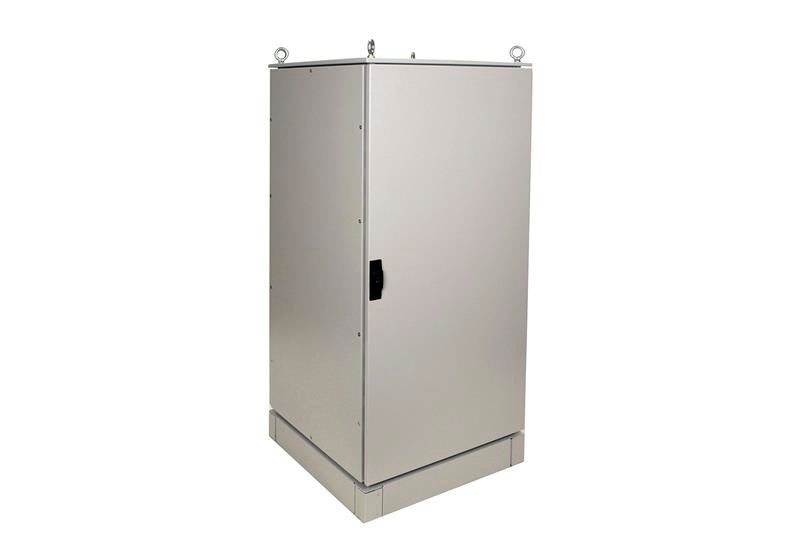

RMR® Modular Enclosure

The RMR® Modular Enclosure provides NEMA 12 and IP 55 protection ratings for network, communication, automation and control equipment in nonhazardous indoor locations. It features innovative quarter-, half-, and full-height mounting panels, which allow multiple equipment support solutions to exist within a single enclosure

Design it now
Product Image

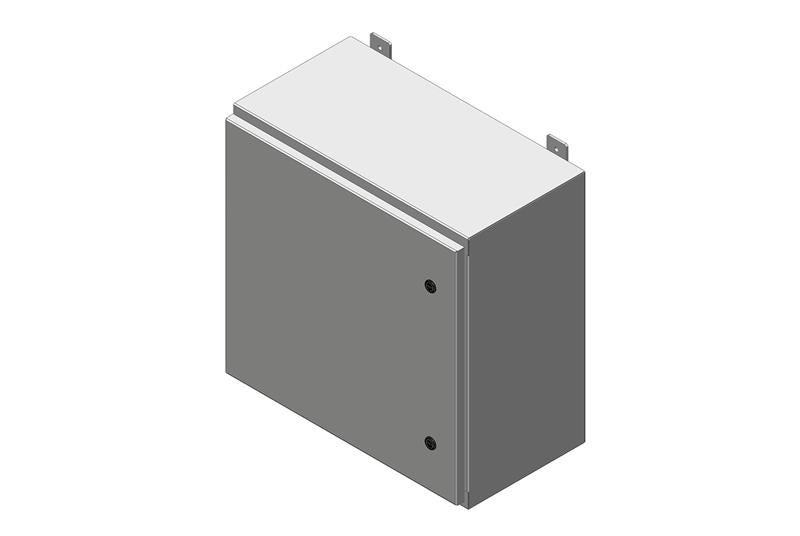

RMR® Standard Wall-Mount Enclosures

RMR® Standard Wall-Mount Enclosures provide NEMA Type 4 and 12 protection for smaller electronic components and controls that require sturdy wall mounting.

Design it now
Product Image

RMR® Swing Wall-Mount Enclosure

The RMR® Swing Wall-Mount Enclosure provides NEMA 12 and IP 55 protection ratings for network, communication, automation and control equipment in non-hazardous indoor locations. The swing-out design allows technicians easily access the front and rear of equipment. Supports high-density cable bundles without invading excessive rack-mount unit (U) space.

Design it now
Product Image

RMR® Flange-Mount Disconnect Enclosures

RMR® Flange-Mount Disconnect Enclosures include floor-mount, free-standing and standard wall-mount enclosures that have been adapted with a mounting location for a flange-mount disconnect handle. Disconnect enclosures include an internal interlock mechanism that secures doors in the closed position when internal equipment is energized. Most standard disconnect handles will attach to CPI Disconnect Enclosures. Order disconnect handles separately.

Design it now

Technical Support

Contact Technical Support if you have questions about products & installation or consultation services.

+1-800-834-4969

(In the US)

+818-739-3400

(Outside the US)

Hours: Mon - Fri, 5am to 5pm, Pacific

What This Page Covers

Efficient Cabinet Product Design Solutions

The Chatsworth Product Designer is a powerful cabinet configurator that simplifies enclosure selection and kitting. Users can customize sizes, features, and accessories for specific applications. This tool automatically generates bills of material, drawings, and 3D models for rapid deployment.

With the integrated 3D shelves configurator, you can visualize and design interior components with precision. The system supports accurate placement of shelves and other accessories to optimize space utilization. All configurations include factory-installed accessories for reliable and efficient installation.

Our cabinet product design tool accelerates the customization process for various enclosure types. It provides instant access to pricing, sales documents, and technical specifications upon design completion. Technical support is available to assist with modifications or additional customization needs.

The Product Designer enhances cabinet product design by supporting enclosures like ZetaFrame® Cabinets and RMR® Enclosures. Each design can incorporate thermal management, cable management, and other integrated solutions. This ensures your cabinet configurator delivers a fully optimized system for data center or industrial environments.

For complex projects, the 3D models from the configurator aid in planning, installation, and validation. The cabinet product design process includes real-time updates and email notifications for document availability. Chatsworth Products guarantees global availability and rapid customization to meet your project timelines.
