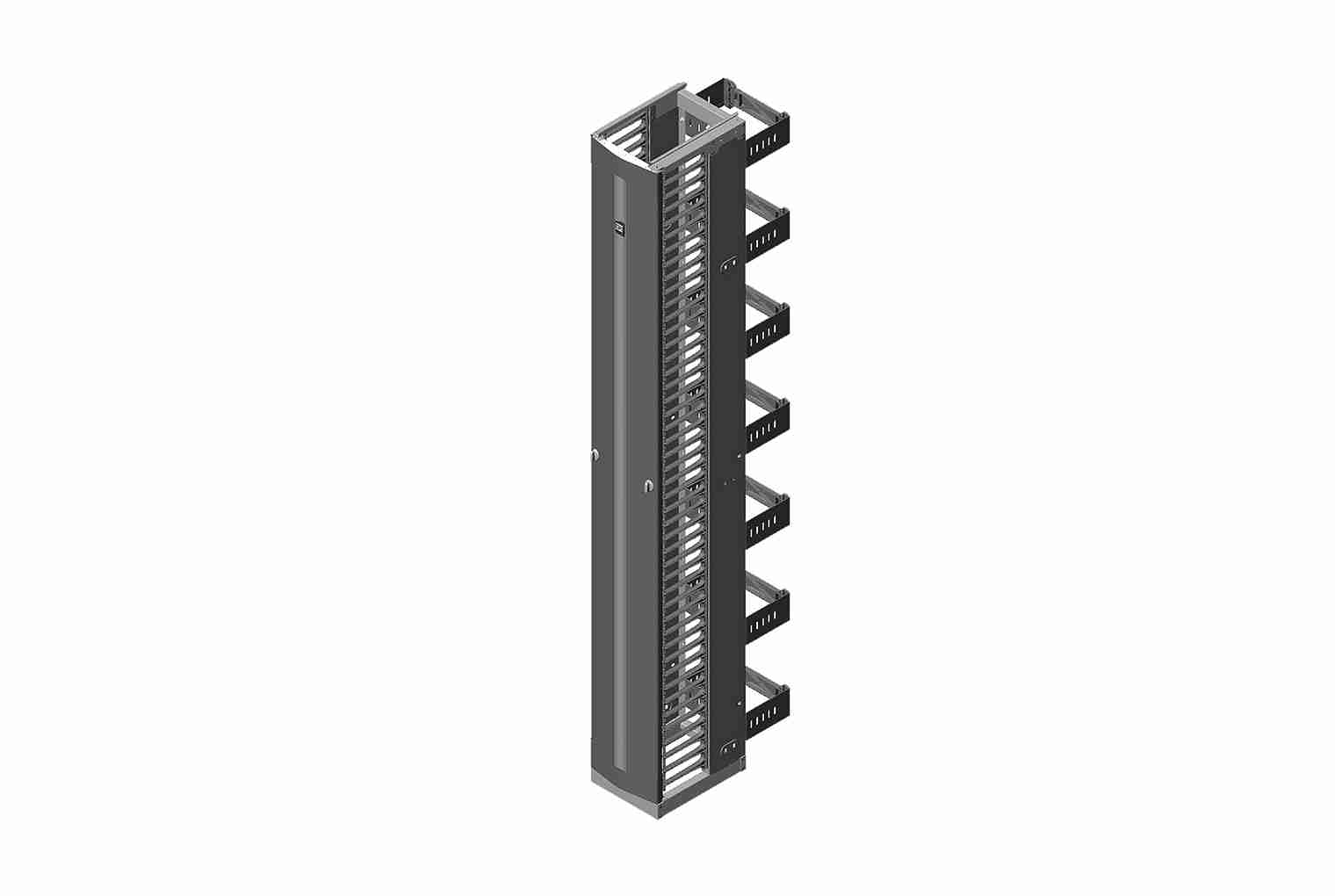

Evolution Combination Vertical Cable Manager
Explore Sizes & Options
| Add to Cart Add | ||||||
|---|---|---|---|---|---|---|
35571-E15 | 51U Rack | 6" (152 mm) | 96" (2438 mm) 51U | Glacier White | $1,723.01 | |
35571-708 | 58U Rack | 6" (152 mm) | 9' (2.7 m) | Black | $1,801.43 | |
35572-715 | 51U Rack | 8" (203 mm) | 96" (2438 mm) 51U | Black | $1,655.93 | |
35572-703 | 45U Rack | 8" (203 mm) | 84" (2134 mm) 45U | Black | $1,439.86 | |
35572-E15 | 51U Rack | 8" (203 mm) | 96" (2438 mm) 51U | Glacier White | $1,821.48 | |
35571-E03 | 45U Rack | 6" (152 mm) | 84" (2134 mm) 45U | Glacier White | $1,498.27 | |
35571-703 | 45U Rack | 6" (152 mm) | 84" (2134 mm) 45U | Black | $1,362.07 | |
35572-E03 | 45U Rack | 8" (203 mm) | 84" (2134 mm) 45U | Glacier White | $1,583.88 | |
35573-E15 | 51U Rack | 10" (254 mm) | 96" (2438 mm) 51U | Glacier White | $1,952.71 | |
35572-E08 | 58U Rack | 8" (203 mm) | 9' (2.7 m) | Glacier White | $2,094.71 | |
35573-703 | 45U Rack | 10" (254 mm) | 84" (2134 mm) 45U | Black | $1,543.69 | |
35572-708 | 58U Rack | 8" (203 mm) | 9' (2.7 m) | Black | $1,904.41 | |
35571-715 | 51U Rack | 6" (152 mm) | 96" (2438 mm) 51U | Black | $1,566.42 | |
35574-703 | 45U Rack | 12" (305 mm) | 84" (2134 mm) 45U | Black | $1,647.48 | |
35574-708 | 58U Rack | 12" (305 mm) | 9' (2.7 m) | Black | $2,178.71 | |
35573-708 | 58U Rack | 10" (254 mm) | 9' (2.7 m) | Black | $2,041.54 | |
35574-715 | 51U Rack | 12" (305 mm) | 96" (2438 mm) 51U | Black | $1,894.57 | |
35571-E08 | 58U Rack | 6" (152 mm) | 9' (2.7 m) | Glacier White | $1,981.47 | |
35573-E03 | 45U Rack | 10" (254 mm) | 84" (2134 mm) 45U | Glacier White | $1,698.10 | |
35573-E08 | 58U Rack | 10" (254 mm) | 9' (2.7 m) | Glacier White | $2,245.50 |
Product Description
CPI Evolution Cable Management is a dependable solution for managing high-density copper cabling on open CPI Rack Systems, delivering increased performance to match the demands of today’s data center applications.
Featuring easy-to-use doors with styling that complements the CPI family of cabinets, Evolution Vertical Cable Manager provides interior features to help maximize the capacity and utility of high-density vertical cable management. Evolution Vertical Cable Manager includes plastic T-shaped cable guides (fingers) with openings that align with each rack-mount unit (U) space on the rack. The rounded edges on the cable guides and the top of the manager protect cables as they enter and exit the interior storage space. On double-sided managers, the Mid-Section panels allow personalized placement of he Tool-Less & Adjustable Cable Distribution Spools and other cable management accessories to effectively route patch cords. The Movable Mid-Section Kits can also be positioned for a 50/50, 40/60 or 60/40 front/rear split of the internal cable management space to match cabling requirements.
Vertical managers are available in Single-Sided, Double-Sided and Combination configurations in five widths and three heights to match a variety of requirements. Combination managers have cable management fingers in the front and cable rings in the back.
Use accessory Fiber Segregation Kits to create a dedicated internal channel for fiber cabling or accessory Cable Lashing Bar Kits to anchor premise cables closer to the mid-sections to increase capacity. Contact CPI Technical Support for configuration assistance.
Key Features and Benefits
- Tool-Less & Adjustable Cable Distribution Spools provide slack management and strain relief for patch cords and jumper cables inside Evolution Vertical Cable Managers
- Movable Mid-Section Kit for doublesided managers allows for increased flexibility in space utilization and reduces installation time from minutes to seconds
- Door on vertical cable manager opens to the right or left with a single latch
- T-shaped cable guide design resists deflection when loaded with cables
- Rounded edges on the cable guides and at the top of the cable manager protect cables as they enter and exit the storage space
- Rigid trough minimizes movement when installed on the end of a row of racks
Product Information
Design Tools
Key Features of Evolution® Vertical Cable Management
Evolution® vertical cable management provides a structured pathway for high‑density cabling within 45‑58U rack enclosures. The system's T‑shaped cable guides keep cables aligned with each rack unit, reducing strain and improving airflow. Customers benefit from a cleaner rack layout and easier maintenance. Tool‑less and adjustable cable distribution spools act as an integrated cable manager, allowing quick slack management without tools. Movable mid‑section kits enable a 50/50, 40/60, or 60/40 front‑to‑rear split, tailoring the internal space to specific cabling requirements. Rounded edges protect cables as they enter and exit the manager. The combination configuration features cable fingers in the front and cable rings in the rear, delivering comprehensive vertical cable management in a single unit. Available in five widths--from 6 in (152 mm) to 15 in (381 mm)--and three heights, the solution adapts to 45U, 51U, and 58U rack heights. Optional fiber segregation kits create dedicated channels for fiber cabling, enhancing overall cable management. When paired with vertical cable tray accessories, the Evolution® system extends the organized pathway beyond the rack, supporting seamless cable routing to adjacent equipment. This integration supports a complete cable management strategy that meets the demands of modern data centers. The modular design ensures future scalability without re‑engineering the rack layout. CPI offers downloadable CAD, BIM, and Visio resources to accelerate engineering and deployment of the vertical cable manager. Technical support assists with configuration, ensuring optimal use of the cable management features. Leveraging CPI's global network and rapid customization, organizations can maintain high performance and reliability in their infrastructure.
