Motive Double-Sided Vertical Cable Manager
Explore Sizes & Options
| Add to Cart Add | ||||||
|---|---|---|---|---|---|---|
32644-E15 | 51/52U Rack | 15" (380 mm) | 8' (2.4 m) | Glacier White with White Fingers | $2,750.27 | |
32644-E08 | 58U Rack | 15" (380 mm) | 9' (2.7 m) | Glacier White with White Fingers | $3,156.84 | |
32644-E02 | 41U Rack | 15" (380 mm) | 6.5' (2 m) | Glacier White with White Fingers | $2,367.60 | |
32643-E03 | 45U Rack | 12" (300 mm) | 7' (2.1 m) | Glacier White with White Fingers | $2,154.07 | |
32644-E05 | 48U Rack | 15" (380 mm) | 7.5' (2.3 m) | Glacier White with White Fingers | $2,714.38 | |
32643-E05 | 48U Rack | 12" (300 mm) | 7.5' (2.3 m) | Glacier White with White Fingers | $2,444.85 | |
32644-E01 | 38U Rack | 15" (380 mm) | 6' (1.8 m) | Glacier White with White Fingers | $2,343.71 | |
32643-E01 | 38U Rack | 12" (300 mm) | 6' (1.8 m) | Glacier White with White Fingers | $2,110.96 | |
32643-E15 | 51/52U Rack | 12" (300 mm) | 8' (2.4 m) | Glacier White with White Fingers | $2,477.20 | |
32642-E02 | 41U Rack | 10" (250 mm) | 6.5' (2 m) | Glacier White with White Fingers | $1,998.19 | |
32642-E01 | 38U Rack | 10" (250 mm) | 6' (1.8 m) | Glacier White with White Fingers | $1,978.00 | |
32643-E02 | 41U Rack | 12" (300 mm) | 6.5' (2 m) | Glacier White with White Fingers | $2,132.53 | |
32641-E02 | 41U Rack | 8" (200 mm) | 6.5' (2 m) | Glacier White with White Fingers | $1,838.83 | |
32642-E08 | 58U Rack | 10" (250 mm) | 9' (2.7 m) | Glacier White with White Fingers | $2,664.26 | |
32644-E03 | 45U Rack | 15" (380 mm) | 7' (2.1 m) | Glacier White with White Fingers | $2,391.54 | |
32643-E08 | 58U Rack | 12" (300 mm) | 9' (2.7 m) | Glacier White with White Fingers | $2,843.38 | |
32642-E05 | 48U Rack | 10" (250 mm) | 7.5' (2.3 m) | Glacier White with White Fingers | $2,290.85 | |
32642-E03 | 45U Rack | 10" (250 mm) | 7' (2.1 m) | Glacier White with White Fingers | $2,018.35 | |
32641-E05 | 48U Rack | 8" (200 mm) | 7.5' (2.3 m) | Glacier White with White Fingers | $2,108.13 | |
32641-E01 | 38U Rack | 8" (200 mm) | 6' (1.8 m) | Glacier White with White Fingers | $1,820.19 |
Product Description

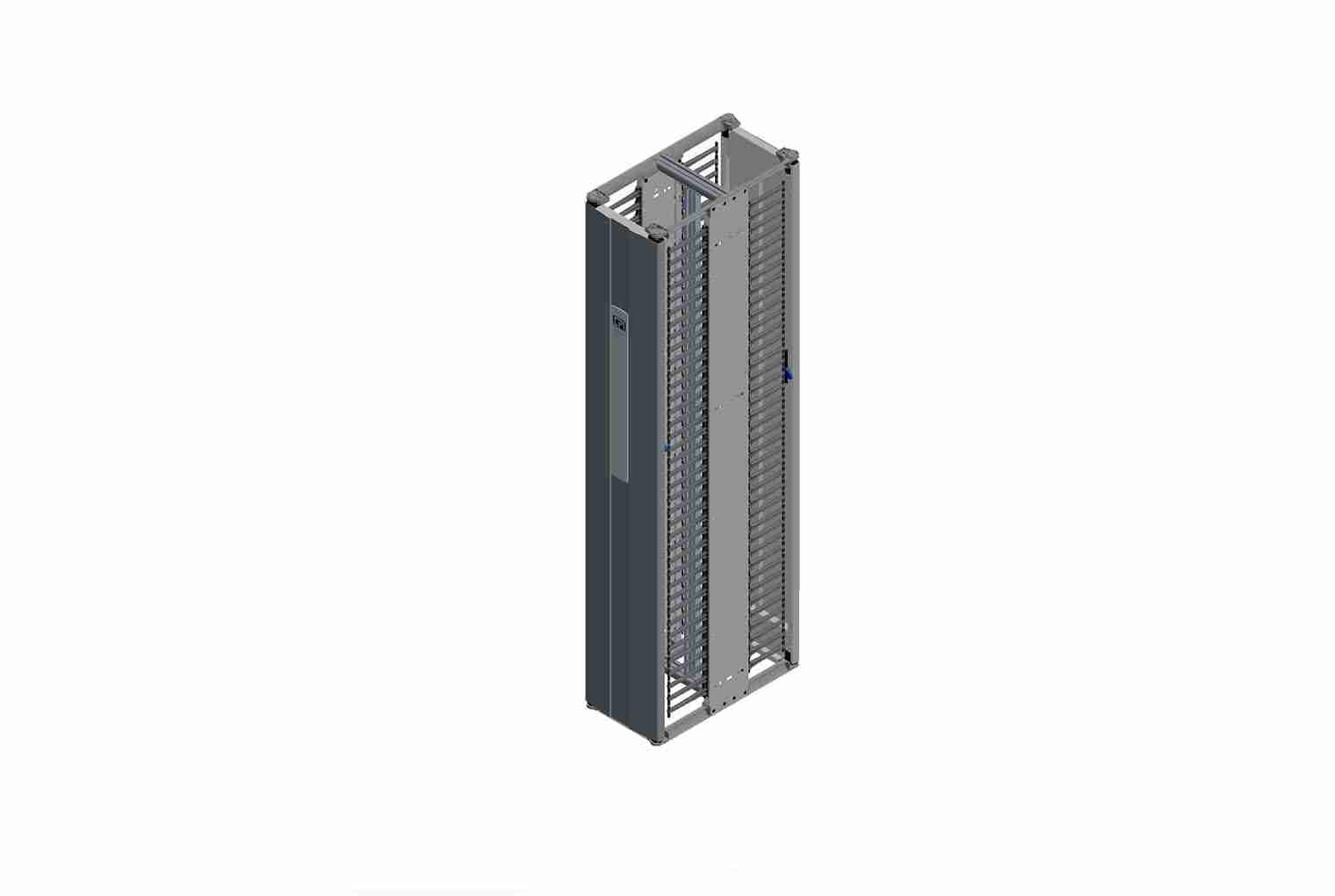

Motive® Vertical Cable Manager is a highly configurable and advanced cable management solution that provides unlimited adjustment anywhere within the cable manager, optimizing use of interior space.
Key Features and Benefits
- Frame has an extruded aluminum profile with an integral central track
- Large radii are designed into many of the frame elements to protect and support cables as they enter and exit the manager
- Touch points are highlighted in blue for easy identification and quick adjustment
- Dual-hinged door opens to the right or left and offers push-to-close convenience
- Hook feature on inside of front door provides a dedicated, secure location to hang a test meter
- Available in a wide variety of heights, widths and configurations
- Ships fully assembled
- Black/ White fingers
Product Includes:
- Black/ White fingers
- Left and right side assemblies with T-shaped cable guides that align with rack-mount unit (U) spaces on rack
- Dual-hinged front door and rear door assemblies (pre-installed)
- Central track assembly
- 4 Accessory Rods

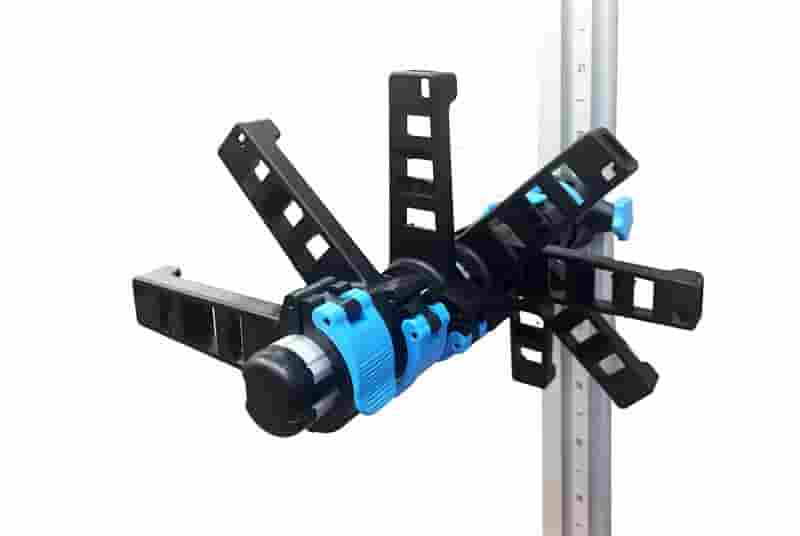

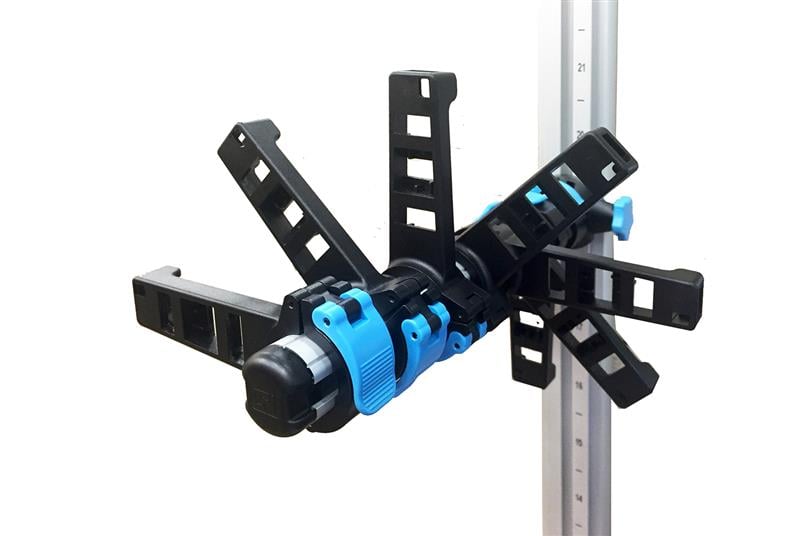

- 4 Rotating Management Fingers (Not included in 6"W (150 mm) and 8"W (200 mm) managers)
- 12 Cable Bundle Swivels
- 4 Half Spools (Not included in 6"W (150 mm) and 8"W (200 mm)
- Installation hardware included
Product Information
Design Tools
Key Features and Benefits of Motive® Vertical Cable Managers
The Motive® Double-Sided Vertical Cable Manager provides a highly configurable solution for double-sided vertical cable management in data center environments. Its extruded aluminum frame with an integral central track ensures durability and supports unlimited adjustment anywhere within the manager. This design optimizes interior space while protecting cables with large radii at entry and exit points.
Touch points are highlighted in blue for easy identification and quick adjustment, enhancing efficiency during installation and maintenance. The dual-hinged door opens to the right or left with push-to-close convenience, and an internal hook offers a secure location for test meters. Available in various heights and widths, this vertical cable manager ships fully assembled with accessories like cable bundle swivels and rotating management fingers.
Cable management is streamlined through features such as T-shaped cable guides that align with rack-mount unit spaces, ensuring organized and accessible vertical cable runs. The inclusion of accessory rods and half spools further secures and routes cables, reducing clutter and potential damage. This approach supports high-density environments by maintaining airflow and facilitating easy troubleshooting.
For vertical cable applications, the manager's robust construction and adaptable components cater to diverse rack configurations, from 38U to 58U racks. It helps data centers achieve compliance with industry standards while improving overall reliability and performance. The Motive® series exemplifies CPI's commitment to quality and innovation in cable management solutions.
Backed by CPI's global expertise and rapid customization options, this vertical cable manager for rack installations delivers long-term value and scalability. IT professionals can leverage design tools like CAD and BIM files for seamless integration into existing infrastructure. Explore the full range of sizes and colors to enhance your cable management strategy with dependable, future-ready solutions.
