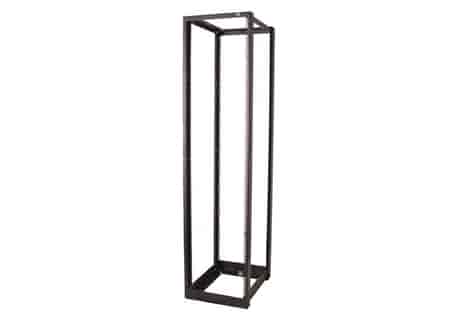

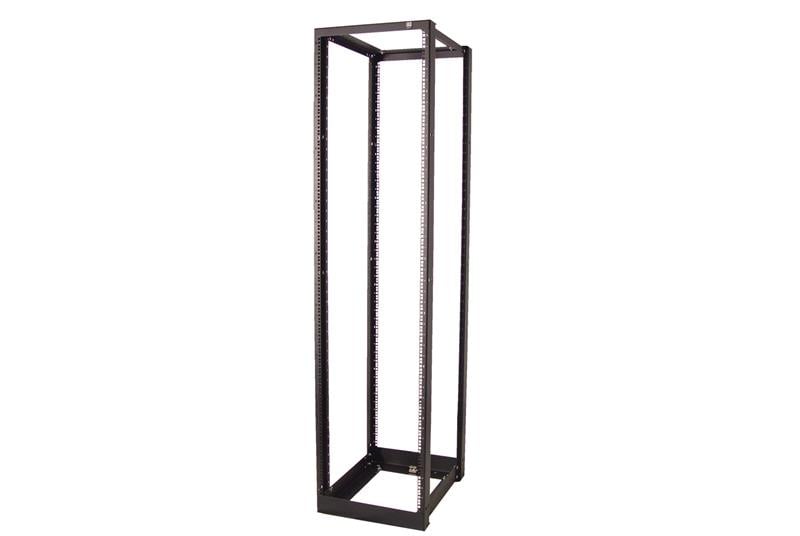

Adjustable ServerRack
Explore Sizes & Options
| Add to Cart Add | |||||
|---|---|---|---|---|---|
15211-115 | 96" (2438 mm) 51U | Gray | 15.8" (400 mm) | $1,107.40 | |
15211-103 | 84" (2134 mm) 45U | Gray | 15.8" (400 mm) | $1,015.49 | |
15211-703 | 84" (2134 mm) 45U | Black | 15.8" (400 mm) | $967.13 | |
15211-101 | 72" (1829 mm) 38U | Gray | 15.8" (400 mm) | $982.98 | |
15211-701 | 72" (1829 mm) 38U | Black | 15.8" (400 mm) | $936.14 | |
15211-E08 | 108" (2740 mm) | Glacier White | 15.8" (400 mm) | $1,321.90 | |
15211-E15 | 96" (2438 mm) 51U | Glacier White | 15.8" (400 mm) | $1,160.09 | |
15211-108 | 108" (2740 mm) | Gray | 15.8" (400 mm) | $1,261.83 | |
15211-715 | 96" (2438 mm) 51U | Black | 15.8" (400 mm) | $1,054.65 | |
15211-E03 | 84" (2134 mm) 45U | Glacier White | 15.8" (400 mm) | $1,063.85 | |
15211-E01 | 72" (1829 mm) 38U | Glacier White | 15.8" (400 mm) | $1,029.81 | |
15211-708 | 108" (2740 mm) | Black | 15.8" (400 mm) | $1,201.75 | |
15212-703 | 84" (2134 mm) 45U | Black | 22.6" (575 mm) | $996.43 | |
15212-E01 | 72" (1829 mm) 38U | Glacier White | 22.6" (575 mm) | $1,062.00 | |
15212-E03 | 84" (2134 mm) 45U | Glacier White | 22.6" (575 mm) | $1,096.06 | |
15212-101 | 72" (1829 mm) 38U | Gray | 22.6" (575 mm) | $1,013.78 | |
15212-103 | 84" (2134 mm) 45U | Gray | 22.6" (575 mm) | $1,046.26 | |
15212-108 | 108" (2740 mm) | Gray | 22.6" (575 mm) | $1,292.58 | |
15212-115 | 96" (2438 mm) 51U | Gray | 22.6" (575 mm) | $1,138.19 | |
15212-701 | 72" (1829 mm) 38U | Black | 22.6" (575 mm) | $965.50 |
Product Description
Adjustable ServerRack (ASR) provides a sturdy, cost-effective solution for supporting rack-mount network, computer server and data storage equipment in data centers, computer equipment rooms and other IT facilities. Features square-punched multi-mount style rails.
Key Features and Benefits
- Stability and strength of an enclosure in an open mounting system
- Provides easy access to equipment and cabling
- Quick assembly with one-piece top and bottom pan sets
- Easy to bay together to create multi-frame configurations
- Use with any CPI Cabling Section to manage cables
- Equipment mounting locations are marked on the mounting channels
- Square-punched mounting holes allow you to change equipment mounting hardware to meet the requirements of rack-mount server and data storage equipment
- Supports up to 2000lb (907.2 kg)
- UL Listed; File E227626; Category NWIN (US), NWIN7 (Canada) – Information Technology and Communications Equipment Cabinet, Enclosure and Rack
Product Information
Design Tools
Key Features of the Adjustable Server Rack
The Adjustable Server Rack delivers a sturdy, cost‑effective enclosure for network, server and storage equipment. Its square‑punched rails provide flexible mounting options across a range of devices. The design supports rapid assembly with single‑piece top and bottom pans, reducing installation time. The 4‑post construction offers superior stability, allowing the rack to support up to 2000 lb (907 kg) of equipment. Square‑punched mounting holes enable technicians to use a variety of hardware to meet specific server requirements. This adaptability is essential for both 45U rack height in mm configurations and smaller 38U layouts. Each frame can be bayed together to create multi‑frame systems, facilitating future expansion in hyperscale or enterprise data centers. The open mounting system ensures easy access to cables and components for maintenance and upgrades. Integrated cable‑management sections from CPI further simplify organization and airflow. The Adjustable Server Rack is UL Listed (File E227626) for both U.S. and Canadian markets, confirming compliance with rigorous safety standards. Its modular design aligns with CPI's commitment to rapid product customization and global availability. Customers benefit from a reliable platform that supports high‑performance computing and AI workloads. Overall, this adjustable server rack combines a 4‑post architecture, square‑punched rails, and robust load capacity to meet demanding data‑center environments. Its versatility supports various rack heights, including the popular 45U configuration measured precisely in millimeters. CPI's engineering expertise ensures the solution delivers durability, ease of use, and long‑term value.
