12730-E04

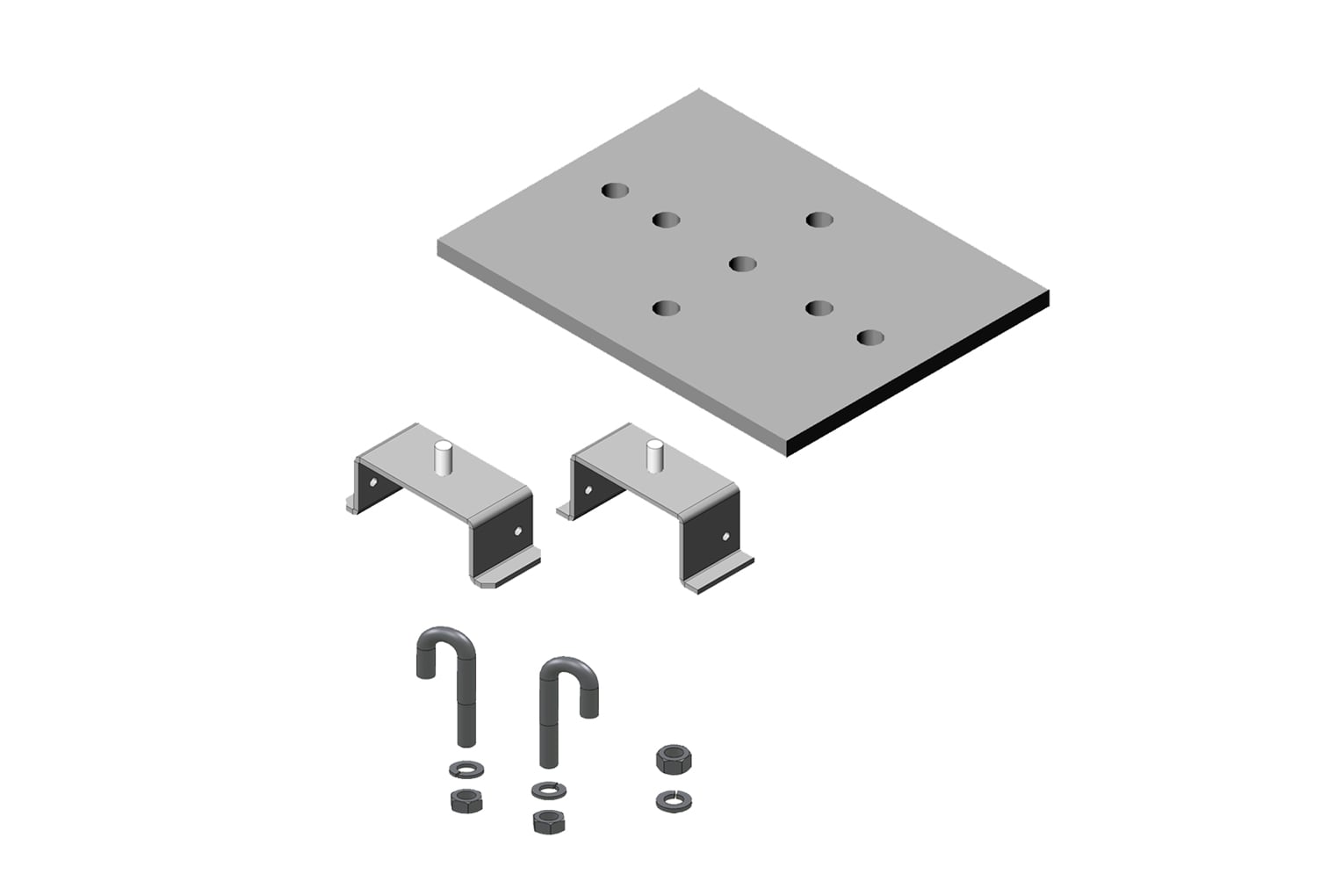

3" (80 mm) Channel Rack-To-Runway Mounting Plate with Bracket; for 4"W (100mm) Runway; Glacier White

MSRP $70.21
Runway WidthFor 4" (100 mm) Runway
ColorGlacier White
Width4" (102 mm)
Depth1.5" (38 mm)
Country Of OriginUS
BABA CompliantYes
Type3" (80 mm) Channel Rack-to-Runway Moutnig Plate with Bracket
Ship Width8" (20 cm)
Ship Length/Depth38" (965 mm)
Ship Height7" (18 cm)
Shipping Weight3 LB (1.36 kg)
Product Description

Secures Runway to the top of Universal Rack without intruding into mounting space. The combination of the flat plate and hat-shaped bracket form a clamp around the rack's top angles or top bars. Mounts parallel or perpendicular. For proper attachment on 6" runway, use top bars (13045 Series) rather than top angles. Installation Best Practices include Runway Elevation Kit (P.N 10506)

Key Features and Benefits
  • (1) mounting plate
  • (2) hat-shaped brackets
  • (2) J-Bolts, 5/16-18 x 2-1/4"
  • (3) hex nuts, 5/16-18
  • (3) split lock washers, 5/16"
