UA-40G8W-CE

UA-40G8W-CE - Thumbnail 1
UA-40G8W-CE - Thumbnail 2
UA-40G8W-CE - Thumbnail 3

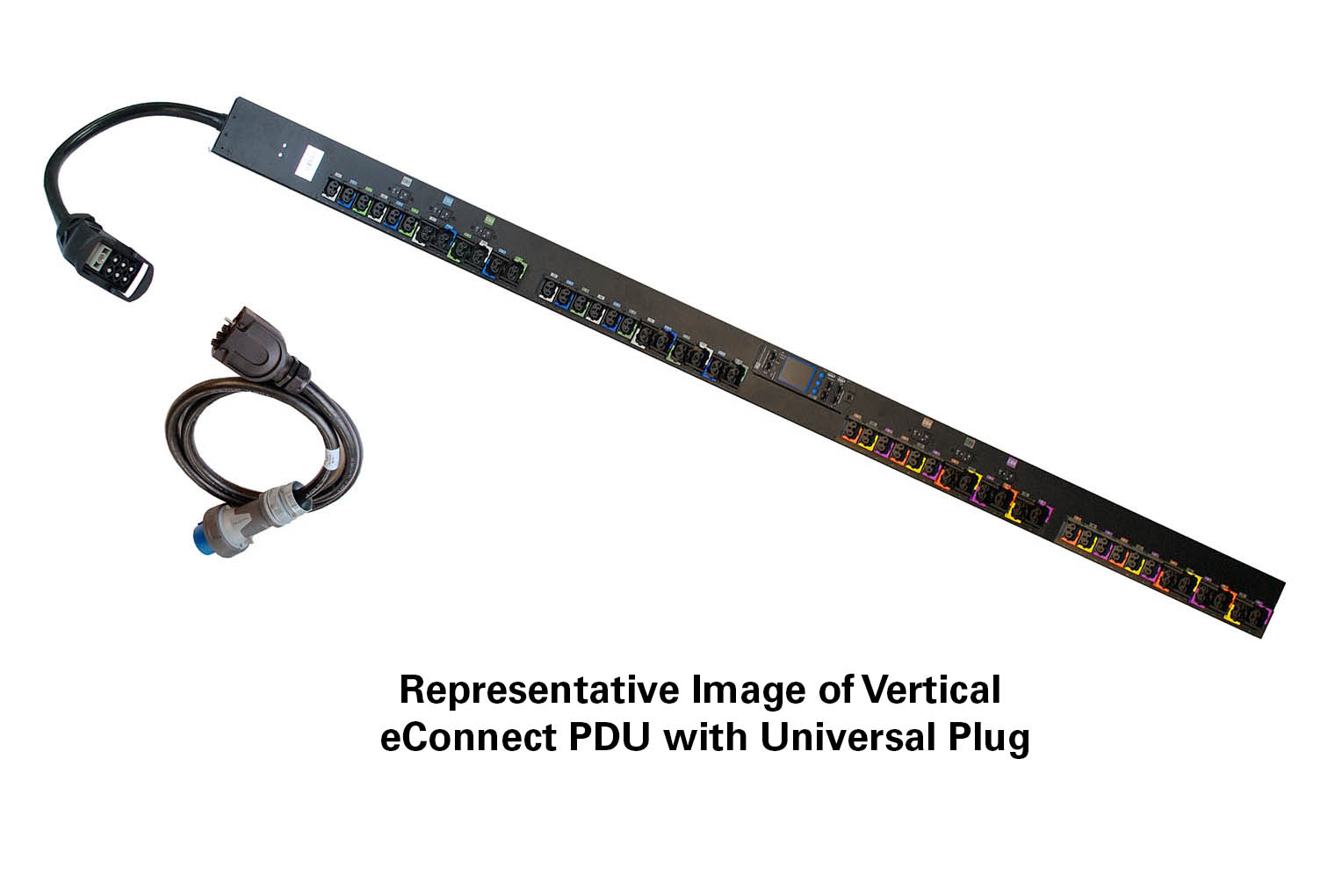

Monitored Pro PDU; Black; Vertical, for 42U & Higher Cabinets; Universal Input; Locking (18) C13/C15+(18) QuadLock Outlets; 17.2kW

MSRP $6,445.00

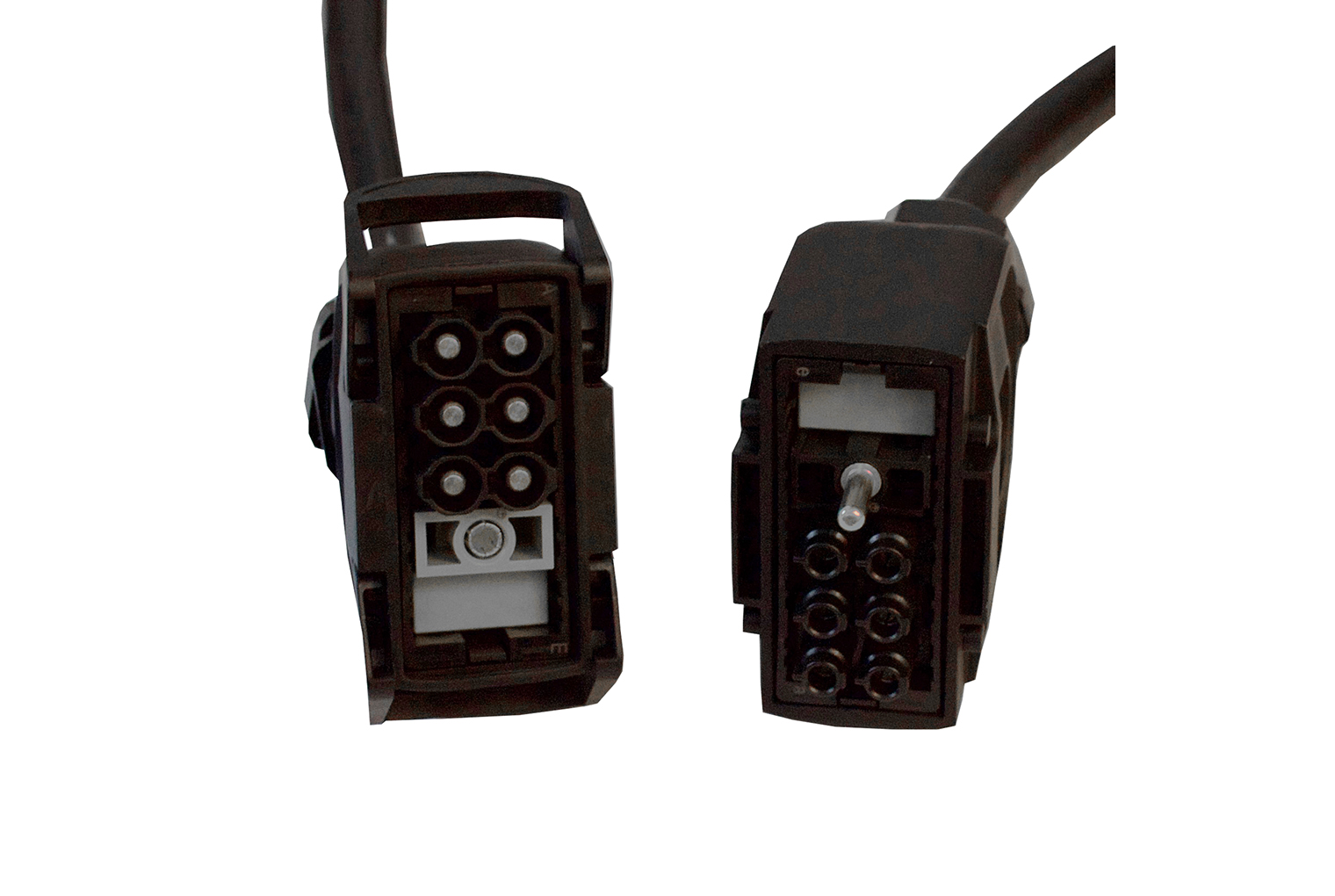

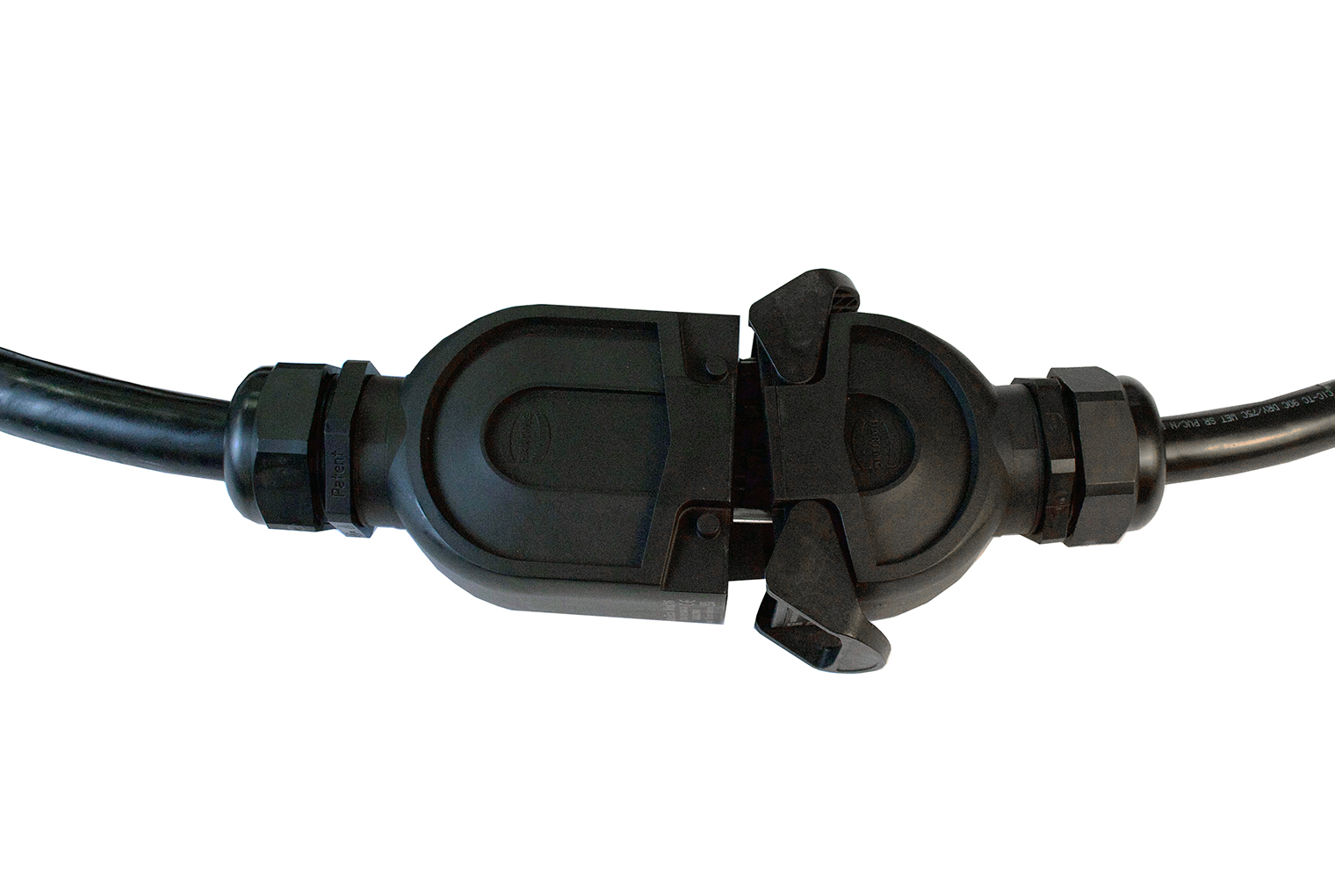

PlugUniversal Input Connector
Outlets(18) C13/C15 + (18) QuadLock
VoltsUniversal
PhaseSingle-Phase/Three-Phase
Input Current60A
kW Capacity17.2kW
Cabinet Compatibility42U or Higher
Color1 Black + 1 Glacier White
Height71.9" (1825.7 Millimeters)
Width2.2" (55 Millimeters)
Depth2.8" (70.1 Millimeters)
CertificationsVarious
Country Of OriginUS
MaterialSteel
BABA CompliantNo
TypeeConnect
Shipping Information
Product Description

Monitored Pro eConnect® PDUs provide remote power monitoring down to the outlet level, making it possible to obtain power consumption for each piece of equipment.

Key Features and Benefits
  • Reduced Networking Costs and Complexity – Secure Array® allows the use of a single IP address for up to 48 connected PDUs (32 when electronic locks are integrated). Second IP address for the entire array provides failover capability.
  • Resistance to High Temperature – Market-leading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles.
  • Simplified Load Balancing – Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management.
  • No Accidental Disconnections – Patented, low-profile locking outlets prevent accidental disconnections without requiring special cords.
  • Easy Identification of Failover Unit – Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit.
  • Electronic Lock Integration – Patented technology seamlessly integrates PDU, environmental sensors and electronic locks into a single hardware and software solution.
  • Gigabit Ethernet – Ensures compatibility with enterprise routers and switches.
  • Latest UL Compliance – Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union.
  • Cabinet Preinstallation – Complete ecosystem ships ready for IT equipment integration, and saves deployment time and reduces packaging waste.
  • High Power Configurations – Configurations supporting up to 100A Input provide an optimized solution for GPU & AI based applications. 30A branch circuit breakers provide flexibility when plugging high power IT equipment.
  • Universal Input – A single PDU design with detachable input cords supports global AC power standards, streamlining procurement, reducing inventory complexity, accelerating deployment, and ensuring reliable high-power performance across worldwide data centers
