Oberon Hi-Bar Surface-Mount Enclosures 1019
















Product Description
Oberon’s Model 1019-SM is a non-metallic, surface mounted cable manager, horizontal connection point, and Wi-Fi router/access point enclosure. It is designed to organize, protect, and conceal equipment and wiring, especially in small or home office applications. The 1019-SM features a simple snap-on cover and movable cable organizer pegs to position equipment and organize cabling. The 1019-SM features slots for cable ingress/egress (3 per side) that can also be used to attach TIA 569-B compliant furniture faceplates with modular jacks, to facilitate cable termination for use as a Multi-User Telecommunications Outlet Assembly (MUTOA) in open office environments. Additionally, the 1019-SM can be surface mounted over a duplex electrical outlet and used to store, organize and hide connections to a power strip.
Key Features and Benefits
- Surface mount to wall to conceal and manage cabling

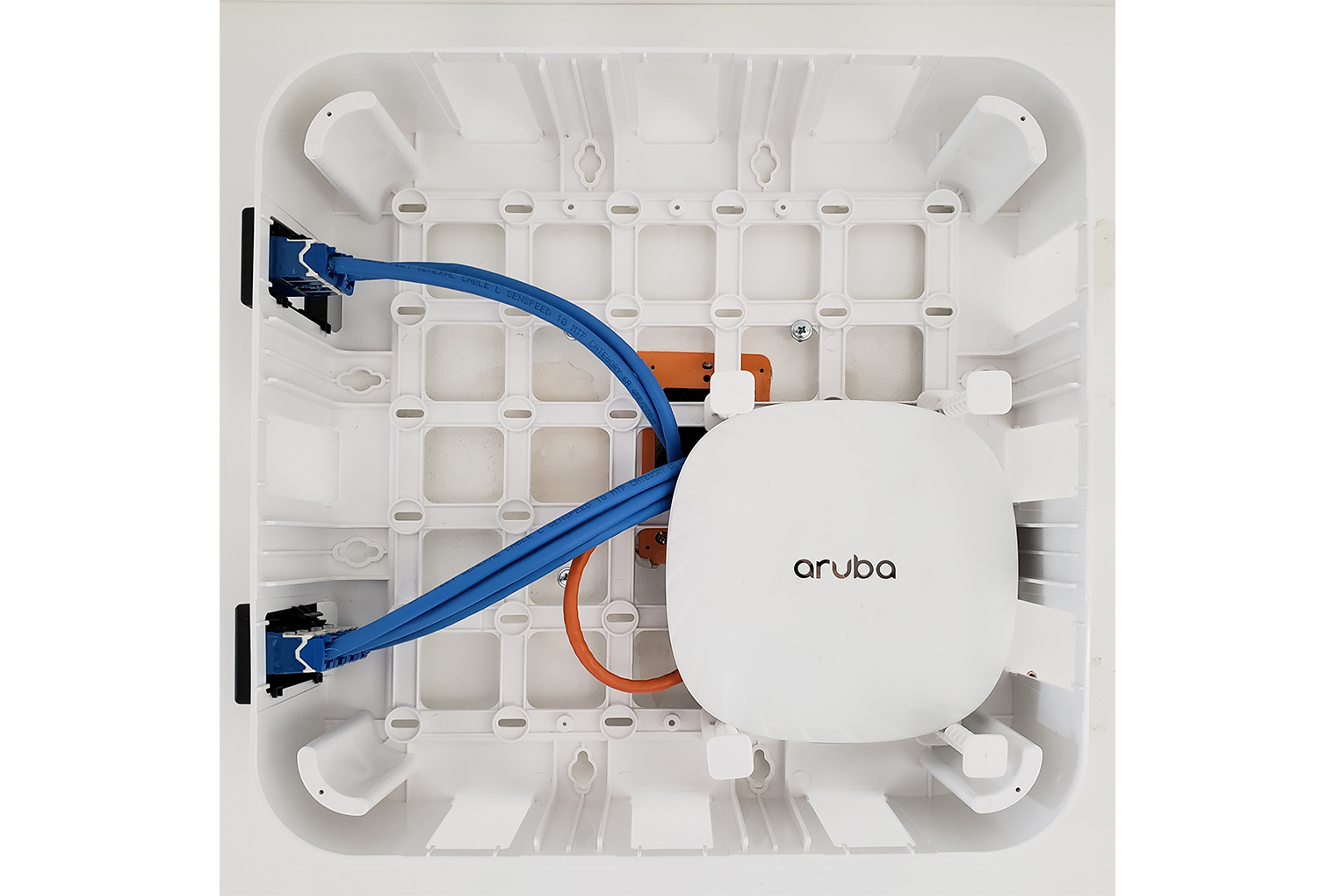

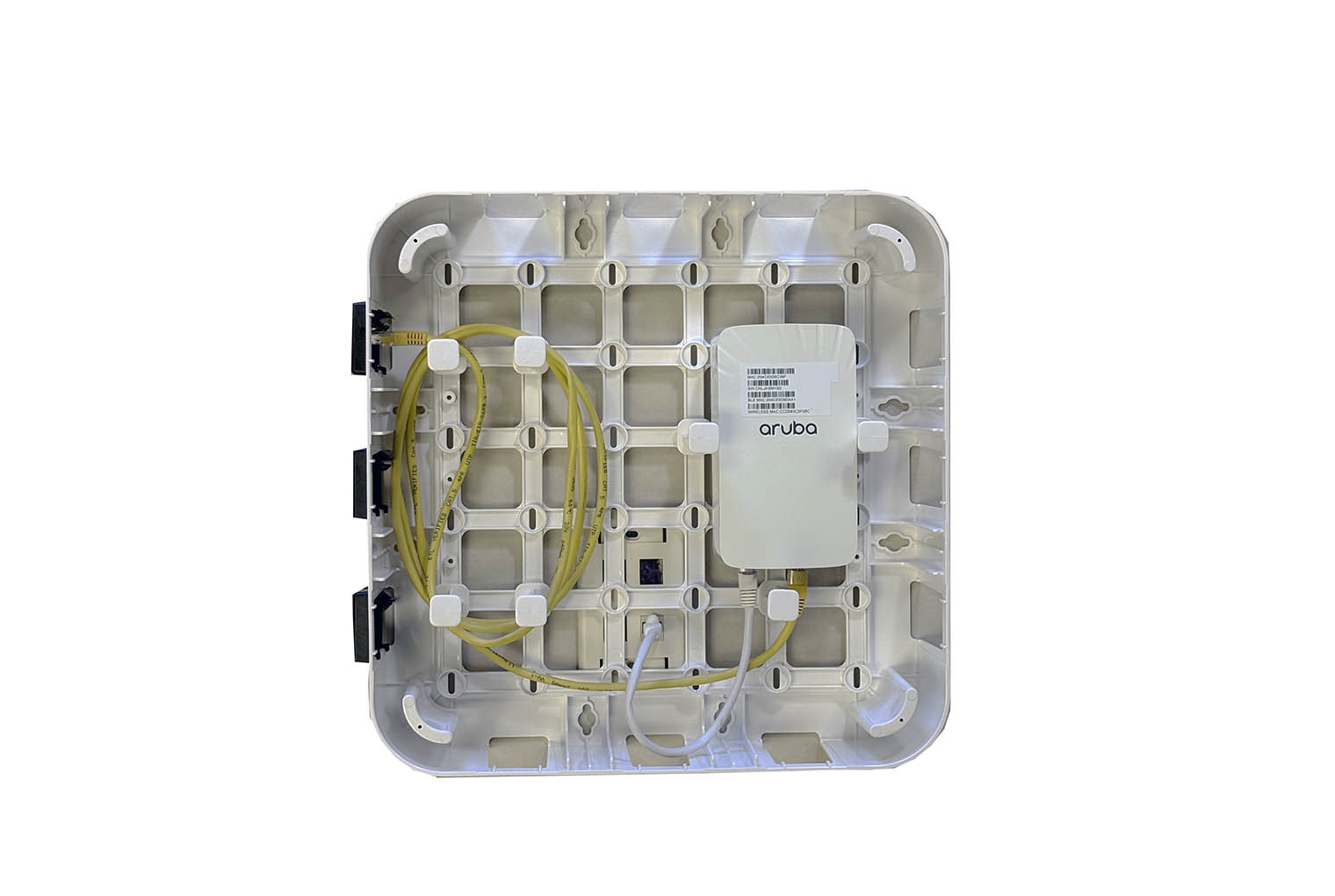

- Large enough to house a Wi-Fi router/access point for a small office
- Side openings allow easy ingress/egress of cabling to nearby equipment

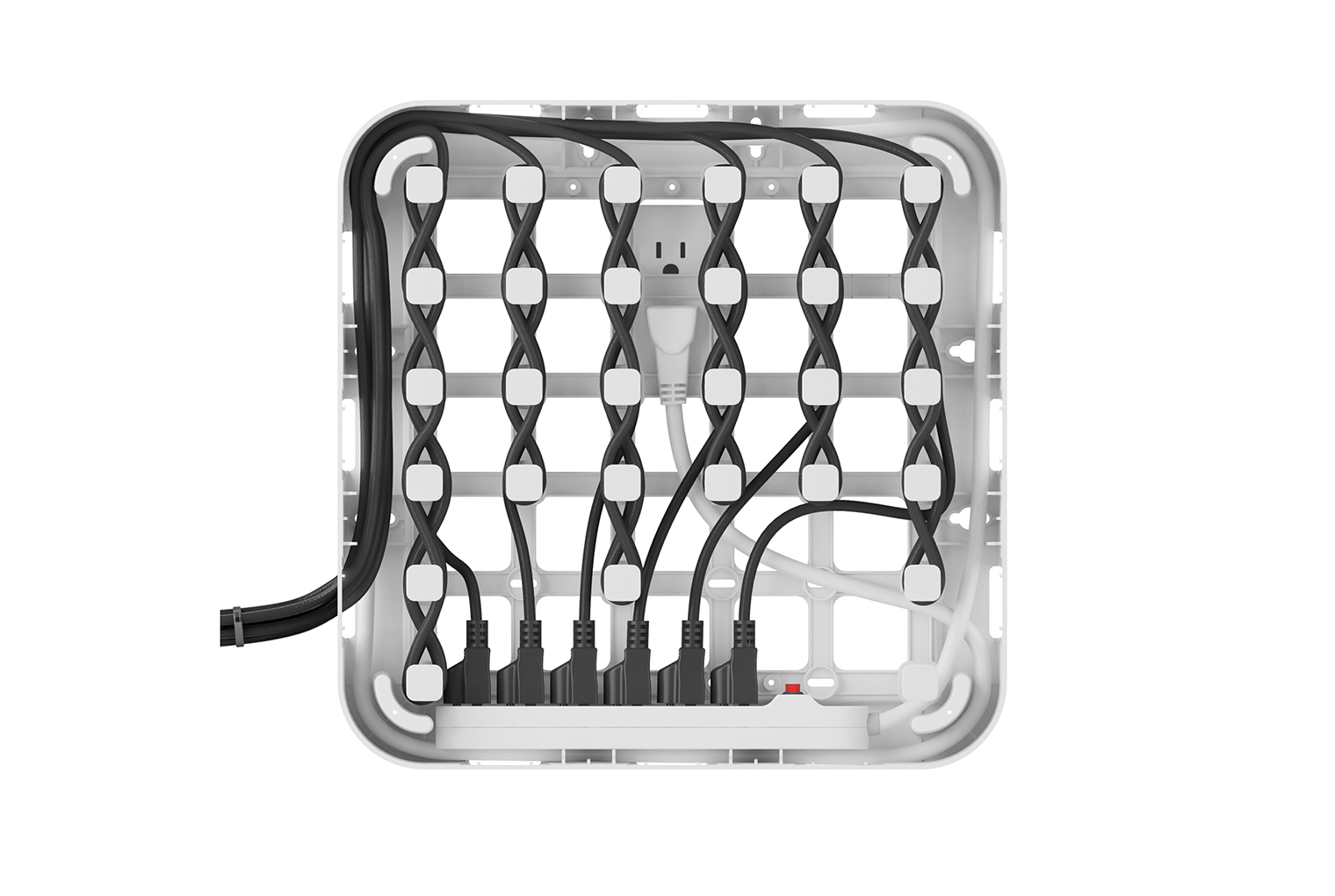

- Place over an electrical outlet to create a space to store a power strip and manage power cords
- Use side openings to surface mount TIA 569-B compliant furniture faceplates with modular jacks to use as a consolidation point and MUTOA
- Movable cable organizer pegs for cable management; tool-less install, twist to secure/remove
- Snap-on cover with concealed attachment points can optionally be screwed on for added security
Technical Specifications
- Design: Surface mounted cable manager, horizontal connection point and Wi-Fi router/ access point enclosure. Conceal, protect, and organize office cabling and equipment. Large enough for most vendors Wi-Fi routers
- Performance: Ventilated, paintable, impact resistant plastic enclosure is virtually transparent to wireless signals
- Construction: UL 94-5VB Flame retardant white PC/ABS plastic
- Size: Backbox 13.5” x 13.5” x 3.75” in. (343 mm x 343 mm x 95 mm). Maximum useable internal dimensions: 12.75 x 12.75 in. (323.9 x 323.9 mm)
- Installation: Surface mount with included hardware on walls or behind desks to manage and store cabling and equipment
Product Includes:
- (1) Back box
- (1) Tamper Resistant Snap-on Cover
- (36) Movable Cable Organizer Pegs
- (4) Wall Anchors
- (4) Wall Mount Screws
- Installation Instructions
