Oberon In-Plane Recessed Mounts 1039

11 Options
Oberon In-Plane Recessed Mounts 1039 - Thumbnail 1
Oberon In-Plane Recessed Mounts 1039 - Thumbnail 2
Oberon In-Plane Recessed Mounts 1039 - Thumbnail 3
Oberon In-Plane Recessed Mounts 1039 - Thumbnail 4
Oberon In-Plane Recessed Mounts 1039 - Thumbnail 5
Oberon In-Plane Recessed Mounts 1039 - Thumbnail 6
Oberon In-Plane Recessed Mounts 1039 - Thumbnail 7
Oberon In-Plane Recessed Mounts 1039 - Thumbnail 8
Customize Your Product
Access Point Vendor
Explore Sizes & Options
Product Guide
Filter
Clear All
Add to Cart Add
1039-ARAP515
View Details
Aruba
Aruba AP-515
Contact us for pricing
1039-ARAP535
View Details
Aruba
Aruba AP-535
Contact us for pricing
1039-ARAP725
View Details
Aruba
Aruba AP-725
Contact us for pricing
1039-CCOAP3800
View Details
Cisco
Cisco 3802i
Contact us for pricing
1039-COAP9120
View Details
Cisco
Cisco C9120AXI
Contact us for pricing
1039-COAP9130
View Details
Cisco
Cisco C9130AXI
Contact us for pricing
1039-COAP9136
View Details
Cisco
Cisco C9136I
Contact us for pricing
1039-CW9166
View Details
Cisco
CW9166i, CW9164i
Contact us for pricing
1039-CW9176
View Details
Cisco
Cisco CW9176I
Contact us for pricing
1039-CW9178
View Details
Cisco
Cisco CW9178I
Contact us for pricing
Product Description

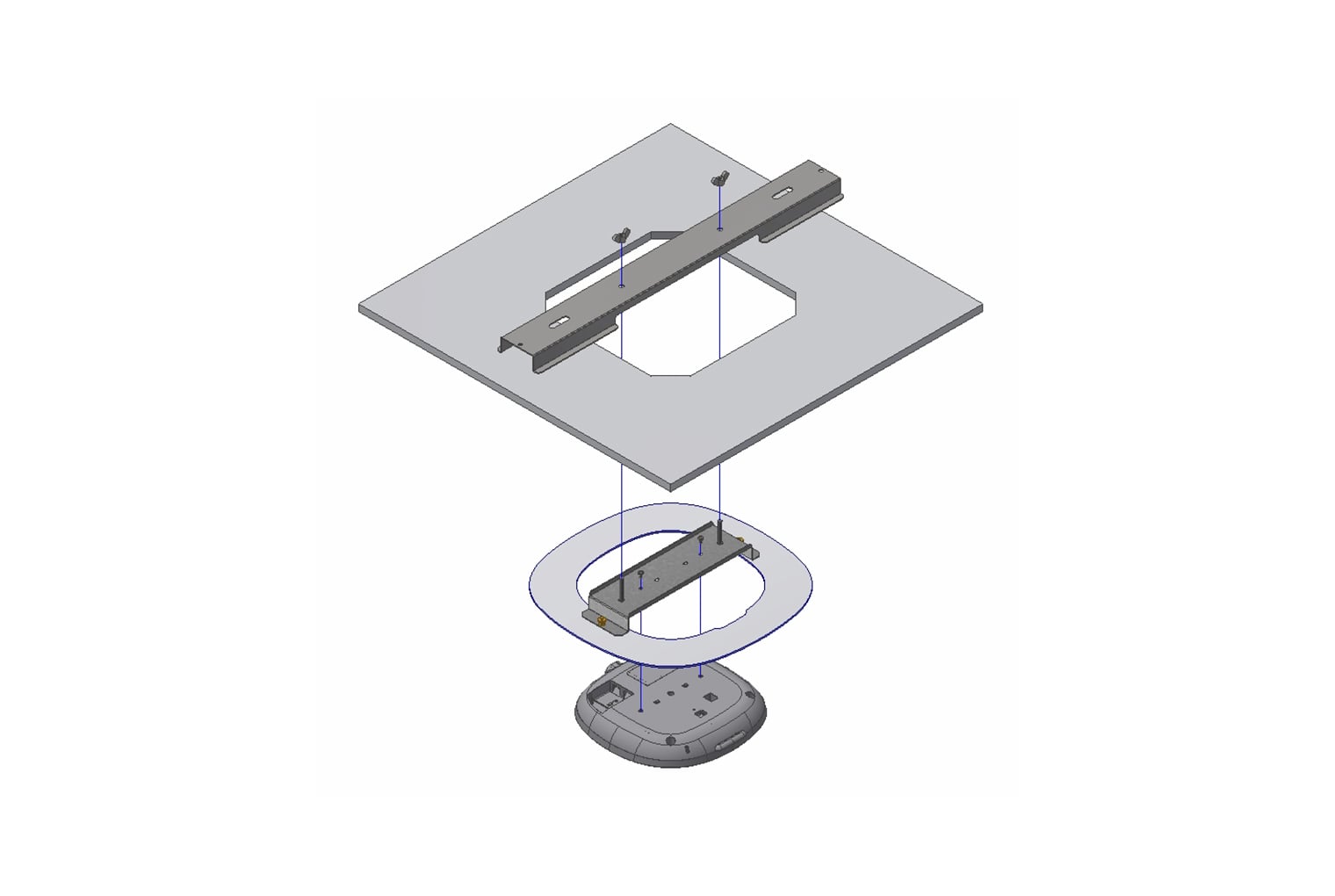

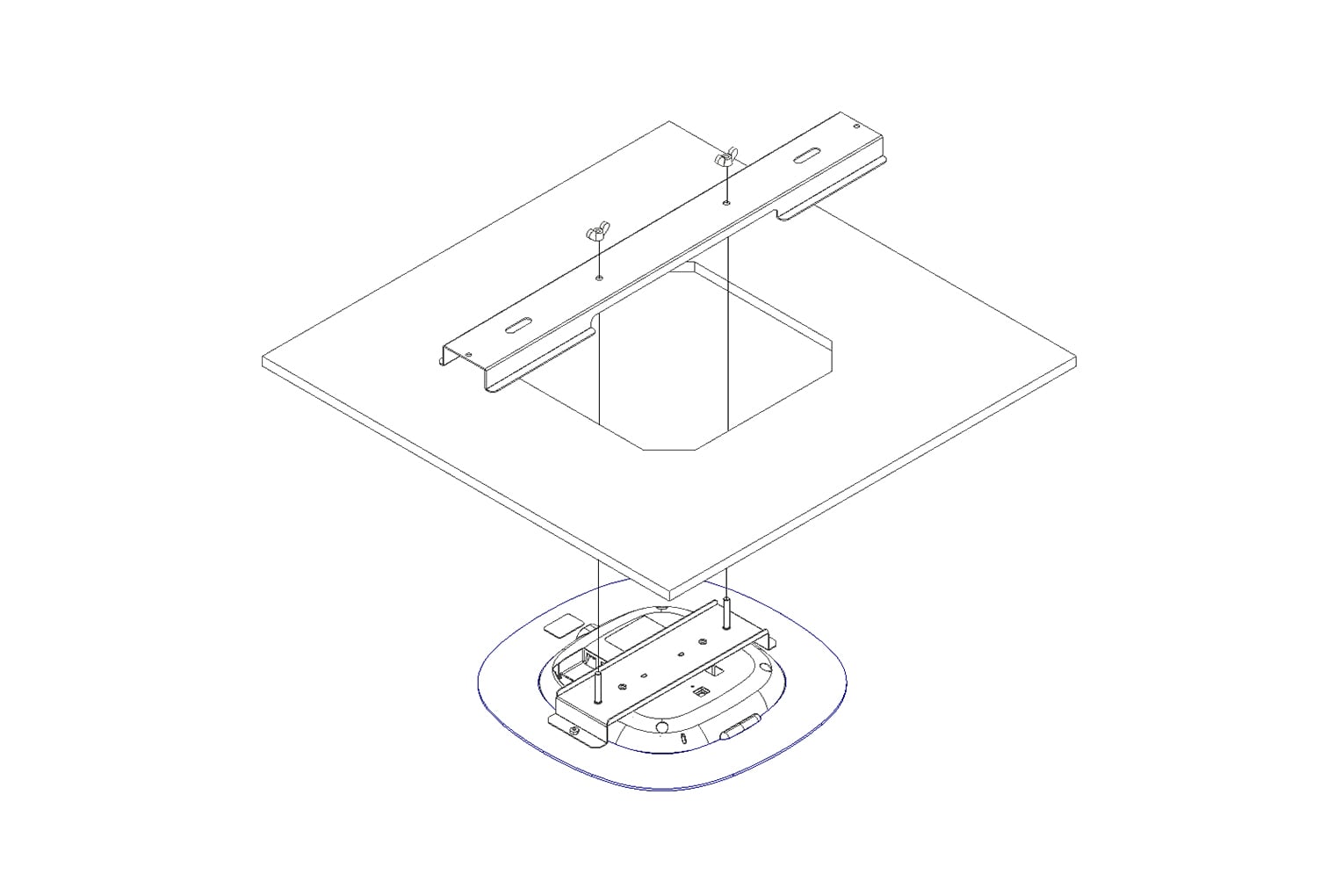

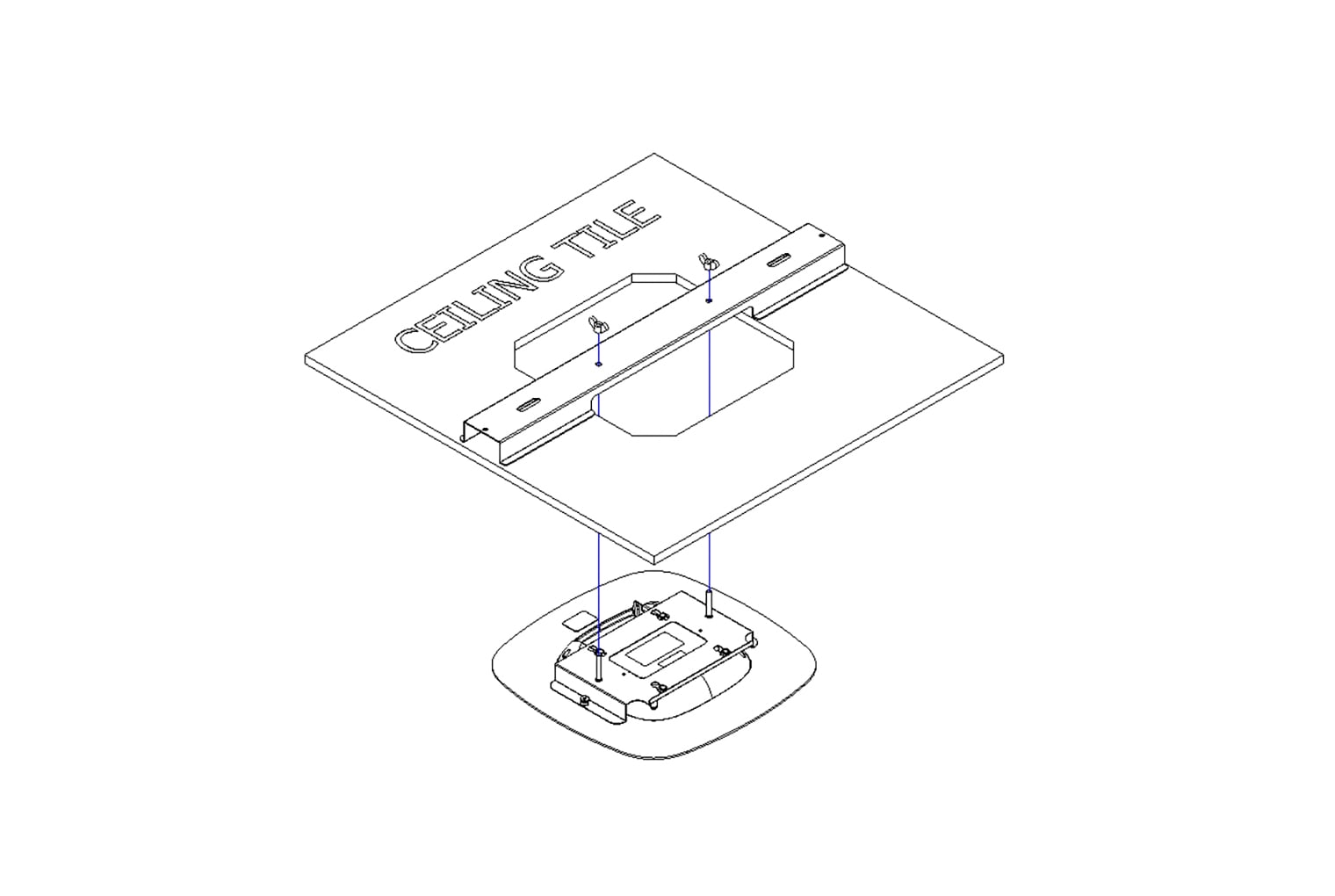

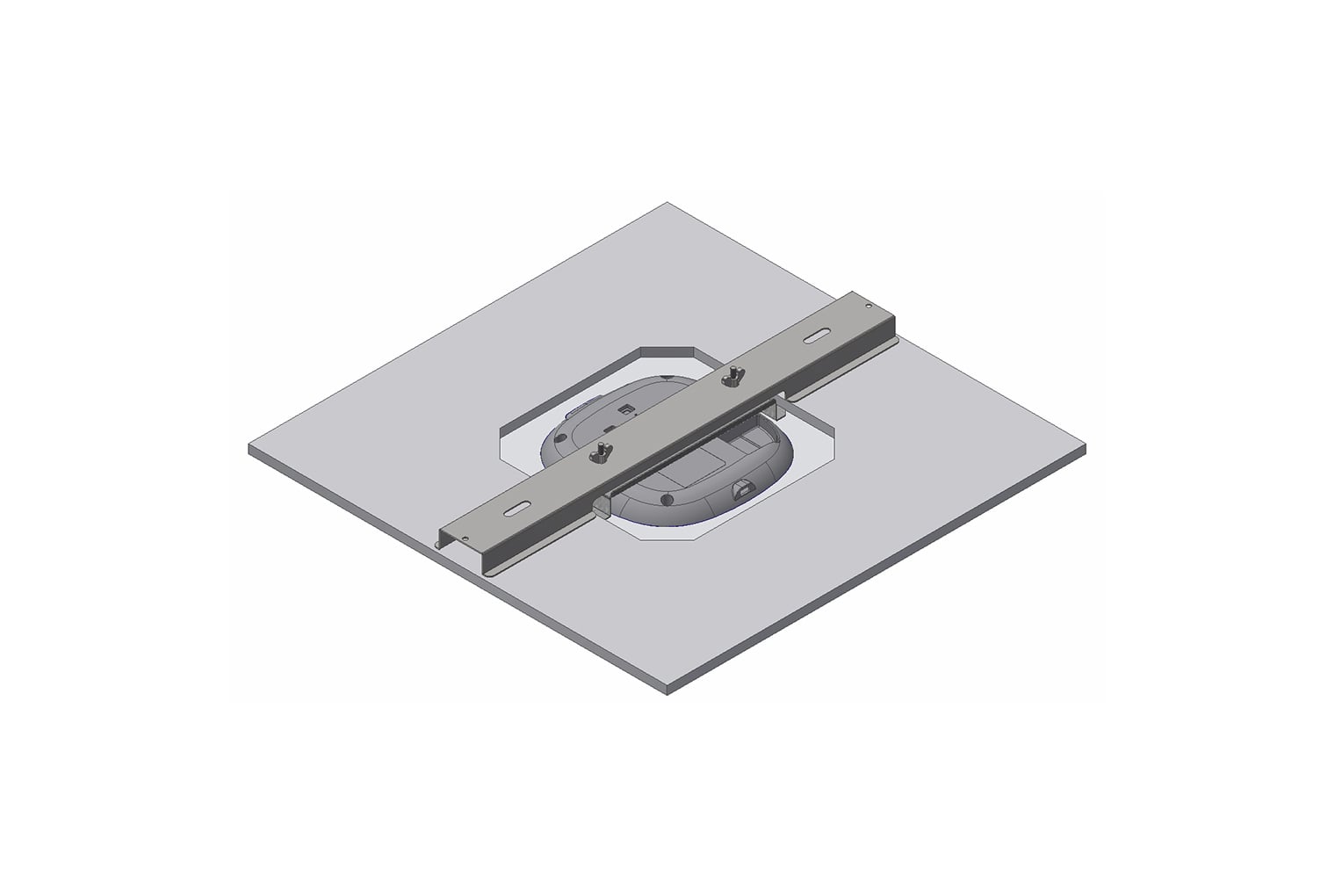

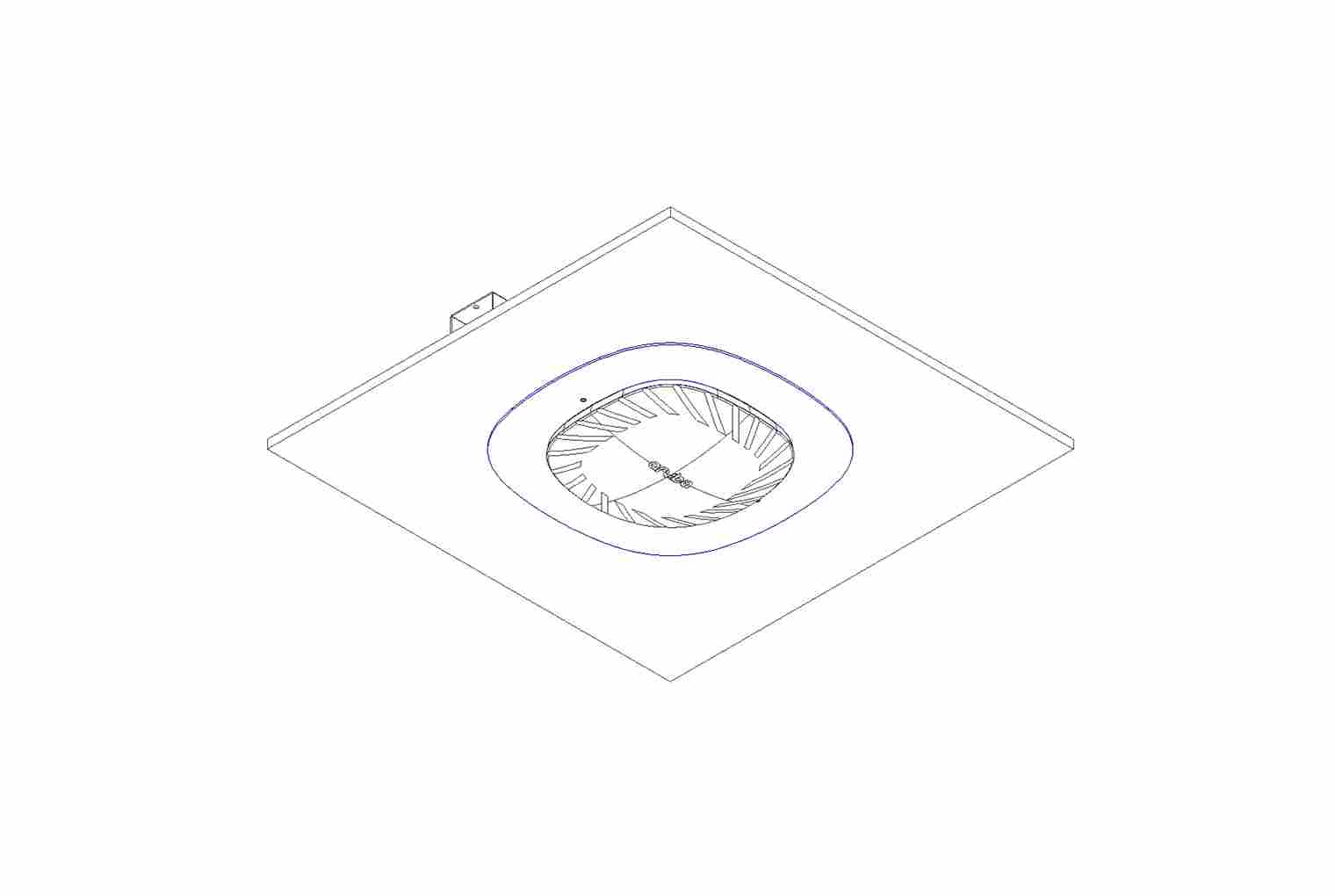

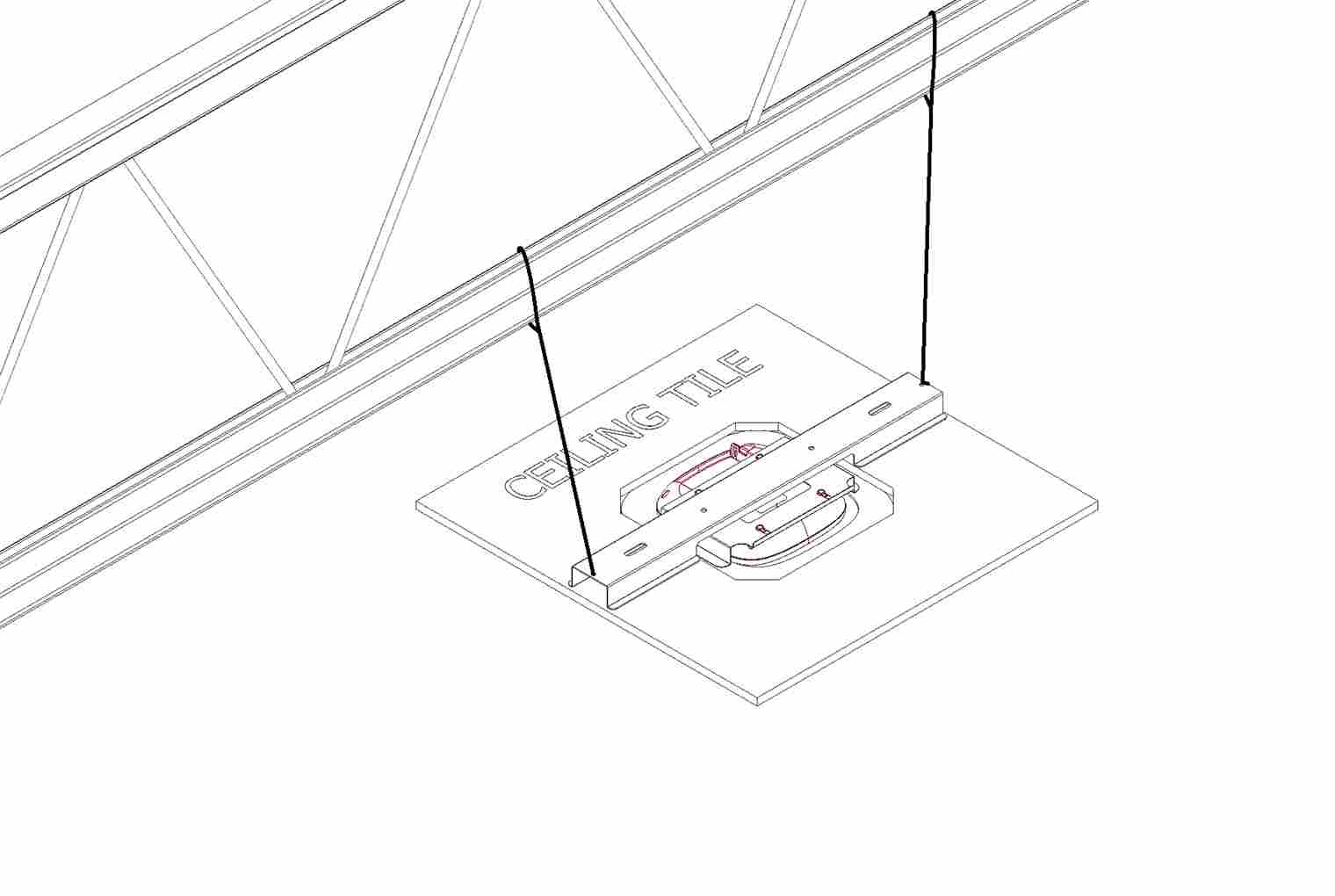

Suspended ceiling mounting kit for most vendors' Wi-Fi APs. A cutout is made in the ceiling tile, the tile bridge is placed above the ceiling tile, and the AP is attached to the white trim. The AP and trim assembly is then drawn into the tile bridge with a wing nut, with only the front face of the AP exposed for optimal wireless coverage.

Key Features and Benefits
  • Economical and easy to install
  • Conveniently and quickly install APs and antennas from most vendors into 24 in. wide suspended ceiling tiles

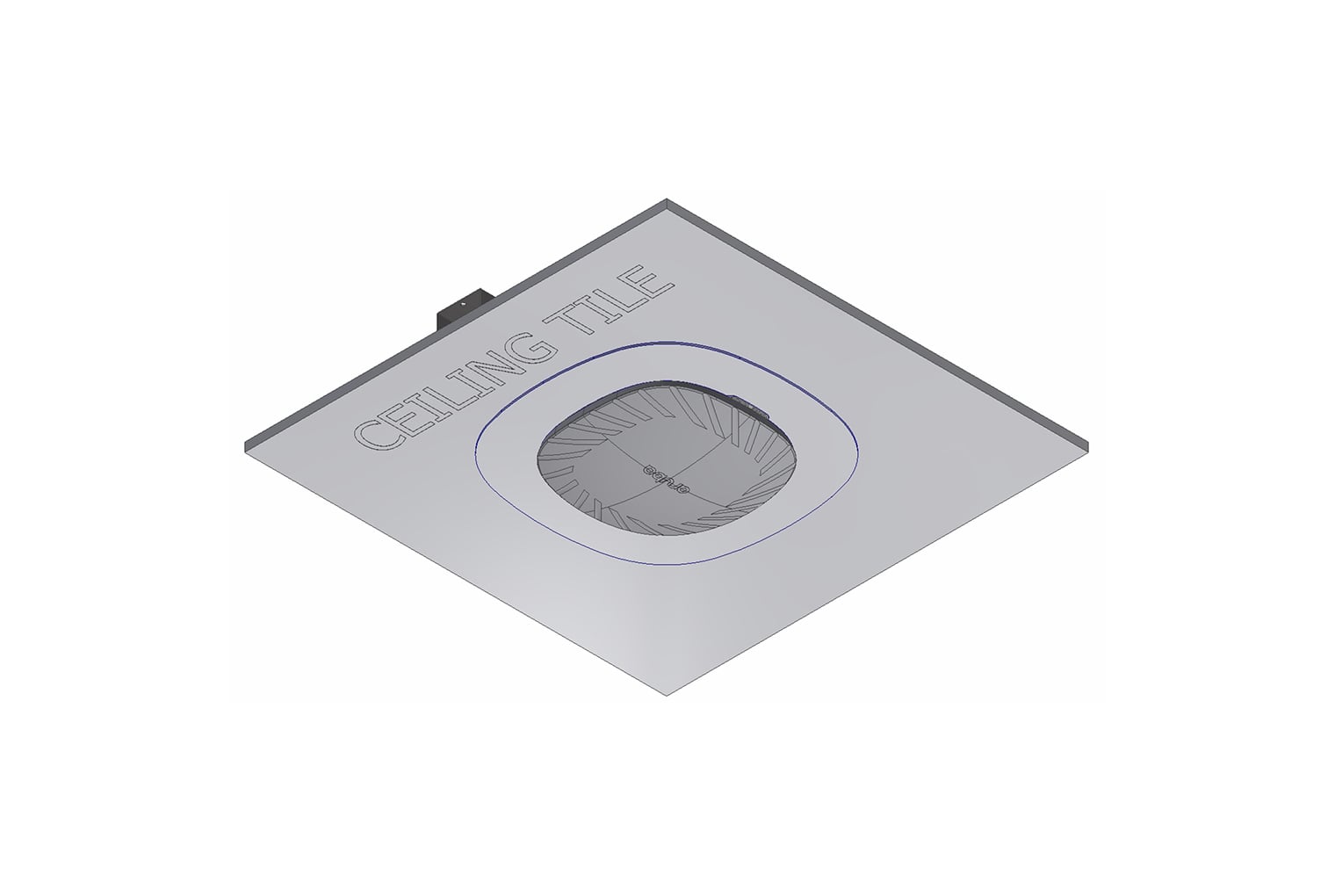

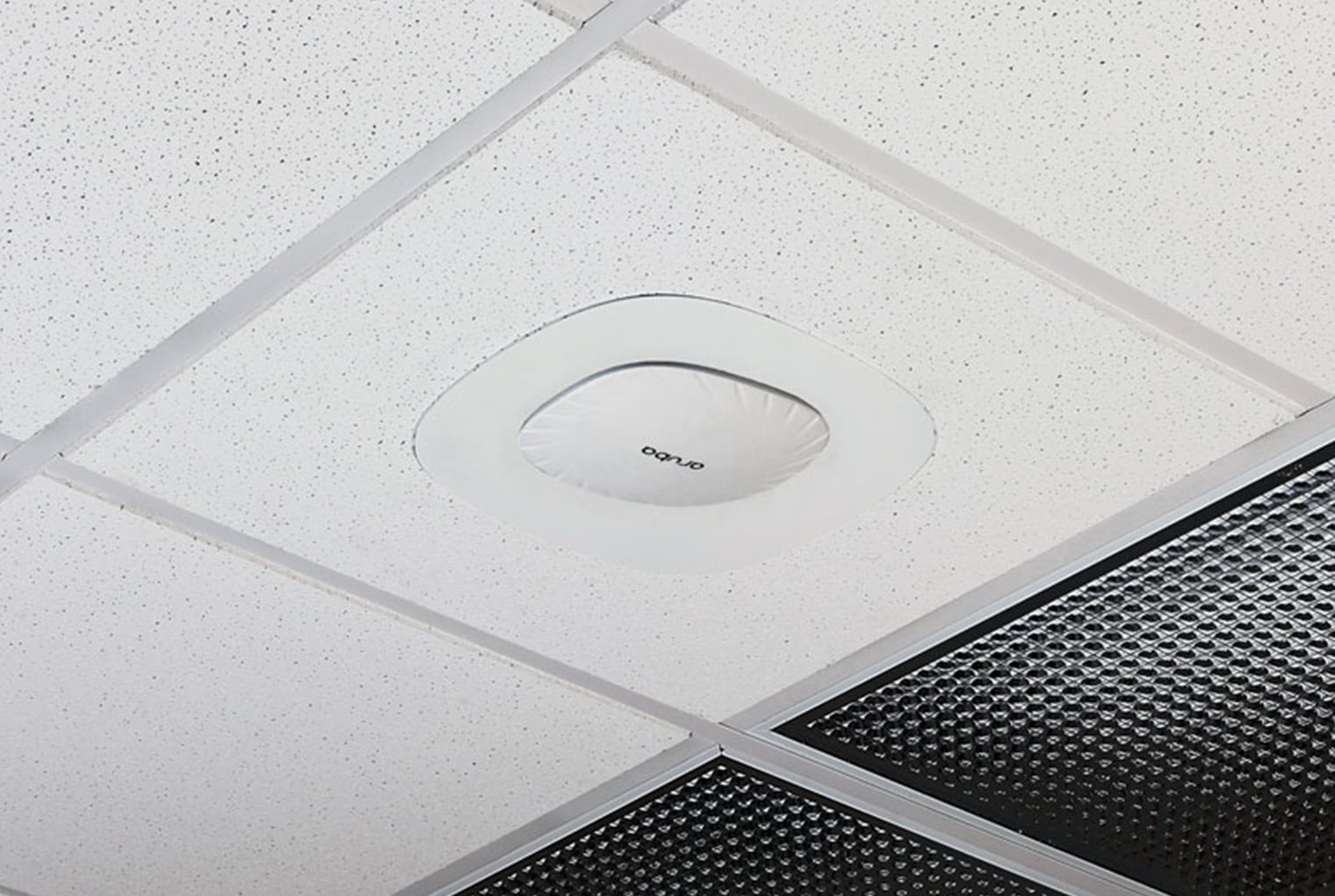

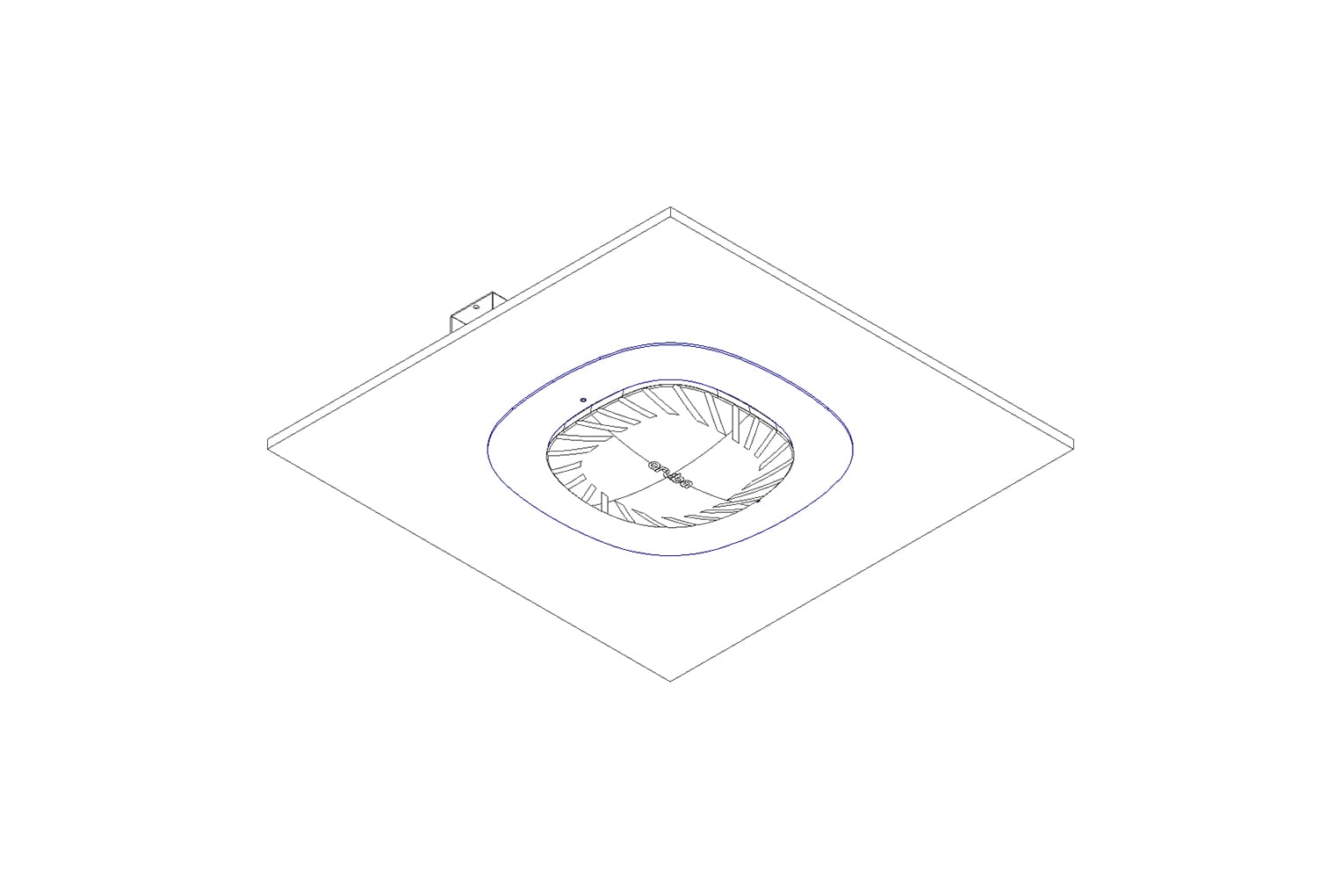

  • AP mounts flush to the ceiling, providing an aesthetic, professionally installed appearance
  • 16 ga. galvanized steel tile bridge and support wire prevent ceiling tile sag or cracking
Technical Specifications
  • Design: Recessed installation kit for installing Wi-Fi APs in 24 in. wide suspended ceiling tiles. Comprised of steel ceiling tile bridge, support wire, AP bracket, and trim for AP from leading vendors
  • Performance: Designed to meet NEC300-22 and 300-23 for plenum installations
  • Wi-Fi AP trim attaches with wing nuts
  • Construction: 16 ga. galvanized steel tile bridge, all metal bracket and trim

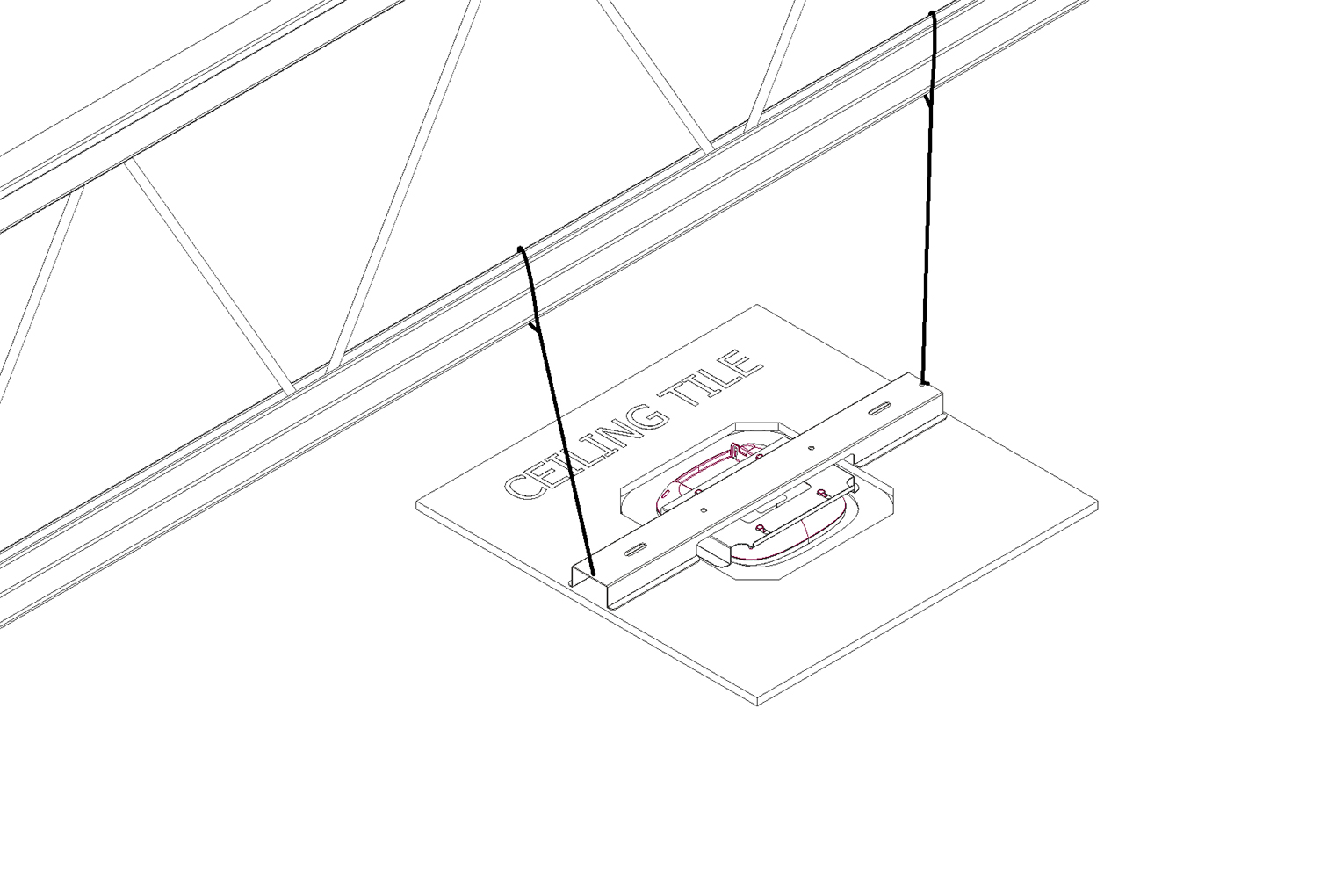

  • Use included support wire to attach to building structure
  • Size: 23.375 x 3 x 3 in. (594 x 76 x 76mm)
  • Suitable for both North American and European (metric) sized ceilings
Product Includes:
  • (1) Galvanized steel ceiling tile bridge
  • (1) AP specific bracket and trim
  • (2) Grid Wires
  • Required Hardware
  • Installation instructions
